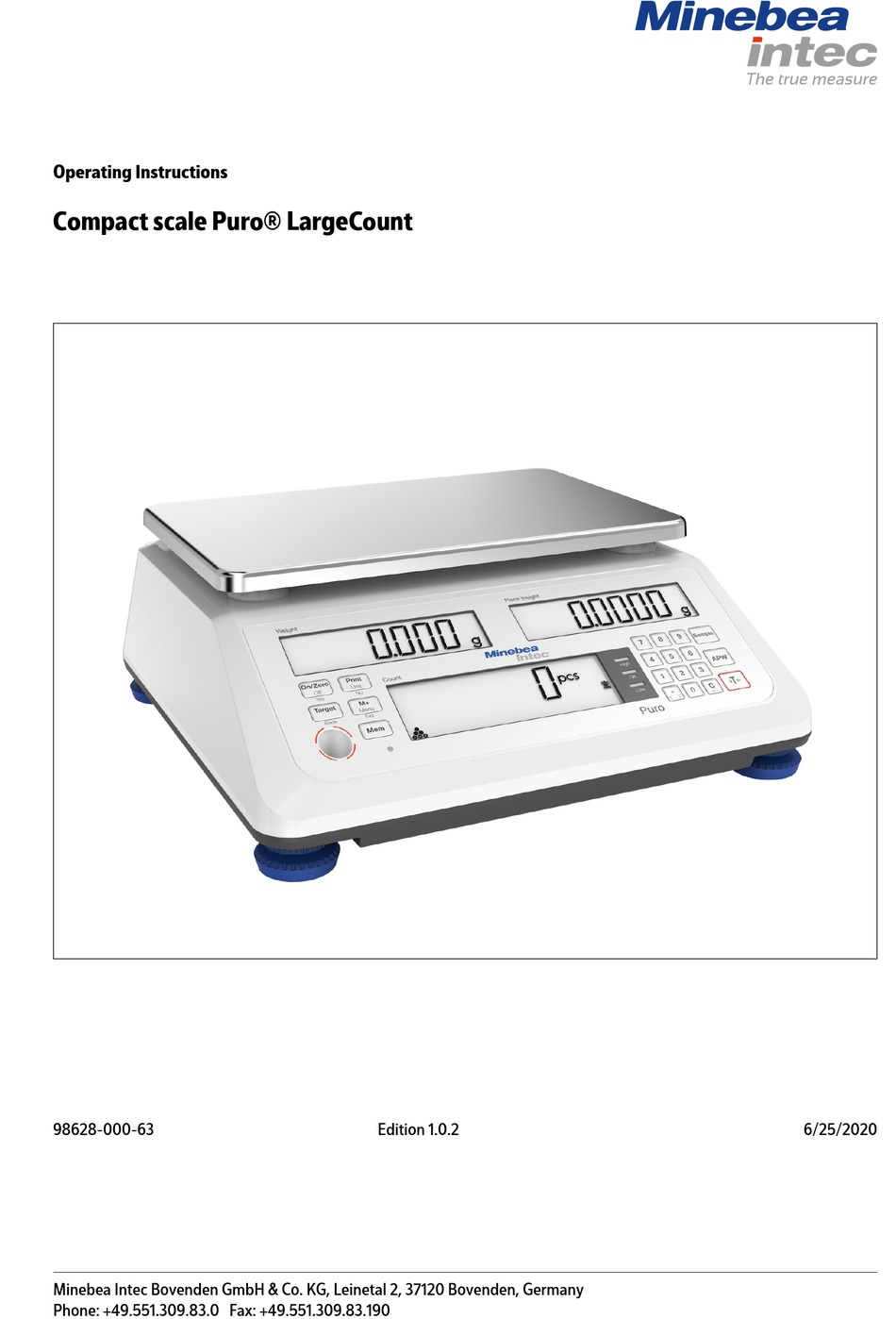

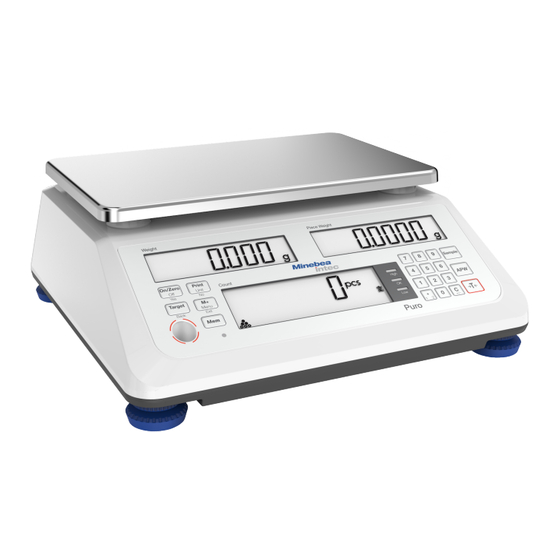

- Page 1 Operating Instructions Compact scale Puro® LargeCount 98628-000-63 Edition 1.0.2 6/25/2020 Minebea Intec Bovenden GmbH & Co. KG, Leinetal 2, 37120 Bovenden, Germany Phone: +49.551.309.83.0 Fax: +49.551.309.83.190...
- Page 2 Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained and qualified personnel. In correspondence concerning this product, the type, name, and release number/serial number as well as all license numbers relating to the product have to be cited.
-
Page 3: Table Of Contents
Display and operating elements ..........................12 4.1.1 Overview................................12 4.1.2 Display elements.............................13 4.1.3 Operating elements............................14 Operating ............................16 Basic functions ................................16 5.1.1 Switching on the device ..........................16 5.1.2 Switching off the device..........................16 5.1.3 Adjusting the GEO setting..........................16 Minebea Intec EN-1... - Page 4 Product memory ............................63 5.5.3 Menu settings: Print ............................63 PC output ...................................64 5.6.1 SBI interface..............................64 Maintenance/repairs/cleaning......................66 Repairs..................................66 Cleaning ..................................66 6.2.1 Instructions for cleaning ..........................66 6.2.2 Cleaning agents..............................66 Waste disposal policy ......................... 67 Error correction ..........................68 Service information ..............................69 EN-2 Minebea Intec...
- Page 5 Compact scale Puro® LargeCount Table of contents Technical data ............................ 70 Specification ................................70 Accessories .................................71 Dimensions ................................72 Appendix ............................75 10.1 Printouts ..................................75 10.2 FCC notice .................................. 77 Minebea Intec EN-3...
-
Page 6: Introduction
WARNING indicates that death or severe, irreversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. CAUTION Warning of personal injury. CAUTION indicates that minor, reversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. EN-4 Minebea Intec... - Page 7 Warning of damage to property and/or the environment. NOTICE indicates that damage to property and/or the environment may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. Note: User tips, useful information, and notes. Minebea Intec EN-5...
-
Page 8: Safety Instructions
If there are grounds for rejection of the goods, a claim must be filed with the carrier immediately. A Minebea Intec sales or service organization must also be notified. Visit our website http://www.puroscales.com or contact your dealer. -
Page 9: Storage And Transport Conditions
Do not unnecessarily subject the device to extreme temperatures, corrosive chemical vapors, moisture, shocks, and vibrations. Extreme electromagnetic influences can affect the display value. Once the disturbance has ceased, the product can be used again as intended. Minebea Intec EN-7... -
Page 10: Device Installation
Keep the original packaging in case the device needs to be returned. Remove all cables before sending. 3.1.4 Checking the equipment supplied 1 scale 1 load plate 1 USB power supply with cable Safety instructions and QR code for access to the complete documentation EN-8 Minebea Intec... -
Page 11: Leveling The Weighing Platform
The scale can be used during the charging process; the battery is protected against excess charging. When the device is switched on, the battery status LED illuminates in red while the battery is charging, and it goes green when the battery is fully charged. Minebea Intec EN-9... -
Page 12: Connecting A Printer
Battery not full Disconnect Switched off Charge status of the battery Battery full Disconnect Switched off Battery full 3.2.2 Connecting a printer A printer can be connected via the printer port on the underside of the device. EN-10 Minebea Intec... -
Page 13: Connecting A Scanner
Not assigned Not assigned Supply voltage+ Supply voltage- Sense+ Signal+ Signal- Sense- The A/D converter must then be configured and a two-point calibration carried out. For more information about the second weighing platform, see Chapters 5.1.10 5.3.4.9. Minebea Intec EN-11... -
Page 14: Device Description
Count Unit Sample Target High Menu Display-Count Back Exit Puro Control panel Weight Piece Weight On/Zero Print Count Unit Sample Target High Menu Back Exit Puro Description Display elements, see Chapter 4.1.2. Operating elements, see Chapter 4.1.3. EN-12 Minebea Intec... -
Page 15: Display Elements
Average sample weight too low reference optimization Sample weight too low Two scales are active Number of the active scale Data transmission active Weight unit Battery charging Warning icon Printer icon Net, preset, tare value, gross Item (value in items) Minebea Intec EN-13... -
Page 16: Operating Elements
Write into the totalizing memory or exit the Call up the user entry process. menu Start product defini- Save or load a product tion Sample Adopt quantity of the reference weights and calculate the sample weight Average sample weight Adopt sample weight EN-14 Minebea Intec... - Page 17 Discard the current setting in the display and switch to the next availa- ble setting Switch to the next menu or item/display the next value Back Switch to the previous menu items/display the previous value Exit Exit the user menu Cancel the ongoing calibration Minebea Intec EN-15...
-
Page 18: Operating
The other displays are dark. Then the device switches off and all displays are dark. This key is active in ALL application and menu statuses. 5.1.3 Adjusting the GEO setting Adjust the GEO setting according to the location in order to guarantee accurate weighing results. See Chapter 5.4.3. EN-16 Minebea Intec... -
Page 19: Display Functions
Each scale has a separate serial number with 13 characters. Number concept: Serial number for scale 1: W1 38457989 Serial number for scale 2: W2 38457989 The following is printed: Minebea Intec EN-17... -
Page 20: Application Programs
, 47 Stable weight value in the "Weight" display: Weight 5.2.2.2 Set tare To tare, briefly press the key when there is a load on the weighing pan. The icon [NET] is displayed in the "Weight" display. EN-18 Minebea Intec... - Page 21 The display of a weight value can be switched between various weight units. Pressing and holding the key changes the displayed unit. Possible units are: Gram [g], Kilogram [kg], Pound [lb], Ounce [oz], Pound-ounce [l:o]. Only units that have been activated in the menu can be changed. Minebea Intec EN-19...
-
Page 22: Counting Application
The device starts with the Totalizing application activated. Weight Counting is uninitialized Weight Counting is initialized 5.2.3.1 Initializing the Counting application Initialization with a known reference quantity (see Chapter 5.2.3.1.1) Initialization with a known sample weight (see Chapter 5.2.3.1.2) EN-20 Minebea Intec... - Page 23 The newly adopted sample weight is displayed in the "PW" display, and the actually calculated number of parts is displayed in the "Count" display. 5.2.3.2 Performing Counting (without check weighing) Automatic reference optimization (see Chapter 5.2.3.2.1). If a sample weight is initialized, it is displayed in the "PW" display. Minebea Intec EN-21...
- Page 24 The automatic optimization is not carried out on scale 2. 5.2.3.3 Printouts (without checking) Normal printout: Printout Description 441 pcs Positive value - 41 pcs Negative value MODE: COUNT Activated application WREF 4.15431 oz Sample weight, same value as that displayed in the "PW" display EN-22 Minebea Intec...
-
Page 25: Checking Application
Pressing and holding the key will generate a minus algebraic sign in the entry mode in the "Count" display. Pressing and holding the (Exit) key will stop the initialization process immediately, without saving a new entry or limit. Minebea Intec EN-23... - Page 26 The entered value does not flash. Only the actual cursor position (which is designated by an underscore) flashes. 5. Confirm the entry by briefly pressing the (Yes) key or discard by pressing the key. If the limit conditions are correct, the checking application is initialized. EN-24 Minebea Intec...
- Page 27 Negative net value < negative upper limit 99 g ACCEPT Positive net value in the target range 75 g UNDER Positive net value < lower limit MODE: CHECKWEIGH Activated application UNDER LIMIT 81 g Lower limit OVER LIMIT 100 g Upper limit Minebea Intec EN-25...
- Page 28 "Count" display. The entered value does not flash. Only the actual cursor position (which is designated by an underscore) flashes. The entry starts on the right-hand side. 3. Confirm the entry by briefly pressing the (Yes) key. EN-26 Minebea Intec...
- Page 29 Yellow LED illuminates Positive number of parts ≥ lower limit and ≤ upper limit Green LED illuminates Positive number of parts > upper limit Red LED illuminates Negative number of parts > lower limit Yellow LED illuminates Minebea Intec EN-27...
- Page 30 Signal when the weight is within the tolerance range — UNDER Signal when the weight is below the lower limit — OVER Signal when the weight is above the upper limit — UNDOVR Signal when the weight is outside of the tolerance range EN-28 Minebea Intec...
-
Page 31: Totalizing Application
If counting is active, the total parts are displayed. If only weighing is active, the display is dark. Once the first three seconds have elapsed, the next statistics parameters are also displayed for three seconds: Weight Text for minimum and maximum value Minebea Intec EN-29... - Page 32 After writing into the totalizing memory, the "Weight" display shows the total weight (= total value following adoption), the "PW" display shows the number of items in the totalizing memory, and the "Count" display shows the totalized number of parts. This display lasts for around 2 seconds. EN-30 Minebea Intec...
- Page 33 Totalized value of the weights 124 pcs Totalized value of the parts MAX: 20 g Maximum value as weight 10 pcs Maximum value as number of parts MIN: Minimum value as weight 2 pcs Minimum value as quantity Minebea Intec EN-31...
-
Page 34: Automatic Tare
If the weight is removed from the weighing pan and the net weight is < d, the next net weight ≥ 2 d generates printing again. 5.2.7.1 Menu selection Specify conditions under the menu item [PRINT] (printing): PRINT — A.PRINT automatic printing — OFF deactivated* (default setting) EN-32 Minebea Intec... -
Page 35: Product Memory
This automatic printing is generated after the totalizing (automatic mode), if "Totalizing" is activated. 5.2.8 Product memory The device has a product memory for a maximum of 30 products. Minebea Intec EN-33... - Page 36 The first product memory has the number 1. If the entry of the memory number contains an error, e.g. if the memory number is too big, then [LIM.ERR] is displayed in the "Count" display for approx. 2 seconds. Count EN-34 Minebea Intec...
- Page 37 Example: Memory items 1, 2, 5, 7 are occupied. If the displayed number is 5, pressing the (No) key will display → 7. Pressing (Back) will display → 5. 5.2.8.3 Changing/defining product parameters A current product can be changed or a new product can be defined. Minebea Intec EN-35...
- Page 38 The product name, which may be up to 12 characters long, can be entered in the "PW" display and in the "Weight" display. The characters that can be used are numbers, capital letters, "-", "/", ".", and spaces. Example: The product name is 123456789012. EN-36 Minebea Intec...
- Page 39 Press the (Back) key to return to entering the product name. ② Sample weight entry display Weight Piece Weight Flashing weight value of the sample weight in the unit (only g or oz are possible as units here) Minebea Intec EN-37...
- Page 40 ④ (specifying upper limit). Adopt the entered value by briefly pressing the (Yes) key. Continue with point ④. (Back) key to return to point ②. Press the ④ Upper checking limit entry display Weight EN-38 Minebea Intec...
- Page 41 Then the entry process is continued for the lower limit with the old value. ⑤ Saving entry display Weight flashes The "PW" display is empty. Count Adopt the product by briefly pressing the (Yes) key or (Back) key to return to point ④. Press the Minebea Intec EN-39...
- Page 42 In the menu:[PRINT]- [CONTNT] it is possible to specify that the product memory and product name need to be printed: Printout Description PROD-ID: Product memory number (ID), here 2 PROD-NAME: Metal4712123 Product name; max. 12 alphanumeric characters. EN-40 Minebea Intec...
-
Page 43: Handling Of The Second Scale
The scale settings can be adjusted in the user menu (menu mode). Note: If appropriate interface options are installed, additional sub-menus may be available. Information on this can be found in the manual for the interface used. Minebea Intec EN-41... -
Page 44: Menu Display In Displays
The second menu level is selected: Weight First menu level Piece Weight Second menu level The "Count" display is empty. The third level is reached: Weight First menu level Piece Weight Second menu level Count Third menu level = selection EN-42 Minebea Intec... - Page 45 The "Count" display is empty. The third level is reached: Weight Second menu level Piece Weight Third menu level The "Count" display is empty. The fourth level is reached: Weight Second menu level Piece Weight Third menu level Minebea Intec EN-43...
-
Page 46: Menu Mode
The second menu level is displayed in the "PW" display. Weight Piece Weight The "Count" display is empty. 4. To call up a menu selection (in this example [[METRO][STAB.RA]]), press the (Yes) key. The value 1D flashes in the "Count" display. EN-44 Minebea Intec... -
Page 47: Processing Entered Values In The Menu
Processing entered values in the menu For menu items with numerical settings, e.g. interval, the current setting is displayed with flashing digits. Press the (Yes) key in order to adopt the setting, or the (No) key in order to continue processing. Minebea Intec EN-45... -
Page 48: Menu Navigation
— 5 MIN Switching off after 5 minutes with no activity — 10 MIN Switching off after 10 minutes with no activity — RESET Factory settings — NO not reset* — YES activated — END Exit menu level EN-46 Minebea Intec... - Page 49 Automatic optimization of the sample weight — OFF deactivated — ON activate* — A.TARE Automatic tare — OFF deactivated* — ON 1st stable weight is tared — ON-ACC Stable loads within the tolerance limits are tared (in all checking applications) — BEEP.OP Minebea Intec EN-47...
- Page 50 Factory settings are marked with "*" PRINT — STABLE Print criteria — OFF Values are printed immediately — ON Values are only printed if they are stable* EN-48 Minebea Intec...
- Page 51 Totalizing memory is printed — ALL Result and statistics parameters such as min, max, etc. — PROD.ID Product memory location number — OFF deactivated* — ON activated — PROD.NA Product name; max. 12 alphanumeric characters — OFF deactivated* Minebea Intec EN-49...
- Page 52 7 data bits, odd parity — 7 NONE 7 data bits, no parity — 8 NONE 8 data bits, no parity* — STOP Stop bit — 1 — 2 — RESET Factory settings — NO not reset* — YES activated EN-50 Minebea Intec...
- Page 53 [PC.COM] menu selection The parameters for the PC communication can be specified in this menu. Factory settings are marked with "*" PC.COM — BAUD Baud rate — 4800 4,800 — 9600 9,600* — 19200 19,200 — 38400 38,400 Minebea Intec EN-51...
- Page 54 (GEO) — 12 Selectable range from 0 to 31 in individual increments* — END Exit menu level 5.3.4.9 [AD.CON2] menu selection The ADC configuration for scale 2 is carried out in this menu. EN-52 Minebea Intec...
- Page 55 — WP2 Info WP2, if selected in the menu — D Accuracy — MAX Max. load — END — LFT.MOD Display status of the legal metrology mode: ON or OFF for both scales — OFF Default mode Minebea Intec EN-53...
-
Page 56: Calibration, Adjustment
The calibration takes place following activation of menu item [WP1] or [WP2] in the menu. Weights for calibration points can be freely selected when the value is flashing. If the unit used for normal weighing is pounds, the calibration unit is also lb (pound). EN-54 Minebea Intec... - Page 57 In this time, the following is displayed in the displays: Weight Second menu level = calibration Piece Weight Third menu level = here WP1 Count Wait message, until the weight has been adopted The second weighing point is displayed flashing. Weight Second menu level = calibration Minebea Intec EN-55...
- Page 58 If an error occurred during the calibration, the following is displayed on the displays for around 2 seconds: Weight Second menu level = calibration Piece Weight Third menu level = here WP1 Count Error message = calibration is canceled EN-56 Minebea Intec...
-
Page 59: Linearization
The procedure is similar to the procedure for the calibration. The following is displayed in the "Weight" display: [LIN] WP1 or WP2 (if available) has been activated. The following is displayed in the displays: Weight Second menu level = calibration Piece Weight Third menu level = here WP1 Minebea Intec EN-57... -
Page 60: Geographic Adjustment Factor (Geo) - Procedure
The first menu item [METRO] is displayed in the "Weight" display. Weight 2. Press the (No) key until the menu item [CAL.ADJ] is displayed in the "Weight" display. Weight 3. Press the (Yes) key to access the sub-menu item. EN-58 Minebea Intec... -
Page 61: Geo Code Table
1,950 2,275 2,600 2,925 3,250 3,575 Altitude in feet 1,016 2,130 3,200 4,260 5,330 6,400 7,460 8,530 9,600 10,660 1,060 2,130 3,200 4,260 5,330 6,400 7,460 8,530 9,600 10,660 11,730 Latitude GEO value 0°00' 5°46' 5°46' 9°52' 9°52' 12°44' Minebea Intec EN-59... - Page 62 30°41' 30°41' 31°56' 31°56' 33°09' 33°09' 34°21' 34°21' 35°31' 35°31' 36°41' 36°41' 37°50' 37°50' 38°58' 38°58' 40°05' 40°05' 41°12' 41°12' 42°19' 42°19' 43°26' 43°26' 44°32' 44°32' 45°38' 45°38' 46°45' 46°45' 47°51' 47°51' 48°58' 48°58' 50°16' 50°16' 51°13' EN-60 Minebea Intec...
-
Page 63: Print
64°55' 66°24' 66°24' 67°57' 67°57' 69°35' 69°35' 71°21' 71°21' 73°16' 73°16' 75°24' 75°24' 77°55' 77°55' 80°56' 80°56' 85°45' 85°45' 90°00' Print During every print process, [PRINT] is displayed in the "Weight" display for around 1 second (maximum). Weight Minebea Intec EN-61... -
Page 64: Output Format
A non-stable negative gross weight value has no unit symbol: A defective format is generated if no valid weight value is displayed/if an error message is displayed. The error number in the display is also printed: e.g. [Err 8.1]. EN-62 Minebea Intec... -
Page 65: Product Memory
The contents of a print log are specified in the menu item [PRINT]- [CONTNT] (see Chapter 5.3.4.4). Any parameter selected here is printed for every printout, even if there is no content there. 0.000 kg T Example: If there is no tare value available, is printed. Minebea Intec EN-63... -
Page 66: Pc Output
Line feed ASCII 0x0A This format is also used for automatically generated telegrams, which are released according to the menu settings: [INT.OUT], [AUT.OUT], [AUT.STA] (see above). Zeroing the scale: Response: see special response telegrams Taring the scale: EN-64 Minebea Intec... - Page 67 Special response telegrams are always 5 bytes. OK (confirmed) The scale confirms error-free performance of the command. ERROR (error) The scale reports an error when performing the command. LOCKED (locked) The command cannot be performed because a parameter is currently blocked. Minebea Intec EN-65...
-
Page 68: Maintenance/Repairs/Cleaning
Defective or damaged cables or screw connections must be replaced as a complete unit. WARNING Improper repairs can pose considerable risks to the user. Only have repairs carried out by Minebea Intec qualified dealers using original spare parts. Cleaning 6.2.1 Instructions for cleaning The device must be cleaned of contaminants on a regular basis. -
Page 69: Waste Disposal Policy
Before disposing of or scrapping the product, any batteries should be removed and taken to a suitable collection point. Please see our T&Cs for further information. We reserve the right not to accept products that have been contaminated with hazardous substances (ABC contamination) for repair. Minebea Intec EN-67... -
Page 70: Error Correction
Compact scale Puro® LargeCount 8 Error correction Error correction The table lists frequent problems, as well as possible causes and corrective measures. If the problem persists, inform Minebea Intec or an authorized dealer. Symptom Possible cause Corrective measure Switching on not... -
Page 71: Service Information
Compact scale Puro® LargeCount Service information Contact the authorized service partners if a problem cannot be rectified with the aid of the troubleshooting information or is not described there. Our website http://www.puroscales.com provides information about your closest service partner. Minebea Intec EN-69... -
Page 72: Technical Data
= 5 V, 100–240 V–50/60 Hz power supply or installed rechargeab- le lithium battery Battery operation time Up to 210 hours operation time (with standard battery) between the charging processes, 12 hours charge time Calibration External, with freely selectable calibration weights EN-70 Minebea Intec... -
Page 73: Accessories
Shipping weight 4.5 kg Accessories Option Order no. Data printer YP-DP1 Paper for data printer YP-P1 Printer cable YP-CAS1 USB-C cable YP-CAC1 Manual laser barcode scanner MD2000 Scanner cable YP-CYSSR1 USB charging device YP-PS1 Weighing hooks YP-H1 Minebea Intec EN-71... -
Page 74: Dimensions
Compact scale Puro® LargeCount 9 Technical data Dimensions EN-72 Minebea Intec... - Page 75 9 Technical data Compact scale Puro® LargeCount 11.08" 12.21" All dimensions in mm / inch 0.31" 1.57" 10" All dimensions in mm / inch Minebea Intec EN-73...
- Page 76 Compact scale Puro® LargeCount 9 Technical data 10.47" All dimensions in mm / inch EN-74 Minebea Intec...
-
Page 77: 10 Appendix
Negative net value < negative upper limit 99 g ACCEPT Positive net value in the target range 75 g UNDER Positive net value < lower limit MODE: CHECKWEIGH Activated application UNDER LIMIT 81 g Lower limit OVER LIMIT 100 g Upper limit Minebea Intec EN-75... - Page 78 Upper limit WREF 0.35423 oz Sample weight, as displayed Totalizing application printout (= weight total printout) Printout Description Number of items, here: 2 TOTAL: 1.955 g Totalized value MAX: 1.485 g Maximum value MIN: 0.470 g Minimum value EN-76 Minebea Intec...
-
Page 79: 10.2 Fcc Notice
Realignment or repositioning of the reception antenna Increasing the distance between the device and the receiver Connecting the device and the receiver to separate electric circuits Call in the dealer or an experienced radio/television technician Minebea Intec EN-77... - Page 80 Published by Minebea Intec Bovenden GmbH & Co. KG | Leinetal 2 | 37120 Bovenden, Germany Phone: +49.551.309.83.0 | Email: info@minebea-intec.com www.minebea-intec.com...
