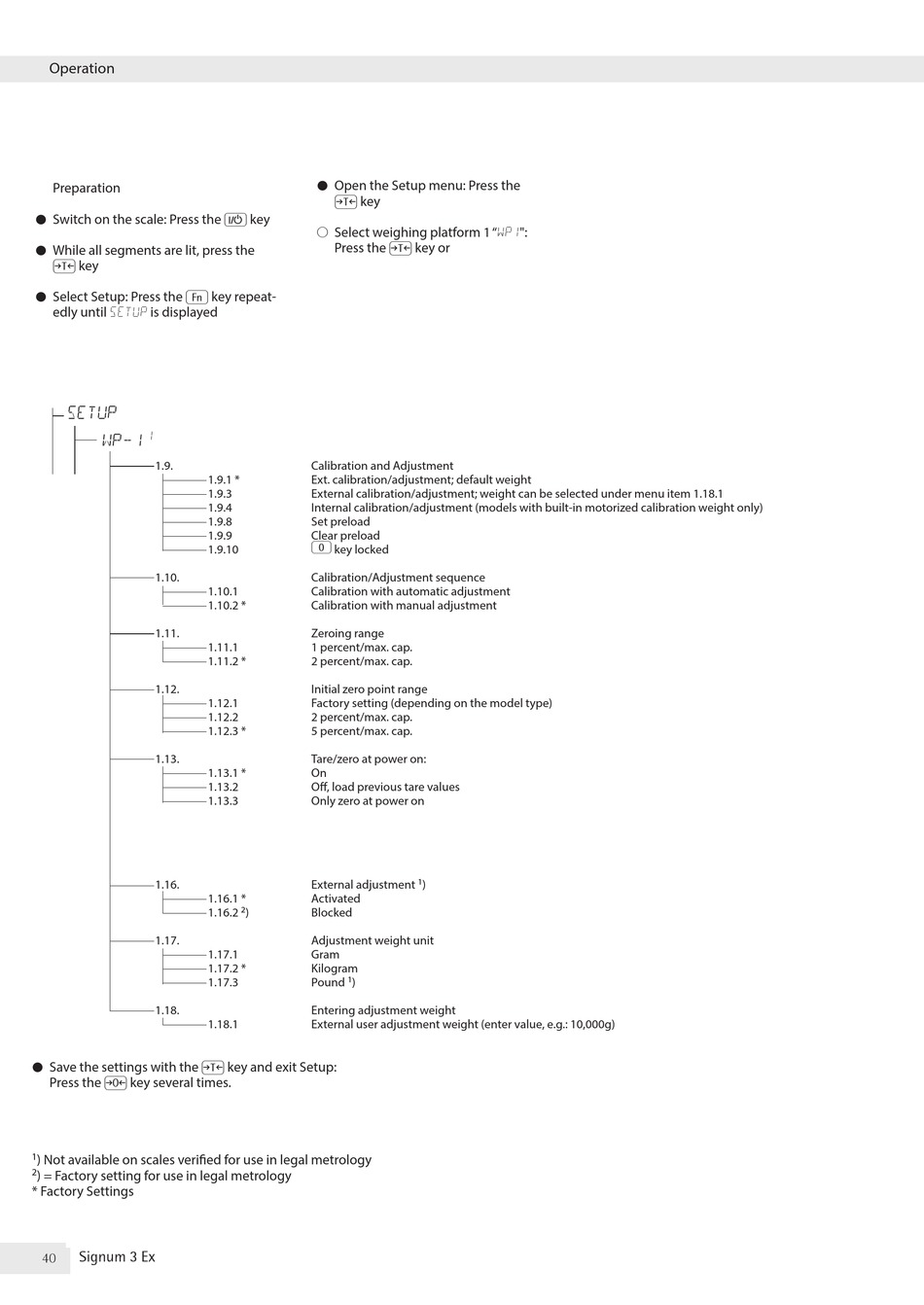

Minebea Intec Signum 3 Ex Operating Manual page 40

Operation
Preparation
§ Switch on the scale: Press the e key
§ While all segments are lit, press the
) key
§ Select Setup: Press the k key repeat-
edly until Setup is displayed
Setup
1
wp-1
1�9�
1�10�
1�11�
1�12�
1�13�
1�16�
1�17�
1�18�
§ Save the settings with the ) key and exit Setup:
Press the ( key several times�
1
) Not available on scales verified for use in legal metrology
2
) = Factory setting for use in legal metrology
* Factory Settings
40 Signum 3 Ex
40
§ Open the Setup menu: Press the
) key
$ Select weighing platform 1 "WP1":
Press the ) key or
Calibration and Adjustment
1�9�1 * Ext� calibration/adjustment; default weight
1�9�3 External calibration/adjustment; weight can be selected under menu item 1�18�1
1�9�4 Internal calibration/adjustment (models with built-in motorized calibration weight only)
1�9�8 Set preload
1�9�9 Clear preload
1�9�10 J key locked
Calibration/Adjustment sequence
1�10�1 Calibration with automatic adjustment
1�10�2 * Calibration with manual adjustment
Zeroing range
1�11�1 1 percent/max� cap�
1�11�2 * 2 percent/max� cap�
Initial zero point range
1�12�1 Factory setting (depending on the model type)
1�12�2 2 percent/max� cap�
1�12�3 * 5 percent/max� cap�
Tare/zero at power on:
1�13�1 * On
1�13�2 Off, load previous tare values
1�13�3 Only zero at power on
External adjustment
1�16�1 * Activated
2
1�16�2 ) Blocked
Adjustment weight unit
1�17�1 Gram
1�17�2 * Kilogram
1�17�3 Pound 1 )
Entering adjustment weight
1�18�1 External user adjustment weight (enter value, e�g�: 10,000g)
1
)
