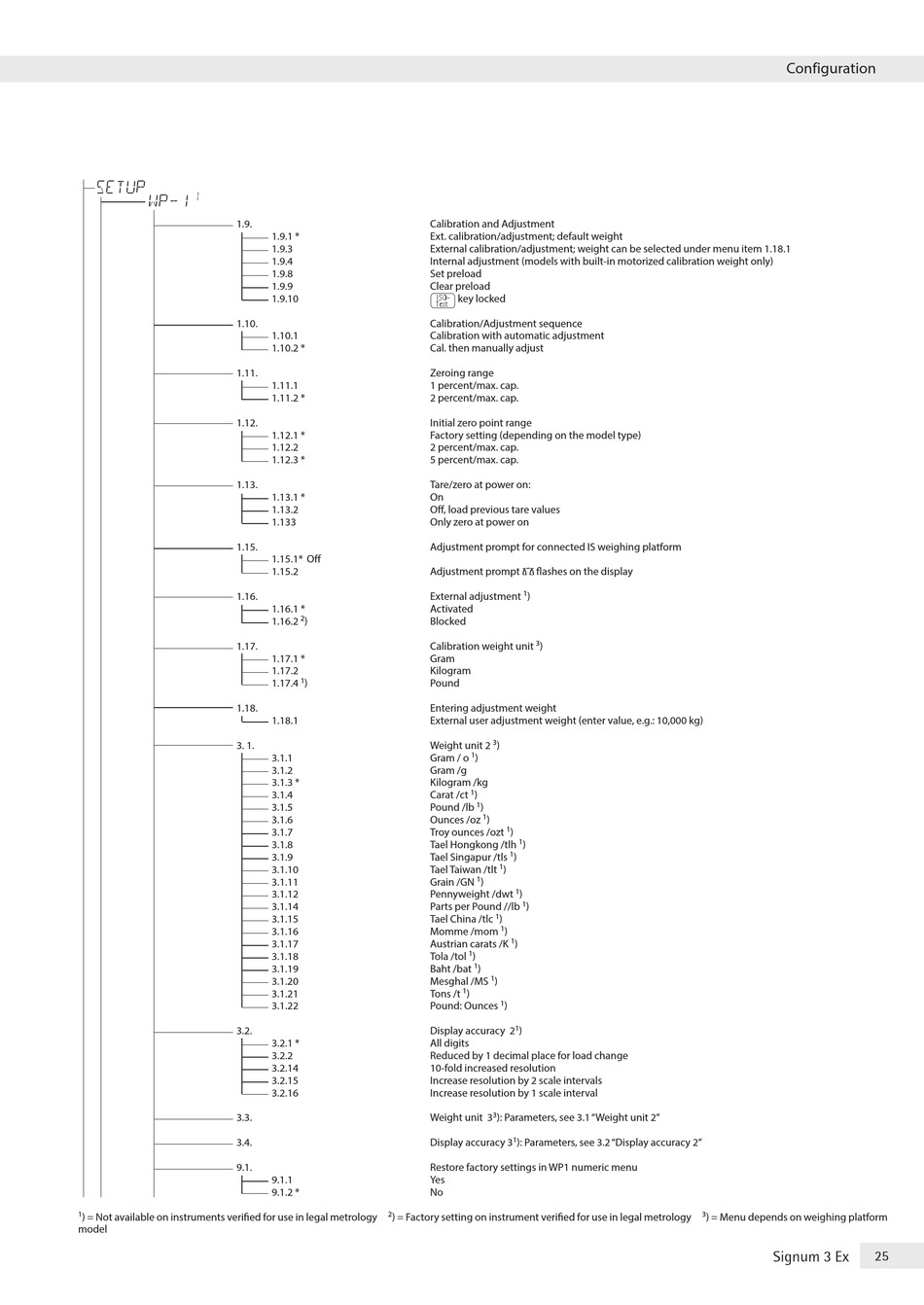

Setup
1
wp-1
1�9�
1�10�
1�11�
1�12�
1�13�
1�15�
1�16�
1�17�
1�18�
3� 1�
3�2�
3�3�
3�4�
9�1�
1
) = Not available on instruments verified for use in legal metrology
model
Calibration and Adjustment
1�9�1 *
Ext� calibration/adjustment; default weight
1�9�3
External calibration/adjustment; weight can be selected under menu item 1�18�1
1�9�4
Internal adjustment (models with built-in motorized calibration weight only)
1�9�8
Set preload
1�9�9
Clear preload
J
1�9�10
Calibration/Adjustment sequence
1�10�1
Calibration with automatic adjustment
1�10�2 *
Cal� then manually adjust
Zeroing range
1�11�1
1 percent/max� cap�
1�11�2 *
2 percent/max� cap�
Initial zero point range
1�12�1 *
Factory setting (depending on the model type)
1�12�2
2 percent/max� cap�
1�12�3 *
5 percent/max� cap�
Tare/zero at power on:
1�13�1 *
On
1�13�2
Off, load previous tare values
1�133
Only zero at power on
Adjustment prompt for connected IS weighing platform
1�15�1* Off
Adjustment prompt W flashes on the display
1�15�2
External adjustment
1�16�1 *
Activated
2
1�16�2
)
Blocked
Calibration weight unit
1�17�1 *
Gram
1�17�2
Kilogram
1
1�17�4
)
Pound
Entering adjustment weight
1�18�1
External user adjustment weight (enter value, e�g�: 10,000 kg)
Weight unit 2
3�1�1
Gram / o
3�1�2
Gram /g
3�1�3 *
Kilogram /kg
3�1�4
Carat /ct
3�1�5
Pound /lb
3�1�6
Ounces /oz
3�1�7
Troy ounces /ozt
3�1�8
Tael Hongkong /tlh
3�1�9
Tael Singapur /tls
3�1�10
Tael Taiwan /tlt
3�1�11
Grain /GN
3�1�12
Pennyweight /dwt
3�1�14
Parts per Pound //lb
3�1�15
Tael China /tlc
3�1�16
Momme /mom
3�1�17
Austrian carats /K
3�1�18
Tola /tol
3�1�19
Baht /bat
3�1�20
Mesghal /MS
3�1�21
Tons /t
3�1�22
Pound: Ounces
Display accuracy 2
3�2�1 *
All digits
3�2�2
Reduced by 1 decimal place for load change
3�2�14
10-fold increased resolution
3�2�15
Increase resolution by 2 scale intervals
3�2�16
Increase resolution by 1 scale interval
Weight unit 3
Display accuracy 3
Restore factory settings in WP1 numeric menu
9�1�1
Yes
9�1�2 *
No
2
) = Factory setting on instrument verified for use in legal metrology
key locked
1
)
3
)
3
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
1
)
3
): Parameters, see 3�1 "Weight unit 2"
1
): Parameters, see 3�2 "Display accuracy 2"
Configuration
3
) = Menu depends on weighing platform
Signum 3 Ex
