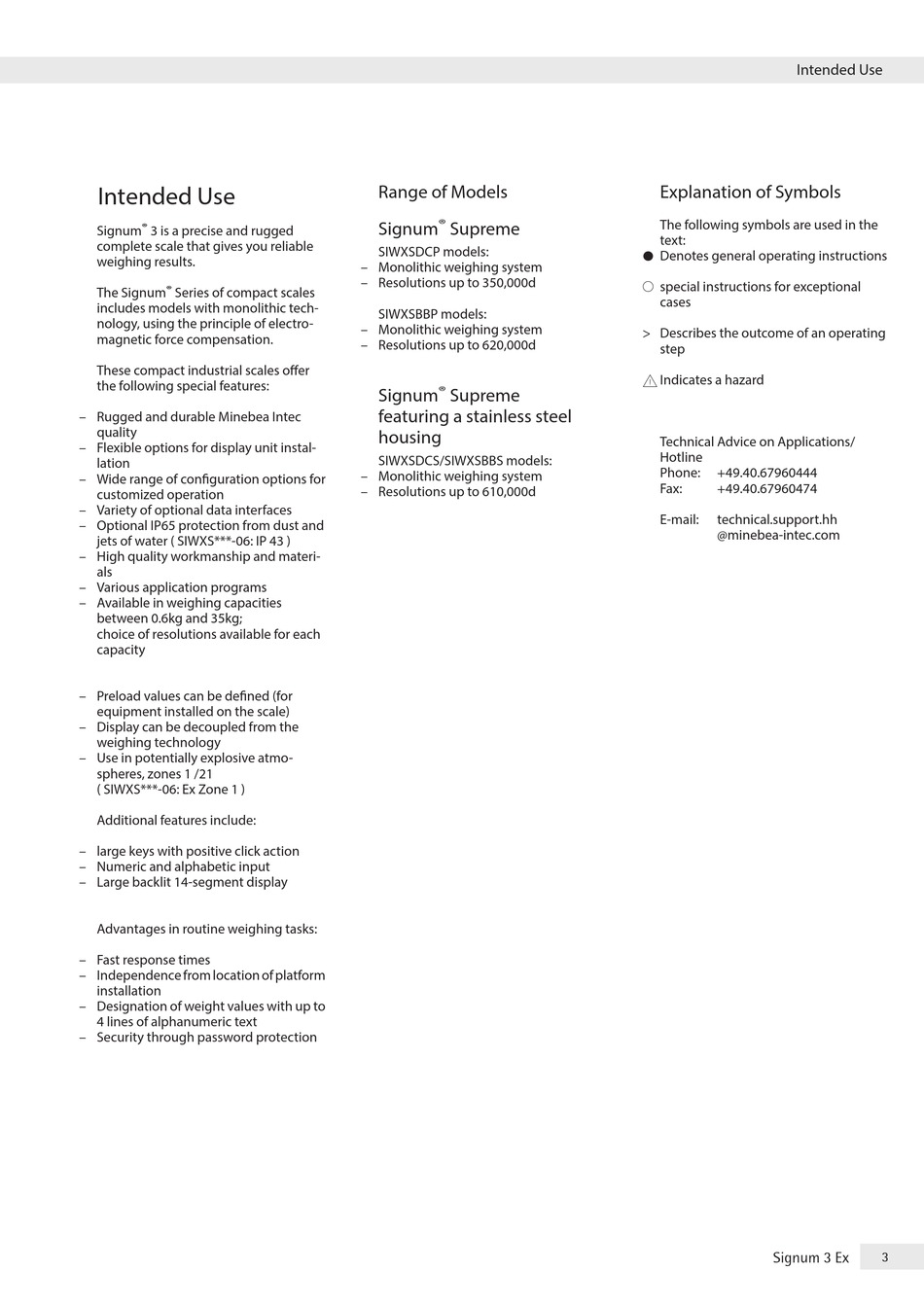

Intended Use

®
Signum 3 is a precise and rugged
complete scale that gives you reliable
weighing results�
®
The Signum Series of compact scales
includes models with monolithic tech-
nology, using the principle of electro-
magnetic force compensation�
These compact industrial scales offer
the following special features:
– Rugged and durable Minebea Intec
quality
– Flexible options for display unit instal-
lation
– Wide range of configuration options for
customized operation
– Variety of optional data interfaces
– Optional IP65 protection from dust and
jets of water ( SIWXS***-06: IP 43 )
– High quality workmanship and materi-
als
– Various application programs
– Available in weighing capacities
between 0�6kg and 35kg;
choice of resolutions available for each
capacity
– Preload values can be defined (for
equipment installed on the scale)
– Display can be decoupled from the
weighing technology
– Use in potentially explosive atmo-
spheres, zones 1 /21
( SIWXS***-06: Ex Zone 1 )
Additional features include:
– large keys with positive click action
– Numeric and alphabetic input
– Large backlit 14-segment display
Advantages in routine weighing tasks:
– Fast response times
– Independence from location of platform
installation
– Designation of weight values with up to
4 lines of alphanumeric text
– Security through password protection
Range of Models
®
Signum Supreme
SIWXSDCP models:
– Monolithic weighing system
– Resolutions up to 350,000d
SIWXSBBP models:
– Monolithic weighing system
– Resolutions up to 620,000d
Signum ® Supreme
featuring a stainless steel
housing
SIWXSDCS/SIWXSBBS models:
– Monolithic weighing system
– Resolutions up to 610,000d
Intended Use
Explanation of Symbols
The following symbols are used in the
text:
§ Denotes general operating instructions
$ special instructions for exceptional
cases
> Describes the outcome of an operating
step
Indicates a hazard
!
Technical Advice on Applications/
Hotline
Phone: +49�40�67960444
Fax: +49�40�67960474
E-mail: technical�support�hh
@minebea-intec�com
Signum 3 Ex 3
