Operating Instructions
Combics Minebea Intec
Models CAPXS.U

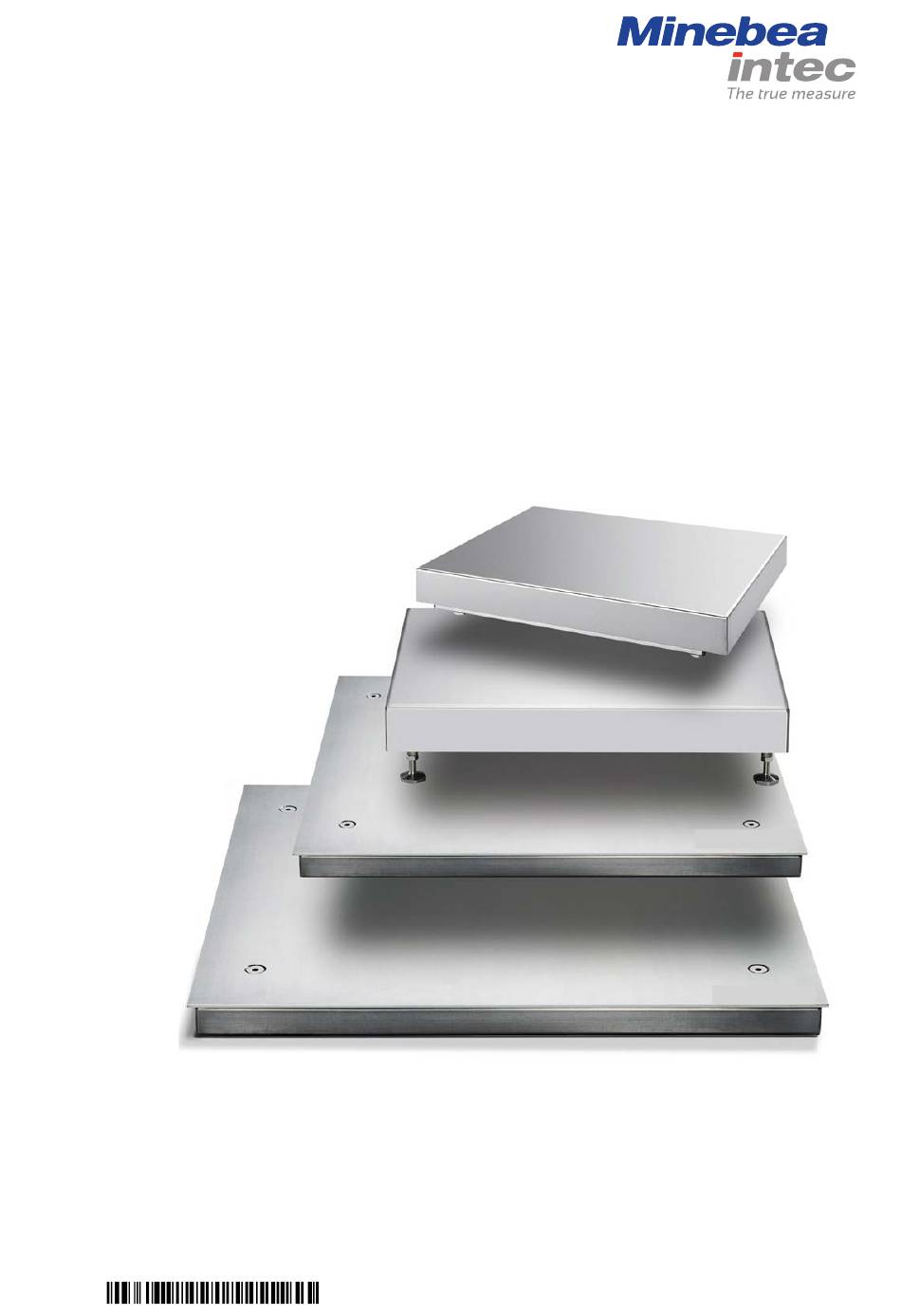

Stainless Steel Weighing Platforms for Use in Hazardous Locations
98648-014-07
98648-014-07

Advertisement

loading
Need help?

Need help?

Do you have a question about the Combics CAPXS U Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Minebea Intec Combics CAPXS U Series

  • Page 1 Operating Instructions Combics Minebea Intec Models CAPXS.U Stainless Steel Weighing Platforms for Use in Hazardous Locations 98648-014-07 98648-014-07...
  • Page 2: Table Of Contents

    Contents Intended Use 2 Symbols The weighing platform and the connected indicator are intended 2 Intended Use exclusively for use in weighing. 3 Safety Instuctions 4 Warranty 5 Setting Up the Scale 7 Installation 8 Operating Limits 9 Care and Maintenance 10 Accessories 12 Certificates of Compliance The following symbols are used in these instructions:...
  • Page 3: Safety Instuctions

    PVC. The permitted uses of the weighing by authorized service technicians who platform are specified in the Certificate have been trained by Minebea Intec and who Chemicals that corrode these materials of Compliance. follow Minebea Intec’ standard operating must be kept away from these cables.
  • Page 4: Warranty

    If available, complete the warranty registration card, indicating the date of installation, and return the card to your Minebea Intec office or dealer. EMC Declaration This equipment has been tested in conjunction with Minebea Intec indicators...
  • Page 5: Setting Up The Scale

    Setting Up the Scale Setting Up the Scale § Choose a suitable place to set up the weighing platform. This place should have a dry, horizontal and even surface. The operating temperature range only for the platform is between –10°C and +40°C (–14°F and +104°F). The allowable structural load-carrying capacity of a floor or surface must be sufficient to support both the weight of the weighing platform and its maximum weighing capacity.
  • Page 6 Installation must be performed by a trained technician in accordance with national regulations and generally acknowledged rules of engineering. Use only cabling and extensions approved by Minebea Intec, as these are made in accordance with the restrictions on permissible cable lengths imposed by both the capacitance and inductivity values (see Control Drawing) and the requirements for electromagnetic compatibility.
  • Page 7: Installation

    Installation Installation § Connect the cable of the weighing platform to a suitable indicator. Note: The cable gland along with the screw fasteners is already pre-assembled. Use extreme care when attaching or detaching a cable. § Strip off the insulation at the cable end and attach the cable as follows: –...
  • Page 8: Operating Limits

    Operating Limits You should not place loads on the scale that exceed its maximum weighing capacity. Depending on the position of the load (center, side, one-sided corner load), the maximum capacity of the weighing platform is in lbs as follows: Model* Center Side...
  • Page 9: Care And Maintenance

    Care and Maintenance Care and Maintenance Cleaning Cleaning Stainless Steel Surfaces $ Unplug the scale from the AC power before cleaning. Clean all stainless steel parts regularly. Remove the stainless To clean the weighing platform in a dry area: use a piece of steel weighing pan and thoroughly clean it separately, outside Cleaning Cleaning Stainless Steel Surfaces...
  • Page 10: Accessories

    Accessories Drive-on ramp, painted, for platform sizes: Drive-on ramp, AISI 316 Ti stainless steel (tread plate) Platform for platform sizes: size in inch Accessory no. Platform size in inch Accessory no. 30 + 24 YAR-CWP-24 30 + 24 YAR-CWSST-24 30 + 24 YAR-CWP-30 30 + 24 YAR-CWSST-30...
  • Page 11 Column, painted, for attaching indicator to platform, for sizes: Size in inch Accessory no. CC (10 + 10), height 13 YDH01CWP DD (12 + 12), height 19.7 YDH02CWP EE (18 +18), height 19.7 YDH02CWP EE (18 + 18), height 29.5 YDH03CWP Column, stainless steel, for attaching indicator to platform, for sizes:...
  • Page 12 Model CAPX..U-……-……, IUX.4-……-…… and IFX.4-……- (Type Reference and Name) ….. Weighing Platforms and Model YDI05-Z Interface Converter Name of Listing Company: Minebea Intec Bouvenden GmbH & Co. KG Address of Listing Company: Leinetal 2 37120, Bovenden Germany The examination and test results are recorded in confidential report number:...
  • Page 13 SCHEDULE US Certificate Of Conformity No: FM18US0227X A4, Class I, Division 2, Groups A, B, C and D T4 at Max. Ta=50°C; Class II, III, Division 2, Groups E, F and G T4 at Ta=50°C and Class II, Zone 20, IIIC T4 at Ta=* when connected as per control drawings 35739-003-07-A4. *see table below (cable) (cable)
  • Page 14 SCHEDULE US Certificate Of Conformity No: FM18US0227X the non-hazardous area with devices located in hazardous locations. The signals that are exchanged between non-hazardous and hazardous areas can be converted between different protocols within YDI05-Z. Model CAPX..U-……-……, IUX.4-……-…… and IFX.4-……-….. Weighing Platforms Model YDI05-Z Interface Converter Specific Conditions of Use: Test and Assessment Procedure and Conditions:...
  • Page 15 CERTIFICATE OF CONFORMITY HAZARDOUS LOCATION ELECTRICAL EQUIPMENT PER CANADIAN REQUIREMENTS Certificate No: FM18CA0109X Equipment: CAPX..U, IUX.4 and IFX.4 Platforms, and YDIO5-Z Interface Converter Name of Listing Company: Minebea Intertec Bovenden GmbH & CO. KG Address of Listing Company: Leinetal 2 37120, Bovenden Germany The examination and test results are recorded in confidential report number:...
  • Page 16 SCHEDULE Canadian Certificate Of Conformity No: FM18CA0109X Class I, Division 2, Groups A, B, C and D T4 at Max. Ta=50°C; Dust- Ignition proof for Class II, III, Division 2, Groups E, F and G T4 at Ta=50°C. Vmax Imax Ci (cable) Li (cable) 17Vdc 410mA 1.25W 162pf/m...
  • Page 17 SCHEDULE Canadian Certificate Of Conformity No: FM18CA0109X Description of Equipment: The Model CAPX..U-……-……, IUX.4-……-…… and IFX.4-……-….. are stainless steel bench and floor Weighing Platforms based on strain-gauge load cells. They can be connected to any indicator that fulfils the requirements of the desired type of protection.
  • Page 18 SCHEDULE Canadian Certificate Of Conformity No: FM18CA0109X March, 2006 Original Issue. Supplement 5: Report Reference: – RR214399 dated 11 November 2018 November 2018 Description of the Change: Coversion of certificate to new format, change name on certificate to Minebea Intertec GmbH, remove Model CS3X. THIS CERTIFICATE MAY ONLY BE REPRODUCED IN ITS ENTIRETY AND WITHOUT CHANGE FM Approvals LLC.
  • Page 19 Combics CAPXS.U...
  • Page 20 Hazardous (Classified) Location Class I,II,III, Division 1, Groups A,B,C,D,E,F,G T4 Class I, Zone 1, Groups IIA, IIB, IIC T4 Class II, Zone 20 Sartorius Load Cell Load Cell Load Cell Load Cell Weighing Platform CAPX..U-..-..IUX.4.-..-..Junction Box IFX.4.-.... Sensor Output FM Global or CSA Approved/Certified Universal Apparatus with Entity Concept parameters (see note 3)
  • Page 21 Hazardous (Classified) Location Class I,II,III, Division 2, Groups A,B,C,D,E,F,G T4 Class I, Zone 2, Groups IIA, IIB, IIC T4 Class II, Zone 22 Sartorius Weighing Platform Load Cell Load Cell Load Cell Load Cell CAPX..U-..-..IUX.4.-..-..Junction Box IFX.4.-..-..Sensor Output Indicator In the USA: The installation must be in accordance with the National Electrical Code ®, NFPA 70, Article 504 or 505 and ANSI / ISA-RP 12.6.
  • Page 22 Combics CAPXS.U...
  • Page 23 Combics CAPXS.U...
  • Page 24 All rights reserved. The status of the information, specifications and illustrations in this manual is indicated by the date given below. Minebea Intec reserves the right to make changes to the technology, features, specifications, and design of the equipment without notice. Date: December 2018 Printed in Germany on paper that has been bleached without any use of chlorine.
