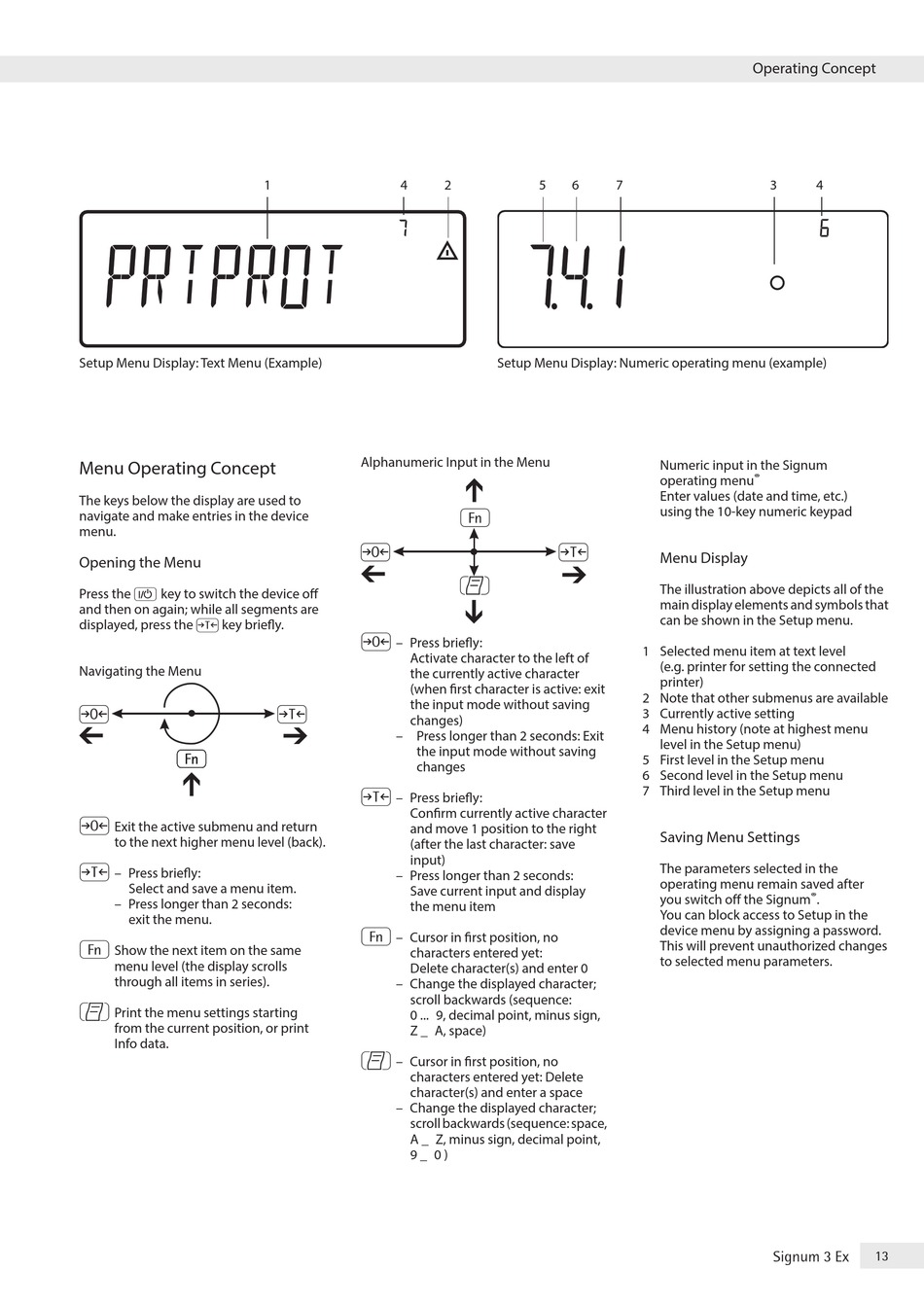

Operating Menu Navigation - Minebea Intec Signum 3 Ex Operating Manual

Setup Menu Display: Text Menu (Example)
Menu Operating Concept
The keys below the display are used to
navigate and make entries in the device
menu�
Opening the Menu
Press the e key to switch the device off
and then on again; while all segments are
displayed, press the ) key briefly�
Navigating the Menu
(
Exit the active submenu and return
to the next higher menu level (back)�
)
– Press briefly:
Select and save a menu item�
– Press longer than 2 seconds:
exit the menu�
k
Show the next item on the same
menu level (the display scrolls
through all items in series)�
p
Print the menu settings starting
from the current position, or print
Info data�
1 4
Alphanumeric Input in the Menu
(
– Press briefly:
Activate character to the left of
the currently active character
(when first character is active: exit
the input mode without saving
changes)
– Press longer than 2 seconds: Exit
the input mode without saving
changes
)
– Press briefly:
Confirm currently active character
and move 1 position to the right
(after the last character: save
input)
– Press longer than 2 seconds:
Save current input and display
the menu item
k
– Cursor in first position, no
characters entered yet:
Delete character(s) and enter 0
– Change the displayed character;
scroll backwards (sequence:
0 ��� 9, decimal point, minus sign,
Z _ A, space)
p
– Cursor in first position, no
characters entered yet: Delete
character(s) and enter a space
– Change the displayed character;
scroll backwards (sequence: space,
A _ Z, minus sign, decimal point,
9 _ 0 )
2 5 6 7
Setup Menu Display: Numeric operating menu (example)
Operating Concept
3 4
Numeric input in the Signum
operating menu ®
Enter values (date and time, etc�)
using the 10-key numeric keypad
Menu Display
The illustration above depicts all of the
main display elements and symbols that
can be shown in the Setup menu�
1 Selected menu item at text level
(e�g� printer for setting the connected
printer)
2 Note that other submenus are available
3 Currently active setting
4 Menu history (note at highest menu
level in the Setup menu)
5 First level in the Setup menu
6 Second level in the Setup menu
7 Third level in the Setup menu
Saving Menu Settings
The parameters selected in the
operating menu remain saved after
®
you switch off the Signum �
You can block access to Setup in the
device menu by assigning a password�
This will prevent unauthorized changes
to selected menu parameters�
