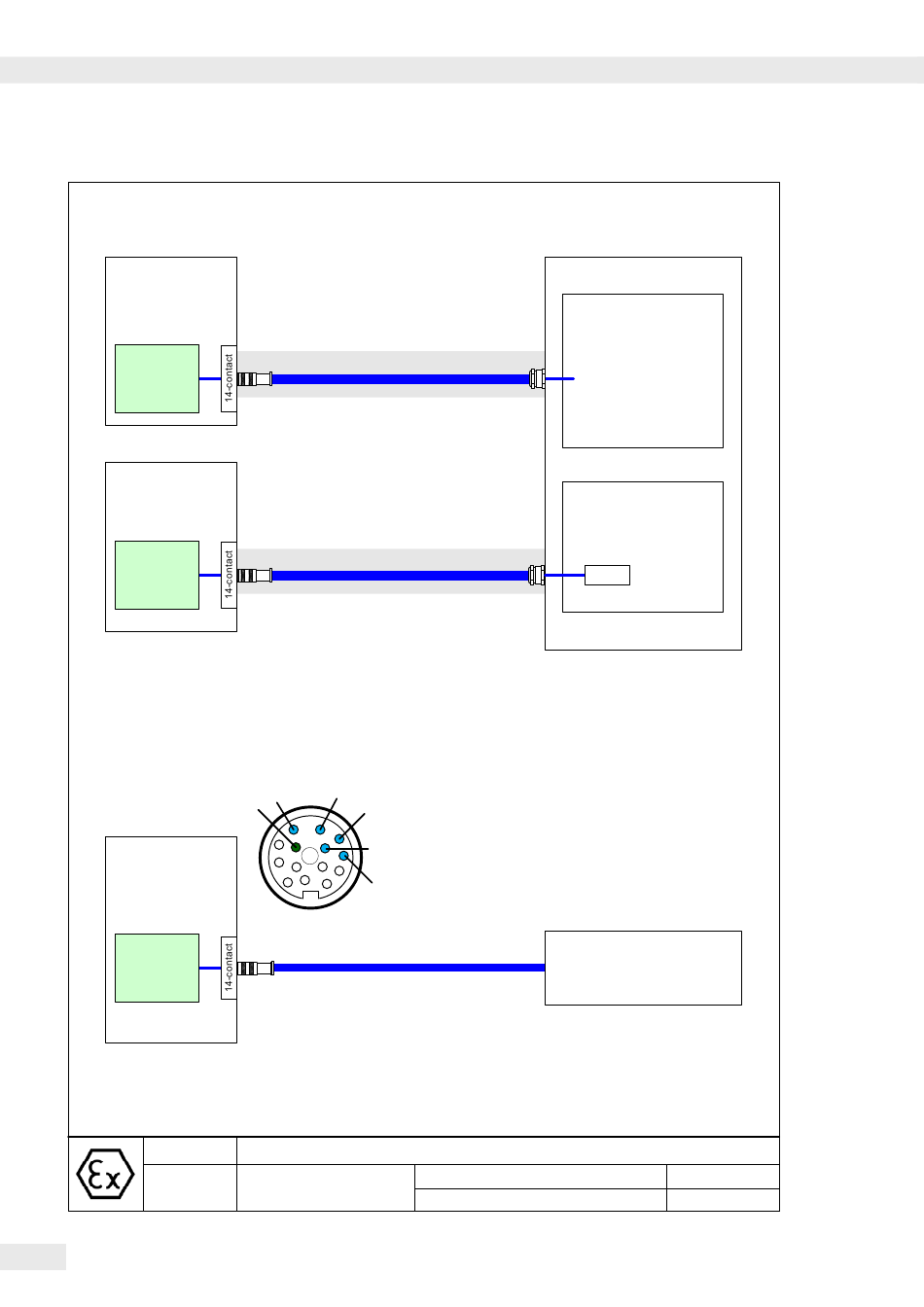

Data output options
SIWXS...-3-..-...
or
ISX...-..-...
Option A11
RS232
or
Option A13
RS485
SIWXS...-3-..-...
or
ISX...-..-...
Option A13
RS485
SIWXS...-3-..-...
or
ISX...-..-...
Option A11
RS232
or
Option A13
RS485
*: YCC02-XR14M6; connecting cable; Option of CIXS3 / CX3S.-... / CHX3.-...
**: Option of CIXS3 / CX3S.-... / CHX3.-...
***: Interface can be selected and configured by software
2013-02-02
Dr. D. Klausgrete
130 Signum 3 Ex
Hazardous area
Option M13 *
6m
Option N25 **
6m
G F
M E
G: > (MAJ)
F: < (MIN)
O
E: = (PAR)
D: SET
O: UNIV IN
D
M: Signal GND
14-contact female connector
on SIWXS.../ISX...
Digital IOs
Title
Drawing number
CIXS3 / CX3S.-... / CHX3.-...
Main PCB***
Option A21: RS232
Option A23: RS485
UNICOM PCB
Option A36
LV2
RS485
Intrinsically safe device
Data Transfer
6
Page
36953-751-40
Revision
6
of
00
