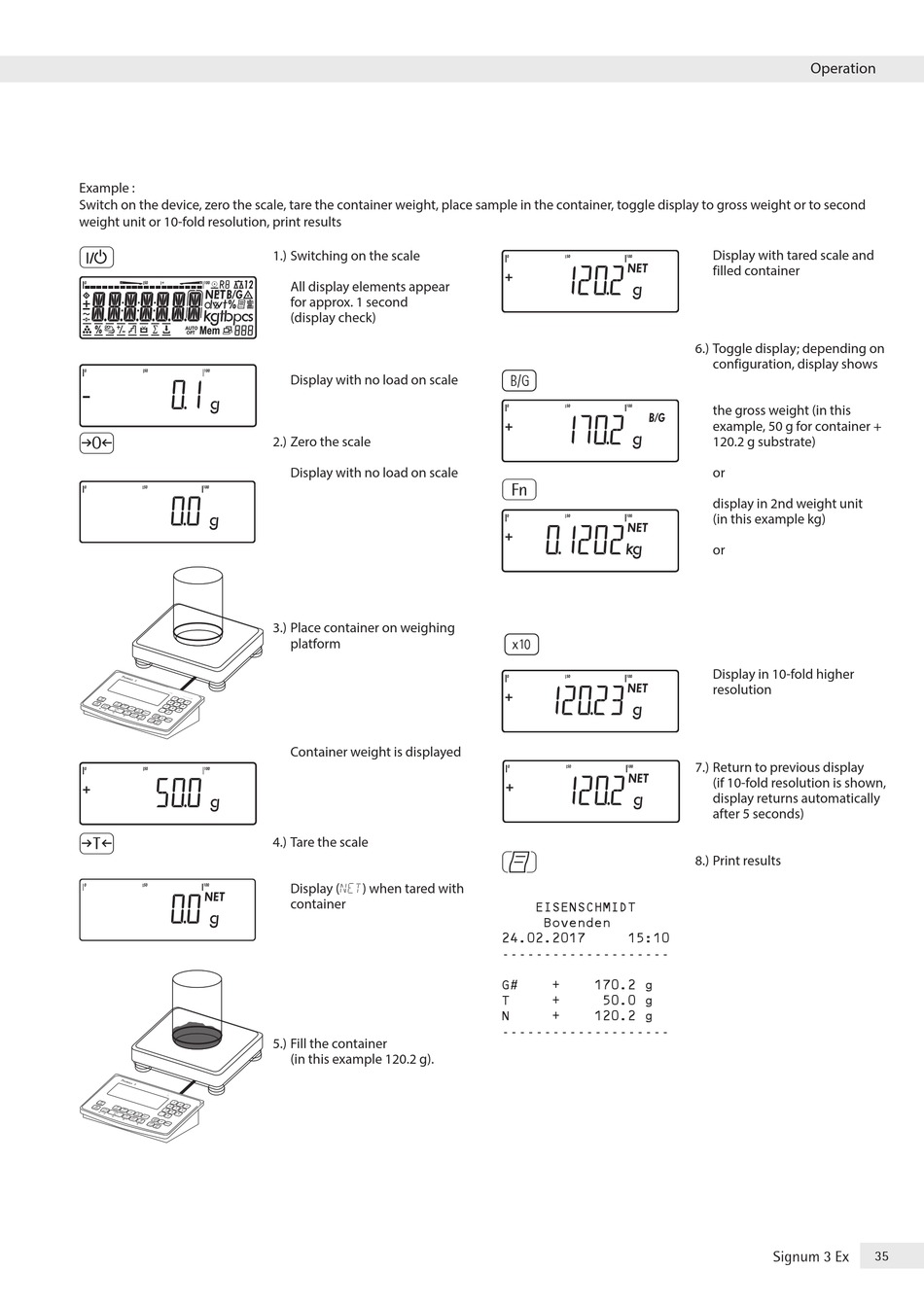

Example :
Switch on the device, zero the scale, tare the container weight, place sample in the container, toggle display to gross weight or to second
weight unit or 10-fold resolution, print results
e
(
)
1�) Switching on the scale
All display elements appear
for approx� 1 second
(display check)
Display with no load on scale
2�) Zero the scale
Display with no load on scale
3�) Place container on weighing
platform
Container weight is displayed
4�) Tare the scale
Display (net) when tared with
container
5�) Fill the container
(in this example 120�2 g)�
L
k
K
p
EISENSCHMIDT
Bovenden
24.02.2017 15:10
--------------------
G# + 170.2 g
T + 50.0 g
N + 120.2 g
--------------------
Operation
Display with tared scale and
filled container
6�) Toggle display; depending on
configuration, display shows
the gross weight (in this
example, 50 g for container +
120�2 g substrate)
or
display in 2nd weight unit
(in this example kg)
or
Display in 10-fold higher
resolution
7�) Return to previous display
(if 10-fold resolution is shown,
display returns automatically
after 5 seconds)
8�) Print results
Signum 3 Ex 35
