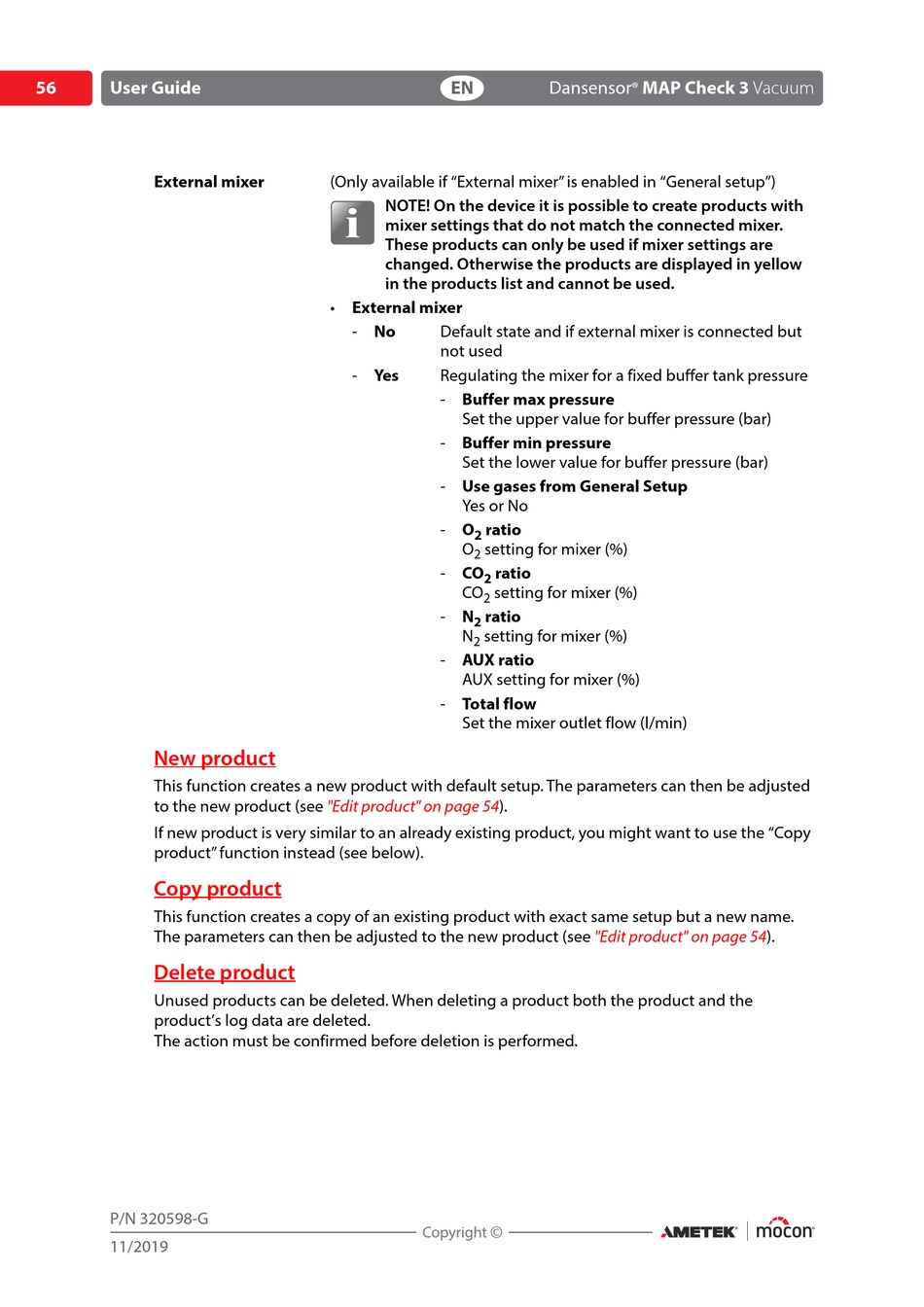

56 User Guide
External mixer

New product

This function creates a new product with default setup. The parameters can then be adjusted
to the new product (see
If new product is very similar to an already existing product, you might want to use the "Copy
product" function instead (see below).

Copy product

This function creates a copy of an existing product with exact same setup but a new name.
The parameters can then be adjusted to the new product (see

Delete product

Unused products can be deleted. When deleting a product both the product and the
product's log data are deleted.
The action must be confirmed before deletion is performed.
P/N 320598-G
11/2019
EN
(Only available if "External mixer" is enabled in "General setup")
NOTE! On the device it is possible to create products with
mixer settings that do not match the connected mixer.
These products can only be used if mixer settings are
changed. Otherwise the products are displayed in yellow
in the products list and cannot be used.
• External mixer
- No Default state and if external mixer is connected but
not used
- Yes Regulating the mixer for a fixed buffer tank pressure
- Buffer max pressure
Set the upper value for buffer pressure (bar)
- Buffer min pressure
Set the lower value for buffer pressure (bar)
- Use gases from General Setup
Yes or No
- O ratio
2
O setting for mixer (%)
2
- CO ratio
2
CO setting for mixer (%)
2
- N ratio
2
N setting for mixer (%)
2
- AUX ratio
AUX setting for mixer (%)
- Total flow
Set the mixer outlet flow (l/min)
"Edit product" on page 54).
Dansensor MAP Check 3 Vacuum
®
"Edit product" on page 54).
