Request ID when changing When set to "Yes" the operator will be prompted to enter
product
Backlight
Contrast
Brightness
Formats/Units/Time
Supervisor PIN code setup

External mixer settings

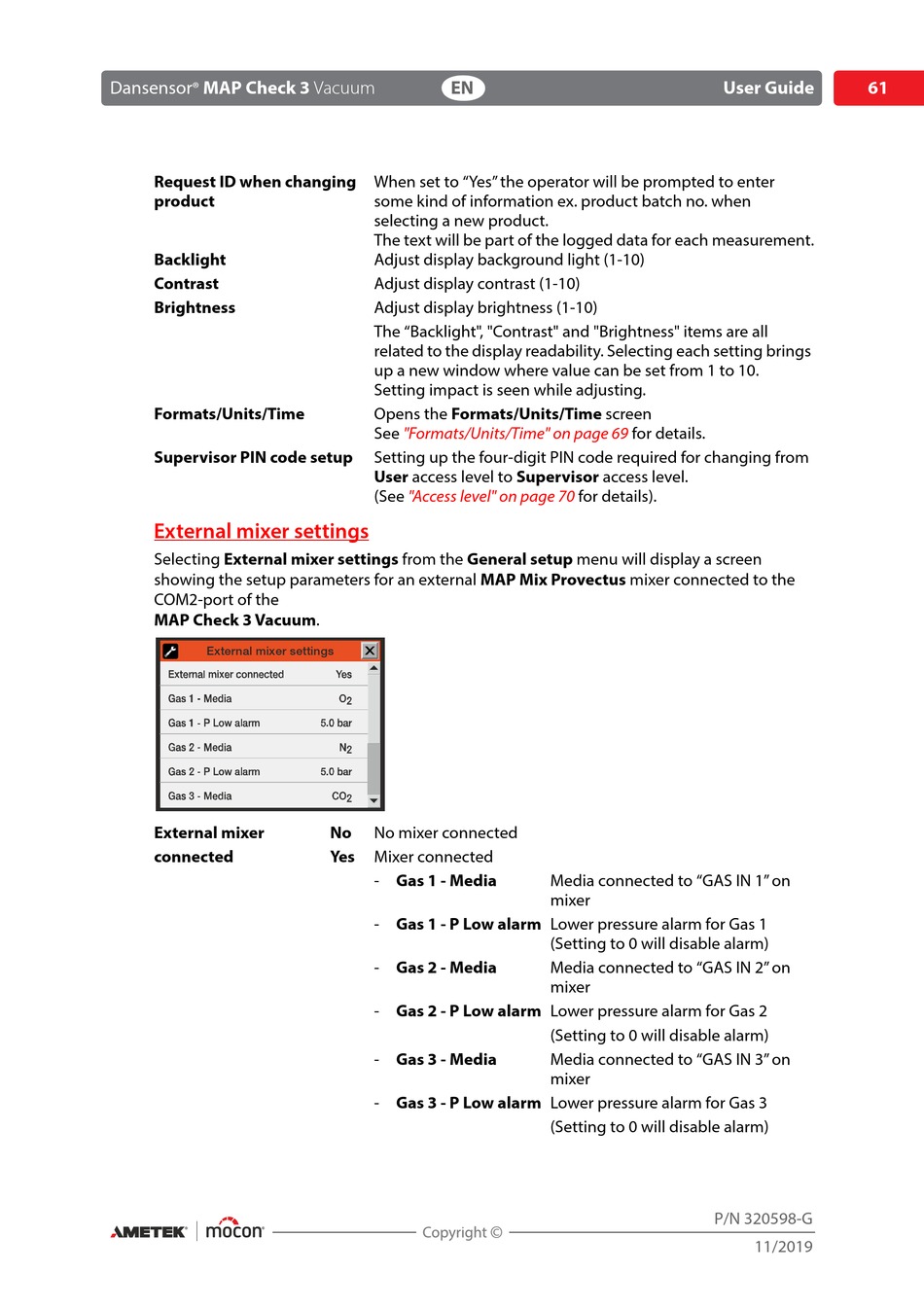

Selecting External mixer settings from the General setup menu will display a screen
showing the setup parameters for an external MAP Mix Provectus mixer connected to the
COM2-port of the
MAP Check 3 Vacuum.
External mixer
External mixer
connected
EN
some kind of information ex. product batch no. when
selecting a new product.
The text will be part of the logged data for each measurement.
Adjust display background light (1-10)
Adjust display contrast (1-10)
Adjust display brightness (1-10)
The "Backlight", "Contrast" and "Brightness" items are all
related to the display readability. Selecting each setting brings
up a new window where value can be set from 1 to 10.
Setting impact is seen while adjusting.
Opens the Formats/Units/Time screen
See "Formats/Units/Time" on page 69
Setting up the four-digit PIN code required for changing from
User access level to Supervisor access level.
(See "Access level" on page 70
set tings
No No mixer connected
Yes Mixer connected
- Gas 1 - Media
- Gas 1 - P Low alarm Lower pressure alarm for Gas 1
- Gas 2 - Media
- Gas 2 - P Low alarm Lower pressure alarm for Gas 2
- Gas 3 - Media
- Gas 3 - P Low alarm Lower pressure alarm for Gas 3
User Guide
for details.
for details).
Media connected to "GAS IN 1" on
mixer
(Setting to 0 will disable alarm)
Media connected to "GAS IN 2" on
mixer
(Setting to 0 will disable alarm)
Media connected to "GAS IN 3" on
mixer
(Setting to 0 will disable alarm)
