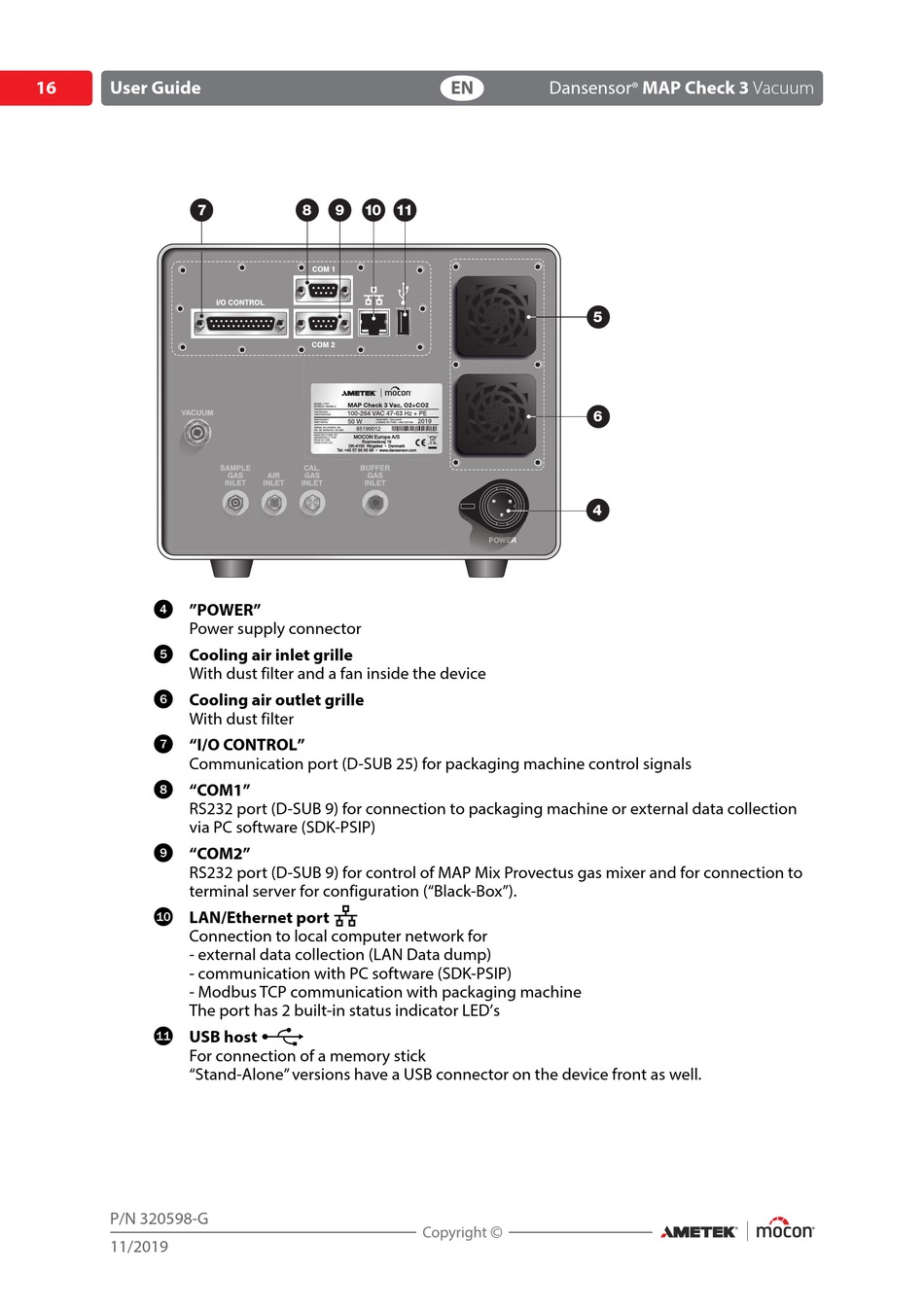

"POWER"
Power supply connector
Cooling air inlet grille
With dust filter and a fan inside the device
Cooling air outlet grille
With dust filter
"I/O CONTROL"
Communication port (D-SUB 25) for packaging machine control signals
"COM1"
RS232 port (D-SUB 9) for connection to packaging machine or external data collection
via PC software (SDK-PSIP)
"COM2"
RS232 port (D-SUB 9) for control of MAP Mix Provectus gas mixer and for connection to
terminal server for configuration ("Black-Box").
LAN/Ethernet port
Connection to local computer network for
- external data collection (LAN Data dump)
- communication with PC software (SDK-PSIP)
- Modbus TCP communication with packaging machine
The port has 2 built-in status indicator LED's
USB host
For connection of a memory stick
"Stand-Alone" versions have a USB connector on the device front as well.
