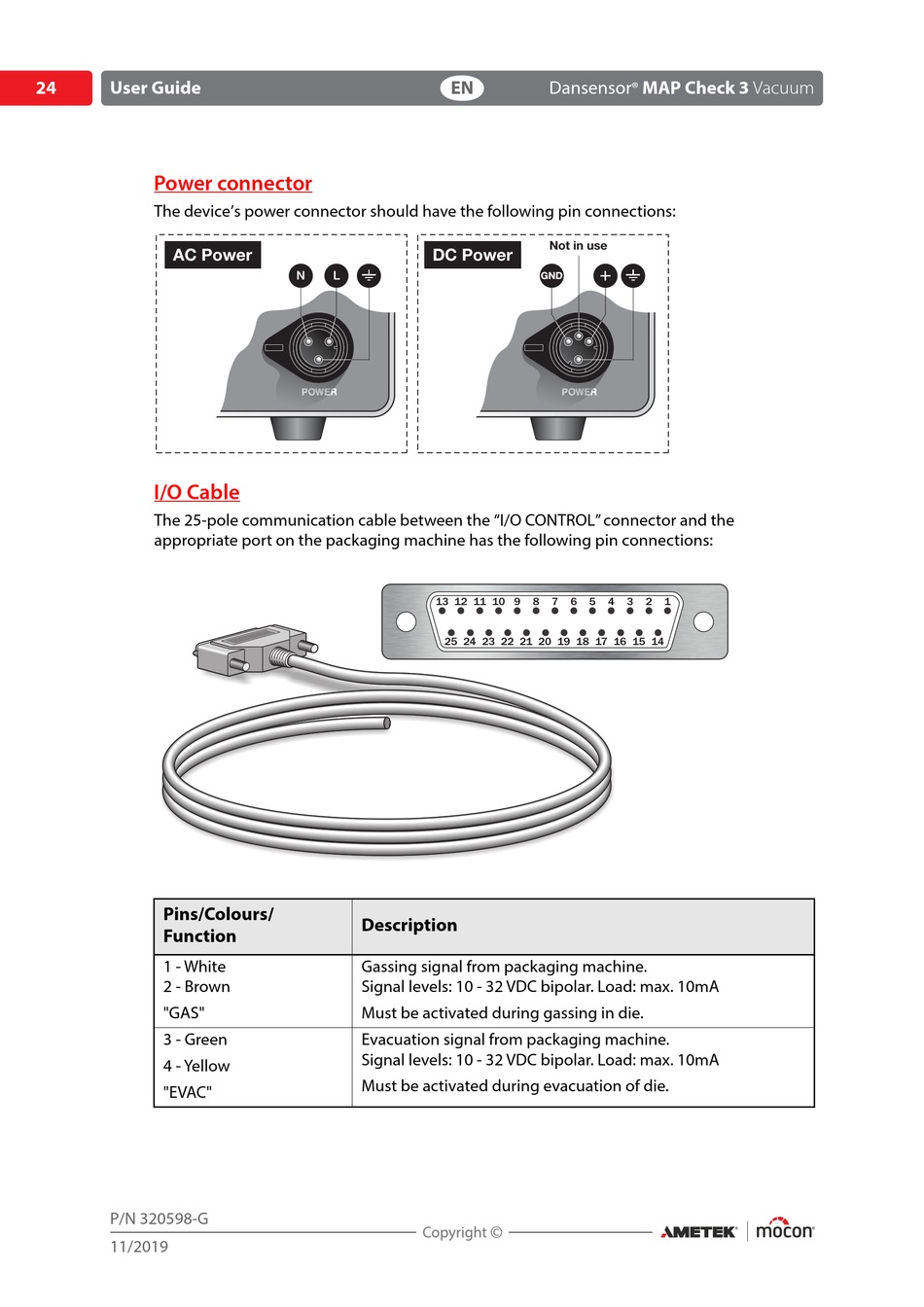

Power connector

The device's power connector should have the following pin connections:
AC Power

I/O Cable

The 25-pole communication cable between the "I/O CONTROL" connector and the
appropriate port on the packaging machine has the following pin connections:
Pins/Colours/
Function
1 - White
2 - Brown
"GAS"
3 - Green
4 - Yellow
"EVAC"
P/N 320598-G
11/2019
EN
DC Power
N L
13 12
25 24
Description
Gassing signal from packaging machine.
Signal levels: 10 - 32 VDC bipolar. Load: max. 10mA
Must be activated during gassing in die.
Evacuation signal from packaging machine.
Signal levels: 10 - 32 VDC bipolar. Load: max. 10mA
Must be activated during evacuation of die.
Dansensor MAP Check 3 Vacuum
®
Not in use
GND
11 10 9 8 7 6 5 4 3 2
23 22 21 20 19 18 17 16 15
1
14
