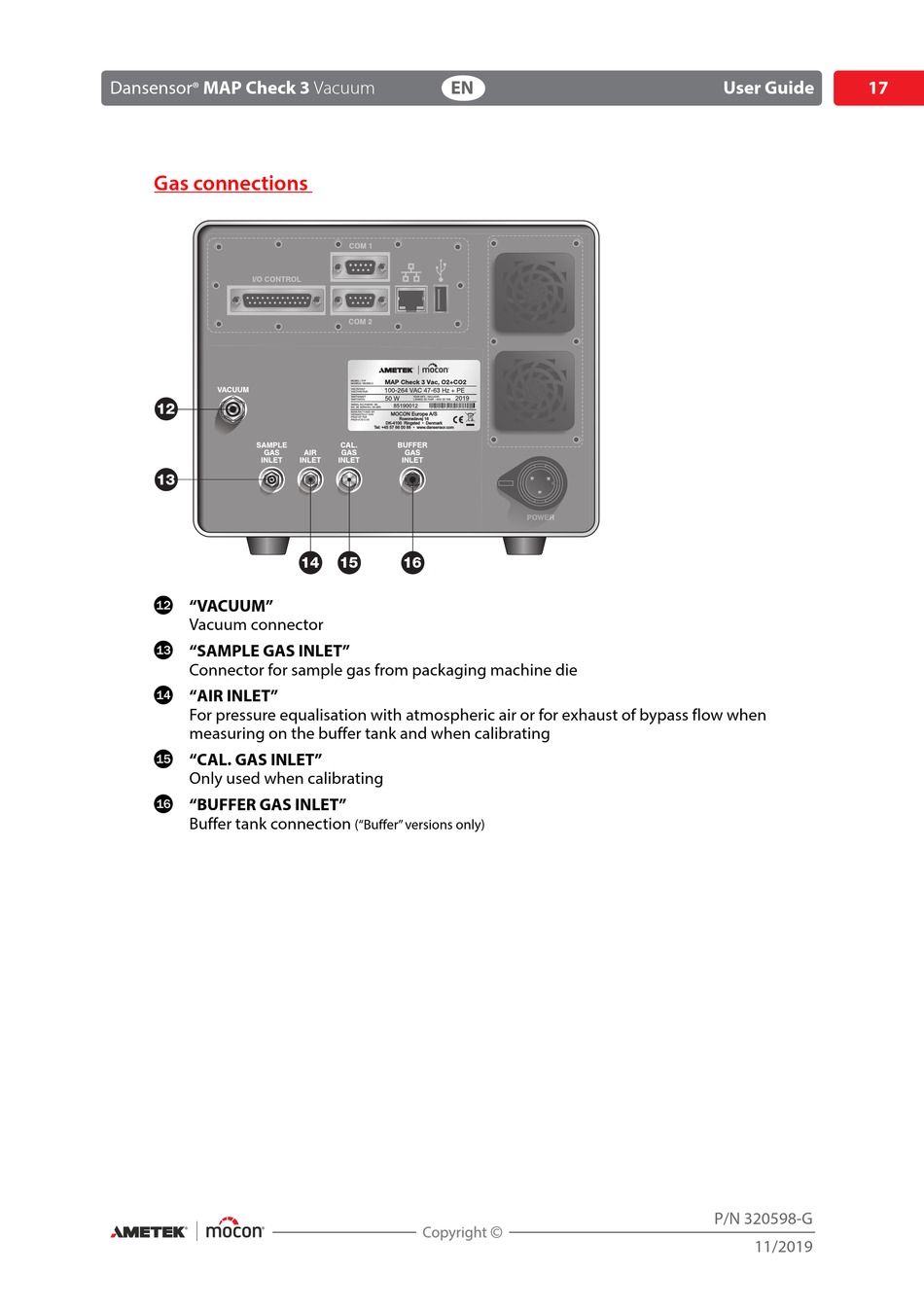

Gas connections
"VACUUM"
Vacuum connector
"SAMPLE GAS INLET"
Connector for sample gas from packaging machine die
"AIR INLET"
For pressure equalisation with atmospheric air or for exhaust of bypass flow when
measuring on the buffer tank and when calibrating
"CAL. GAS INLET"
Only used when calibrating
"BUFFER GAS INLET"
Buffer tank connection
EN
("Buffer" versions only)
User Guide
17
P/N 320598-G
11/2019
