60 User Guide

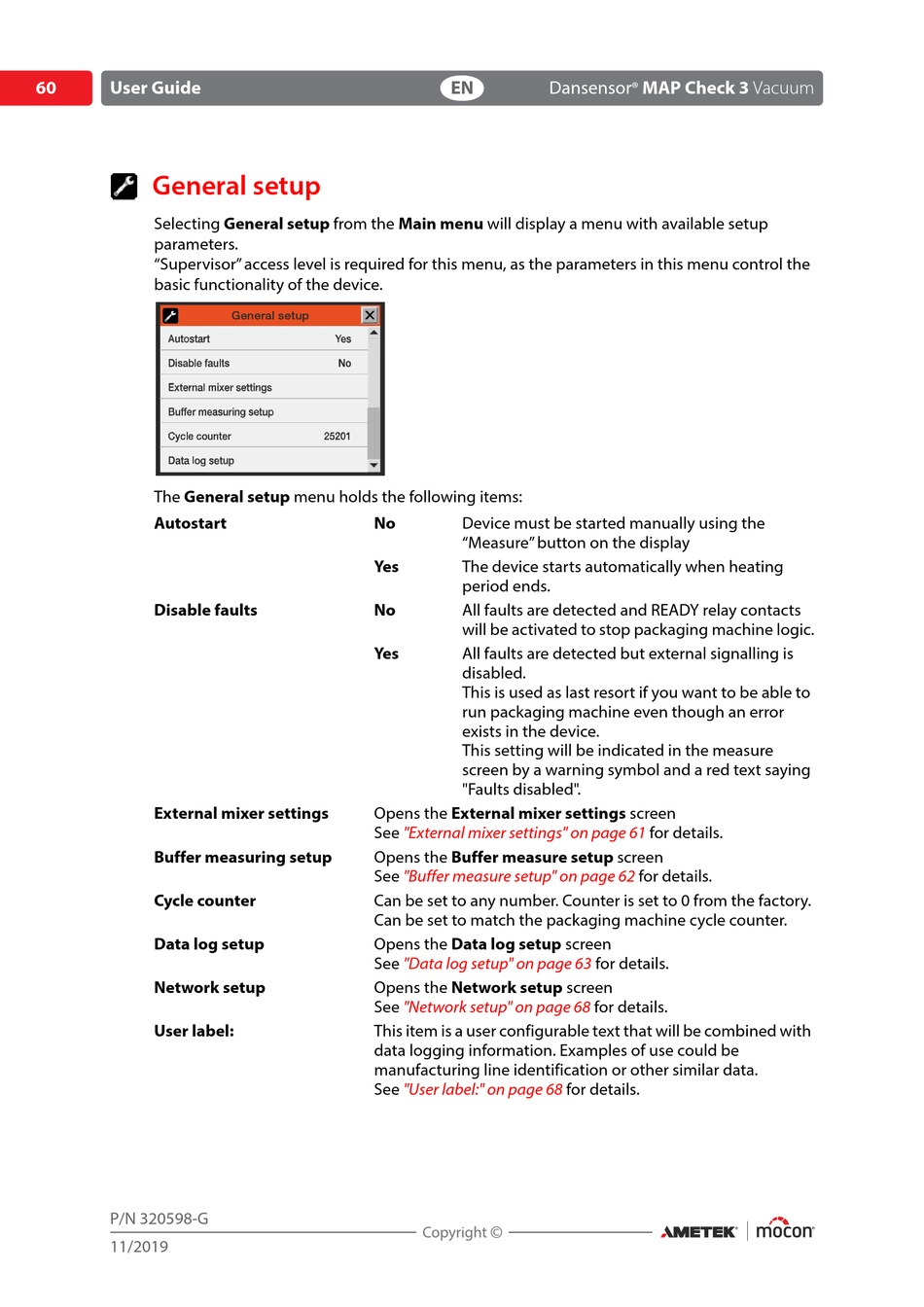

General setup

Selecting General setup from the Main menu will display a menu with available setup
parameters.
"Supervisor" access level is required for this menu, as the parameters in this menu control the
basic functionality of the device.
The General setup menu holds the following items:
Autostart
Disable faults
External mixer settings
Buffer measuring setup
Cycle counter
Data log setup
Network setup
User label:
P/N 320598-G
11/2019
General setup
No
Yes
No
Yes
Opens the External mixer settings screen
See "External mixer settings" on page 61
Opens the Buffer measure setup screen
See "Buffer measure setup" on page 62
Can be set to any number. Counter is set to 0 from the factory.
Can be set to match the packaging machine cycle counter.
Opens the Data log setup screen
See "Data log setup" on page 63
Opens the Network setup screen
See "Network setup" on page 68
This item is a user configurable text that will be combined with
data logging information. Examples of use could be
manufacturing line identification or other similar data.
See "User label:" on page 68
EN Dansensor
Device must be started manually using the
"Measure" button on the display
The device starts automatically when heating
period ends.
All faults are detected and READY relay contacts
will be activated to stop packaging machine logic.
All faults are detected but external signalling is
disabled.
This is used as last resort if you want to be able to
run packaging machine even though an error
exists in the device.
This setting will be indicated in the measure
screen by a warning symbol and a red text saying
"Faults disabled".
for details.
for details.
for details.
MAP Check 3 Vacuum
®
for details.
for details.
