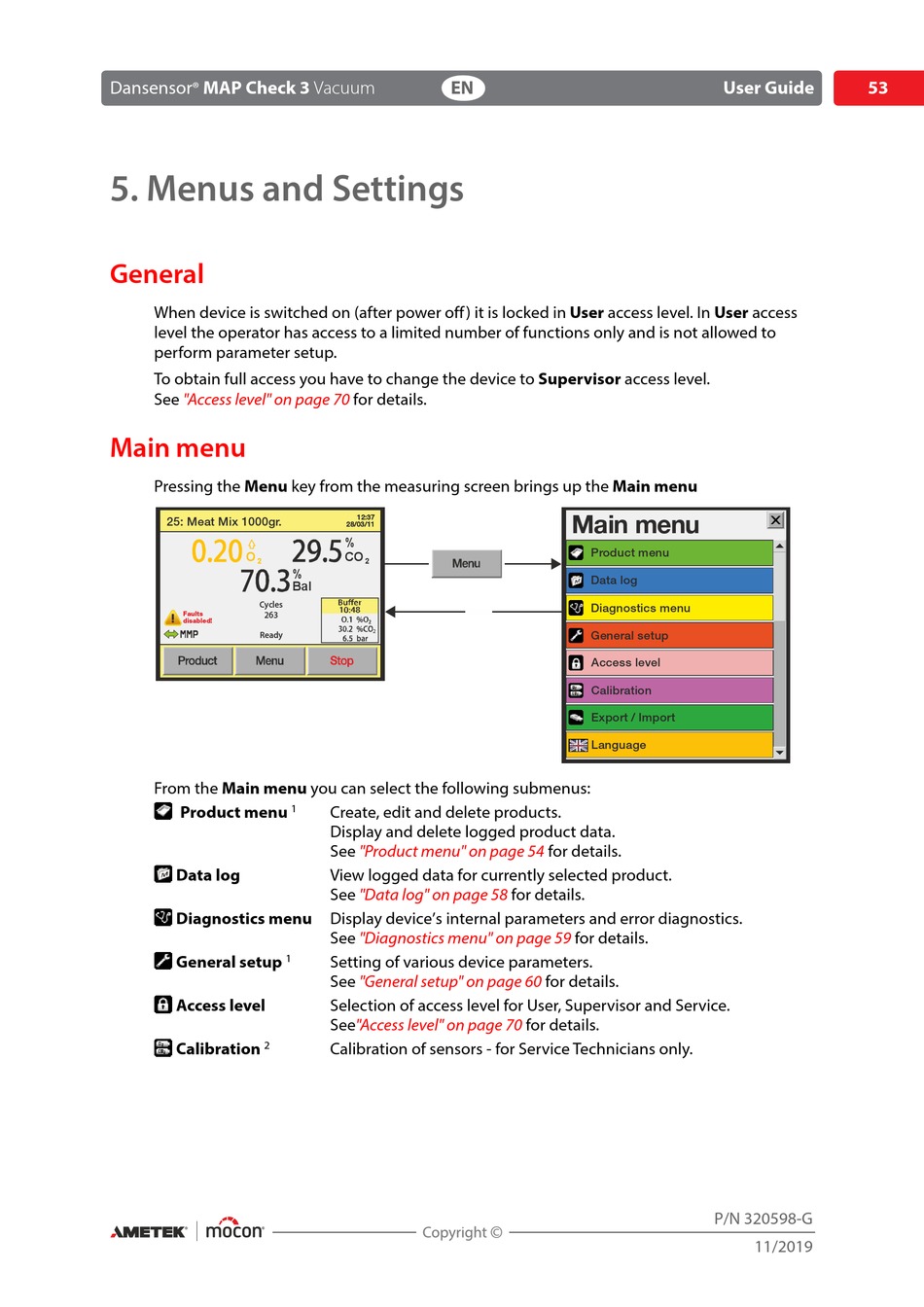

5. Menus and Settings

General

When device is switched on (after power off ) it is locked in User access level. In User access
level the operator has access to a limited number of functions only and is not allowed to
perform parameter setup.
To obtain full access you have to change the device to Supervisor access level.
See "Access level" on page 70

Main menu

Pressing the Menu key from the measuring screen brings up the Main menu
25: Meat Mix 1000gr.
O
2
Cycles
Faults
263
disabled!
Ready
From the Main menu you can select the following submenus:

Product menu
Data log
Diagnostics menu
General setup
Access level
2
Calibration
EN
for details.
12:37 12:37
28/03/11 28/03/11
%
CO
2
%
Bal
1
Create, edit and delete products.
Display and delete logged product data.
See "Product menu" on page 54
View logged data for currently selected product.
See "Data log" on page 58
Display device's internal parameters and error diagnostics.
See "Diagnostics menu" on page 59
1
Setting of various device parameters.
See "General setup" on page 60
Selection of access level for User, Supervisor and Service.
See"Access level" on page 70
Calibration of sensors - for Service Technicians only.
Main menu
Product menu
Data log
Diagnostics menu
General setup
Access level
Calibration
Export / Import
Language
for details.
for details.
for details.
for details.
for details.
