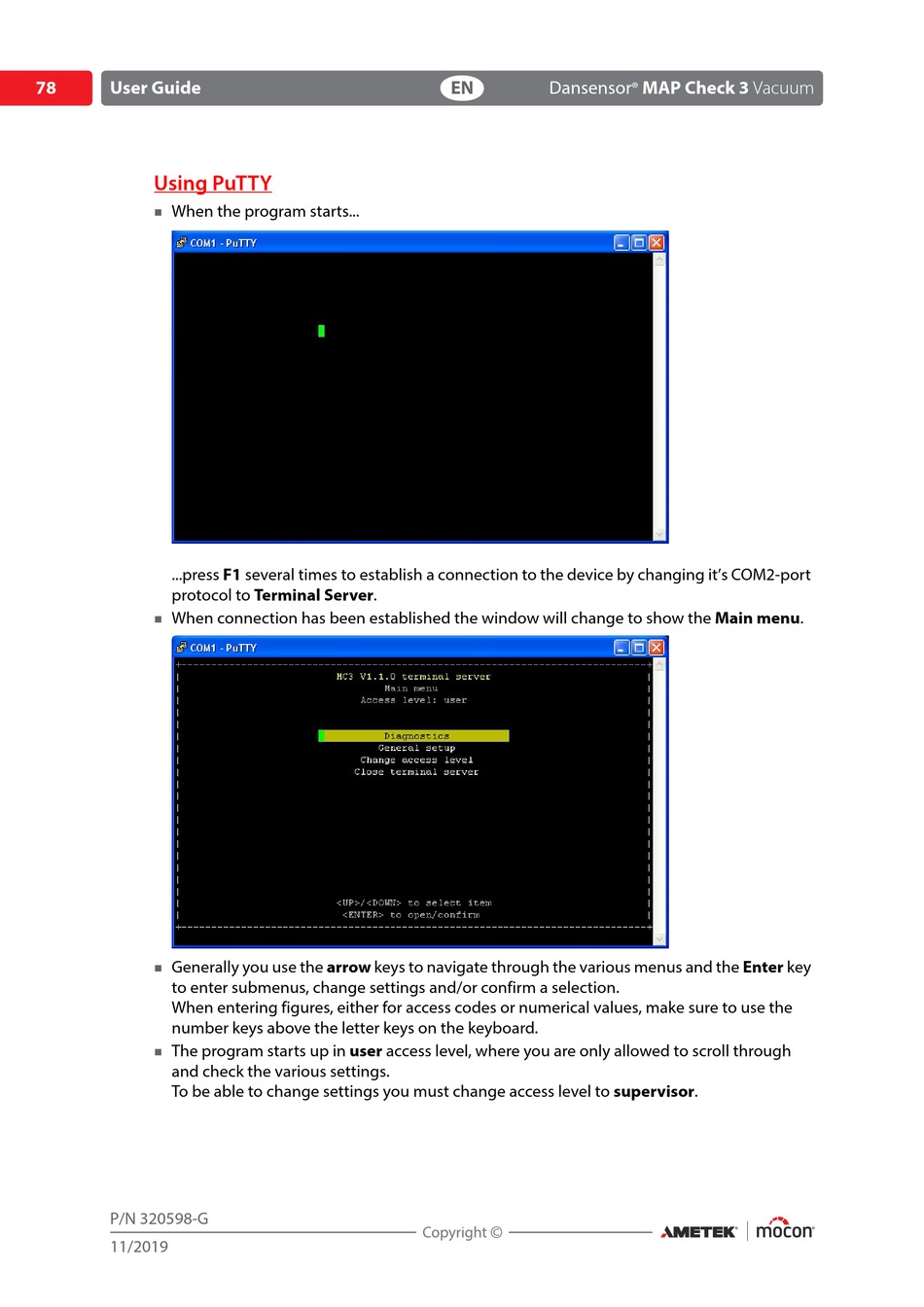

Using PuTTY

When the program starts...

...press F1 several times to establish a connection to the device by changing it's COM2-port
protocol to Terminal Server.
When connection has been established the window will change to show the Main menu.

Generally you use the arrow keys to navigate through the various menus and the Enter key

to enter submenus, change settings and/or confirm a selection.
When entering figures, either for access codes or numerical values, make sure to use the
number keys above the letter keys on the keyboard.
The program starts up in user access level, where you are only allowed to scroll through

and check the various settings.
To be able to change settings you must change access level to supervisor.
