Positioning The Poster Panel - Flo CoRe+ MAX Installation Manual
Pedestal and cable management system
Hide thumbs
Also See for CoRe+ MAX:
- Installation manual (27 pages) ,
- Installation manual (10 pages) ,
- Installation manual (15 pages)
Table of Contents
Advertisement
Image Reference
Number
1
2
3
8.2.
Positioning the Poster Panel
Follow the steps below to position the poster panel:
1.

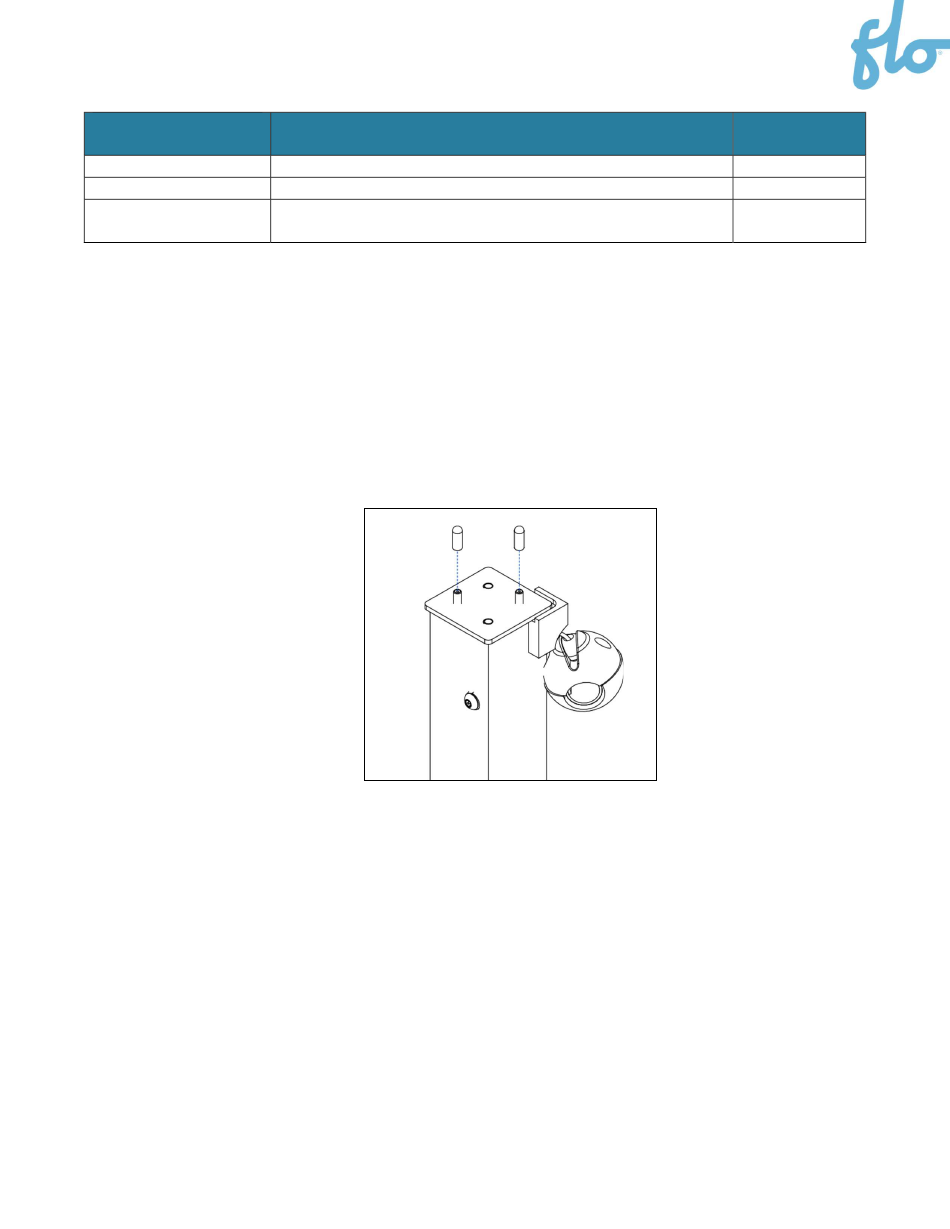

The top of the column has embedded screws with rubber caps and washers attached to them.
Remove them and set them aside.
Included Material
Poster panel (including 2 sides)
Attachment plate and screws
Bolts, washers, and split lock washer (max. torque: 30 LB-IN
[3.3 N-M])
Quantity
2
2
4 each
43
