7. Positioning the Cable Clamp

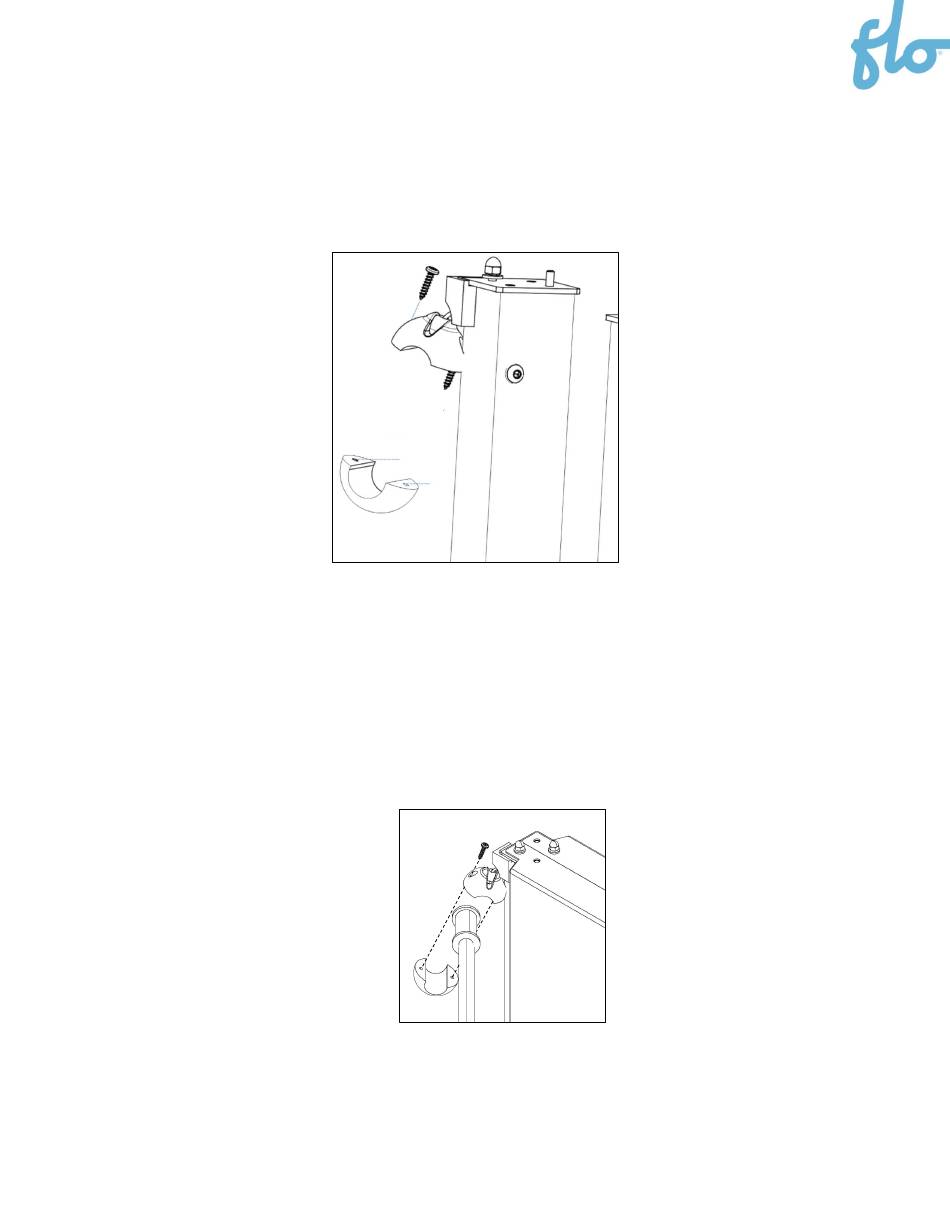

Follow the steps below to position the cable clamp:
1.
Pull on the cable management system cable to hold the cable clamp in your hand.
2. Remove the Phillips screws.
3. Plan to position the cable clamp 97'' (246.4 cm) from the output.
RECOMMENDATION: The cable portion between the clamp and the charging connector must not touch
the ground when the cable management system is completely retracted.
4. Apply the self-adhesive rubber band around the cable for protection purposes and to ensure that the
clamp can grip the cable.
5. Set the clamp over the rubber band and reinsert the screws into it by adjusting the torque of your tool
to 7 inches per pound.
6. Let the cable retract. Verify the clearance between the charging station cable and the ground.
