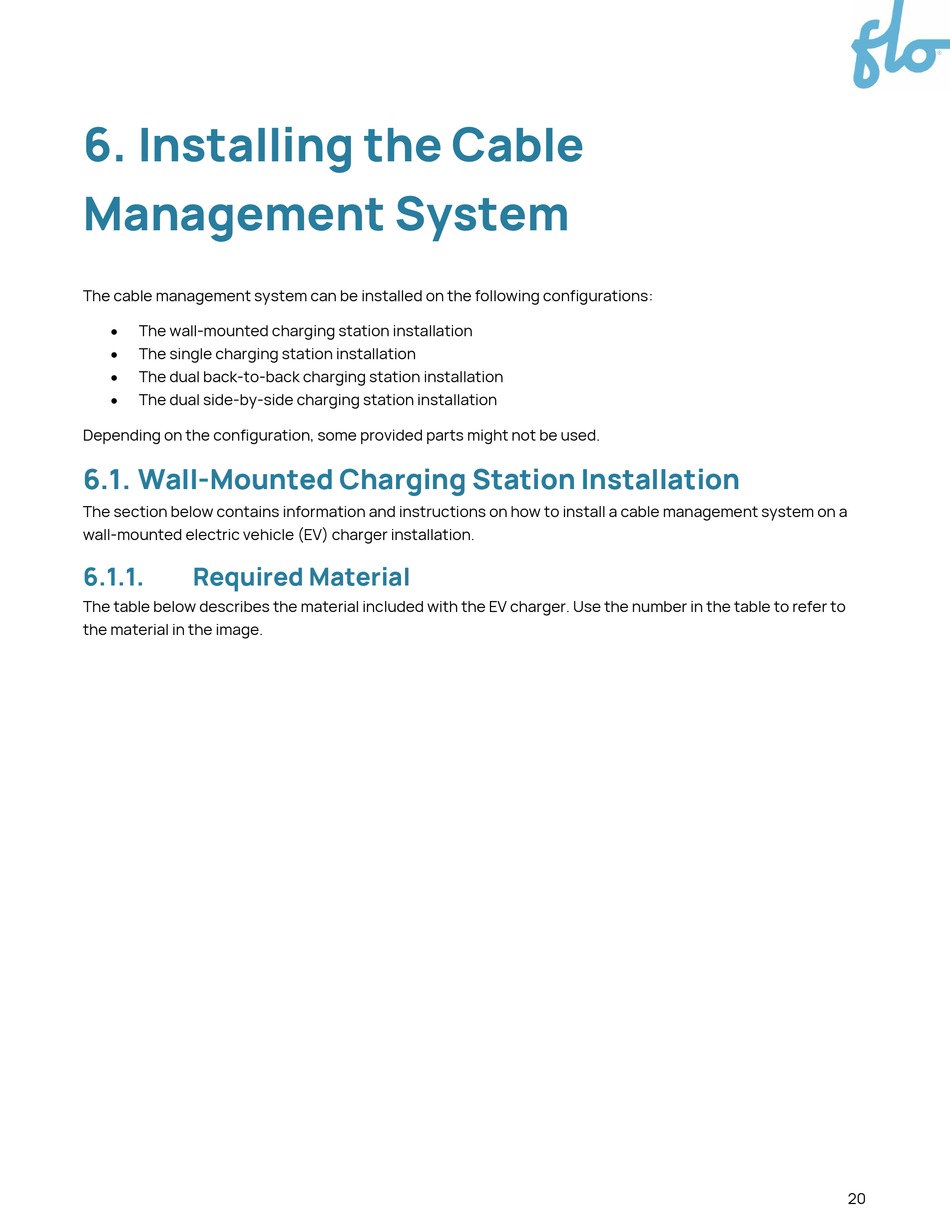

6. Installing the Cable
Management System
The cable management system can be installed on the following configurations:
The wall-mounted charging station installation
The single charging station installation
The dual back-to-back charging station installation
The dual side-by-side charging station installation
Depending on the configuration, some provided parts might not be used.
6.1. Wall-Mounted Charging Station Installation
The section below contains information and instructions on how to install a cable management system on a
wall-mounted electric vehicle (EV) charger installation.
6.1.1.
Required Material
The table below describes the material included with the EV charger. Use the number in the table to refer to
the material in the image.
