6.3.3.

Installing the Back-to-Back Cable Management System

1.

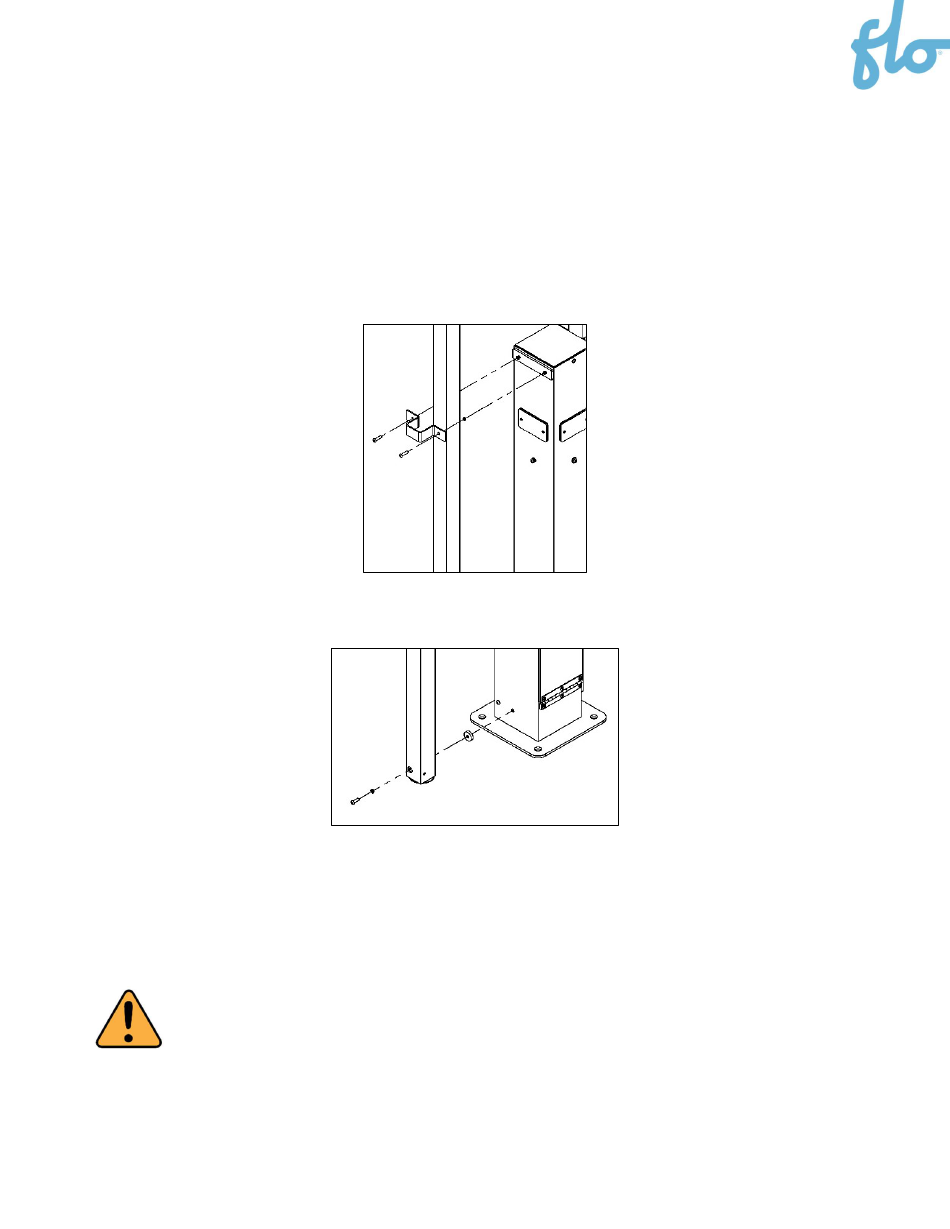

Install the rectangular spacing shim, place the column, then install the upper mount bracket on top.
Screw the parts together loosely with ¼-20 screws so that the cable management system column is held in
place but still moves freely to allow the lower mounting hardware to be installed.
RECOMMENDATION:
To position the column, when standing in front of the charging station, make sure to
place the output of the cable management system on the outside of the column.
2. Secure the cable management system column by placing the round spacing shim on the column and
tightening the screws to firmly secure the column.
3. Secure the top bracket.
4. Install the empty column on the opposite side of the charging station by following steps 1 to 3 above.
5. Proceed with the positioning of the cable clamp. Refer to the
section 7.
(
).
6. Install the poster panel. Refer to the
CAUTION: This pedestal is certified as an electrical enclosure, and any alteration must comply
with local regulations.
Positioning the Cable Clamp
Positioning the Poster Panel
section
section 8.2.
section (
).
33
