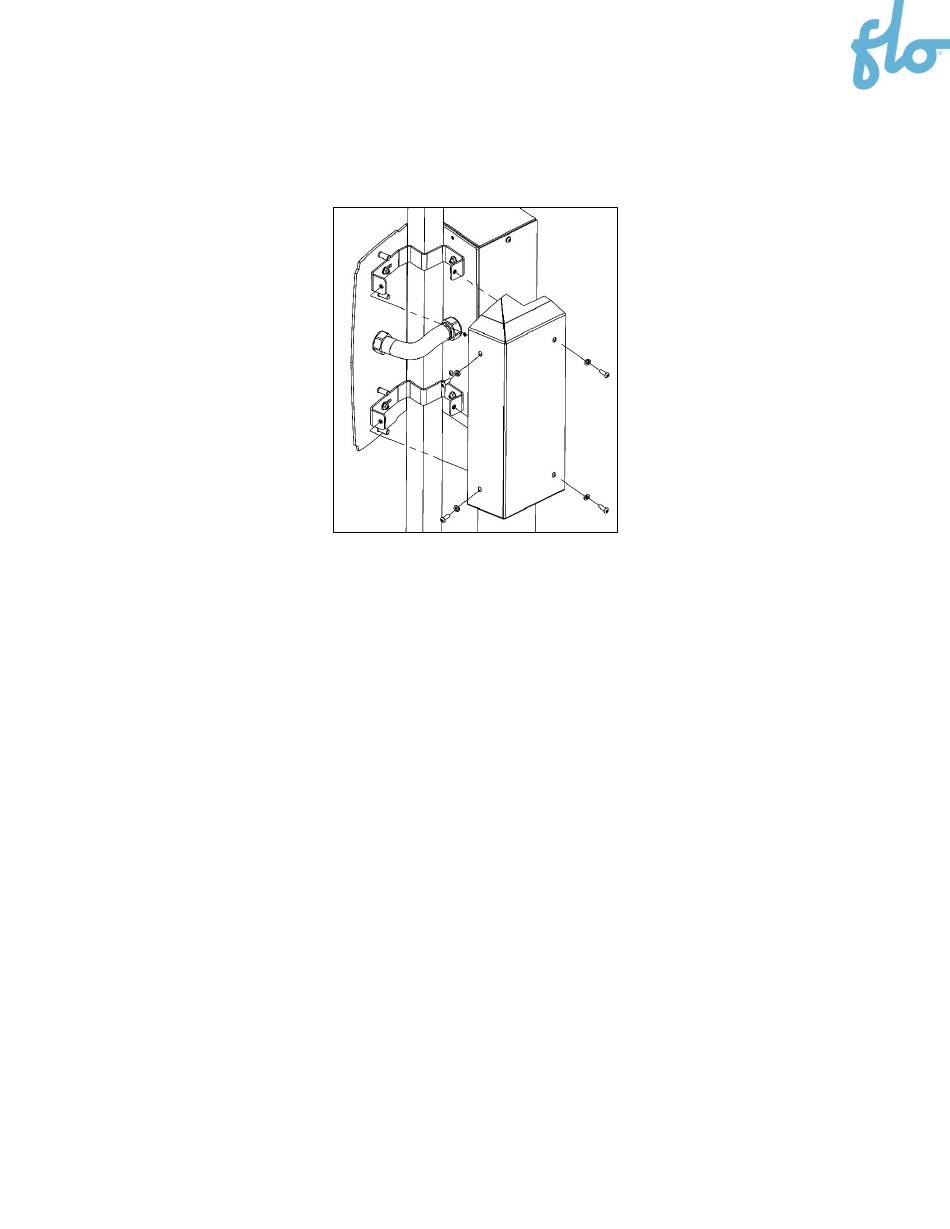

10. Secure the back cover to the column mount brackets with the 4 screws.
11. Install the second column on the opposite side of the charging station by following steps 1 to 10
above.
12. Install or reinstall the charging stations. Refer to the
section
section 5.
(
) and the
13. Position the cable clamp. Refer to the
14. Install the poster panel. Refer to the
Installing the Pedestal and Charging Station
CoRe+ MAX Installation Guide
Positioning the Cable Clamp
Poster Panel Installation
as needed.
section 7.
section (
section 8.
section (
).
).
39
