Flo CoRe+ MAX Installation Manual page 26

Pedestal and cable management system
Hide thumbs Also See for CoRe+ MAX:
Table of Contents

Advertisement

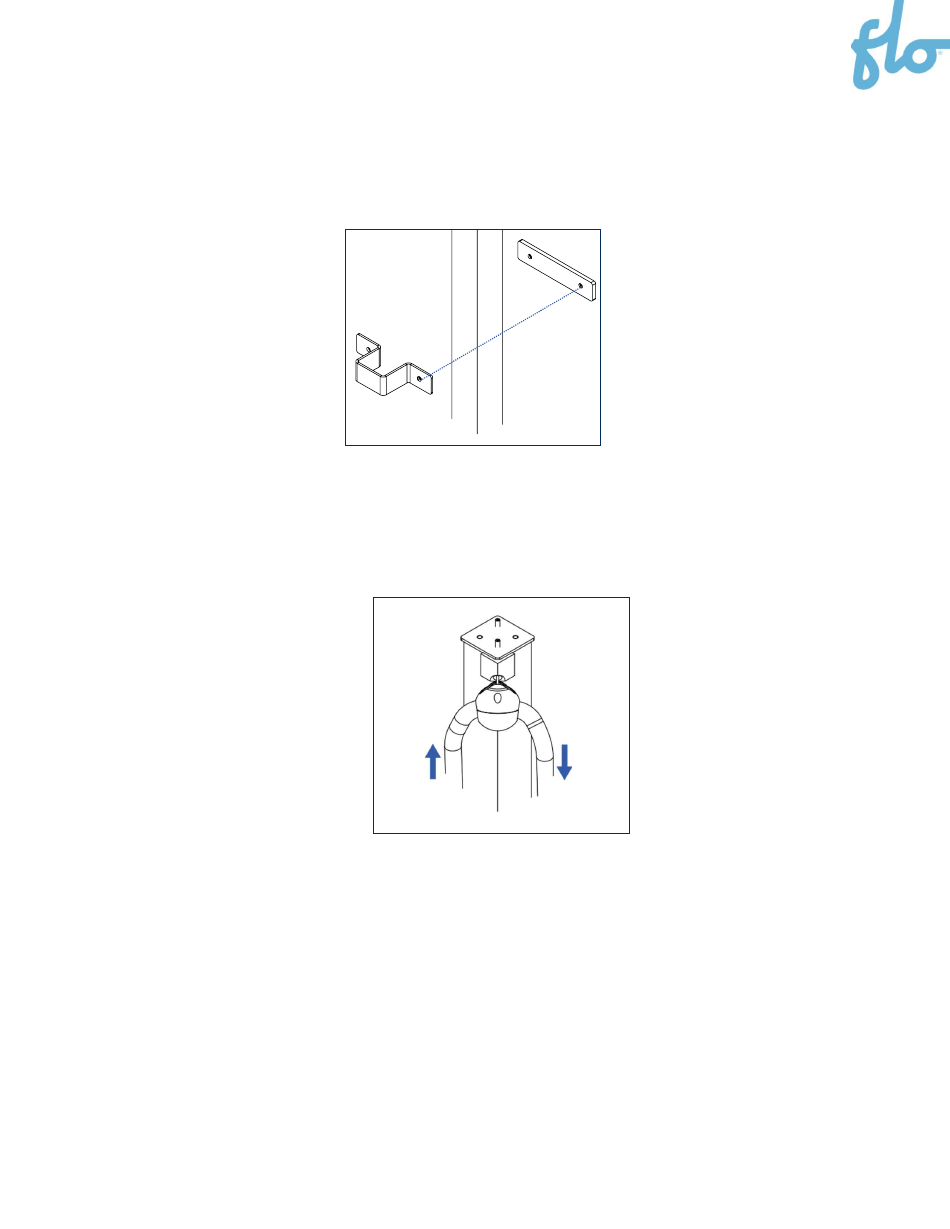

4. Install the top bracket and the rectangular spacing shim while inserting the column between the
parts. Once you ensure that the bracket is flush with the plate and the assembly is level, secure it with
the appropriate screws (according to the wall type).
5. Verify the column's angle with a level.
6. Position the cable clamp. Refer to the
information.
7. Pull on the cable management system's cable a few times to ensure that all the parts are moving
freely.
Positioning the Cable Clamp
8.
section 7.
section (
) for more
