6.2.3.

Cable Management System Installation

1.

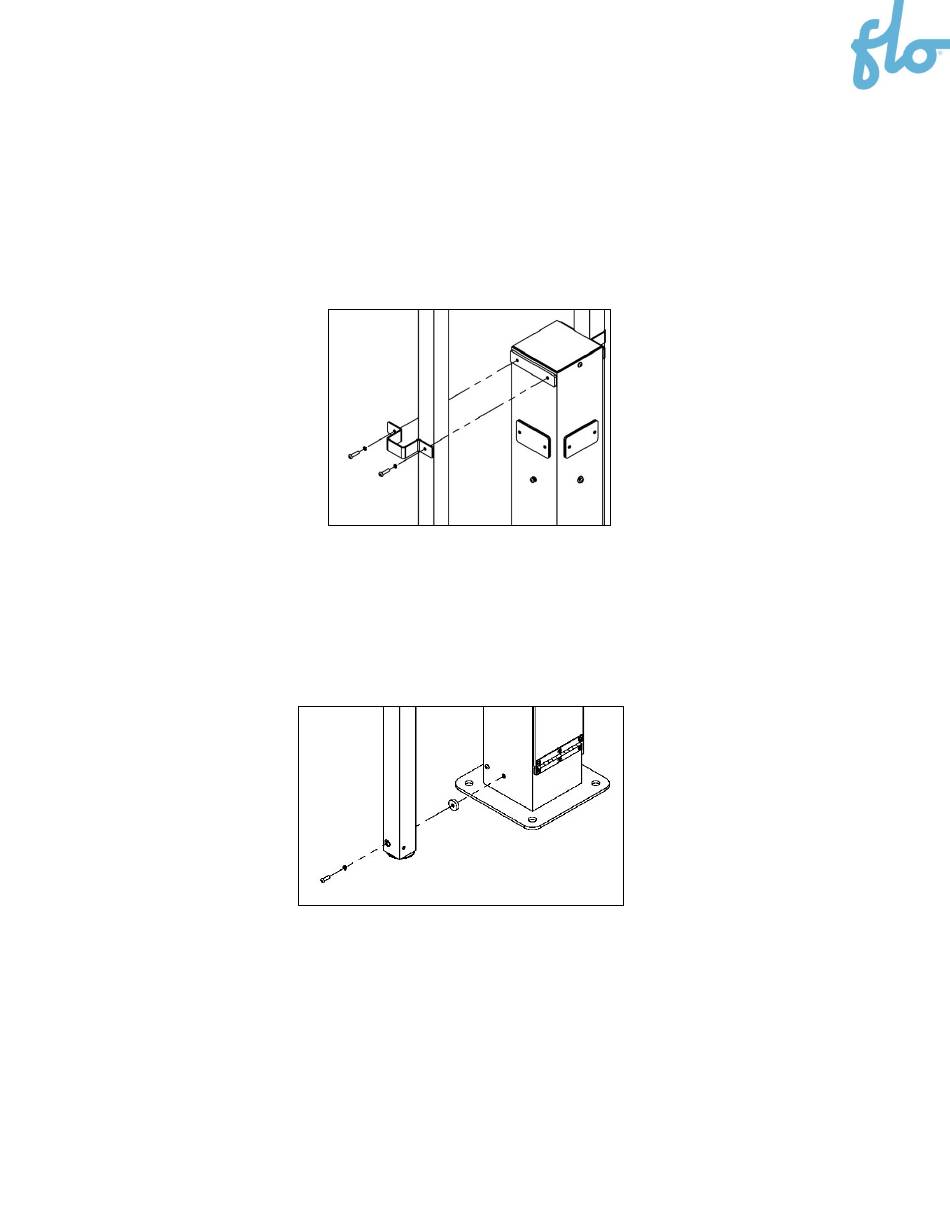

Install the rectangular spacing shim, place the column, then install the upper mount bracket on top.
Screw the parts together loosely with ¼-20 screws or self-drilling screws. The cable management
system column is held in place but still moves freely to allow the lower mounting hardware to be
installed.
RECOMMENDATION:
To position the column, when standing in front of the charging station, make sure to
place the output of the cable management system on the exterior side of the pedestal.
2. Secure the cable management system column by placing the round spacing shim between the
pedestal and the column and tightening the screws to firmly secure the column.
3. Secure the top bracket by tightening the screws.
4. Install the empty column on the opposite side of the charging station by following steps 1 to 3 above.
5. Proceed with the positioning of the cable clamp. Refer to the
section 7.
(
).
6. Install the poster panel. Refer to the
Positioning the Cable Clamp
Positioning the Poster Panel
section
section 8.2.
section (
).
30
