Before Getting Started
1.
Make sure to remove the security screw used to hold the counterweight during transport when unpacking
the Cable Management System (CMS).
2.
Install a cable management system on a new station OR install a cable management system on an
existing station by following the steps below:
6.2.2.1.
Before Installing a Cable Management System on a New Single
Charging Station
1.
First, install the pedestal and the charging station. Refer to the Installing the Pedestal and Charging
Station section for more information and the

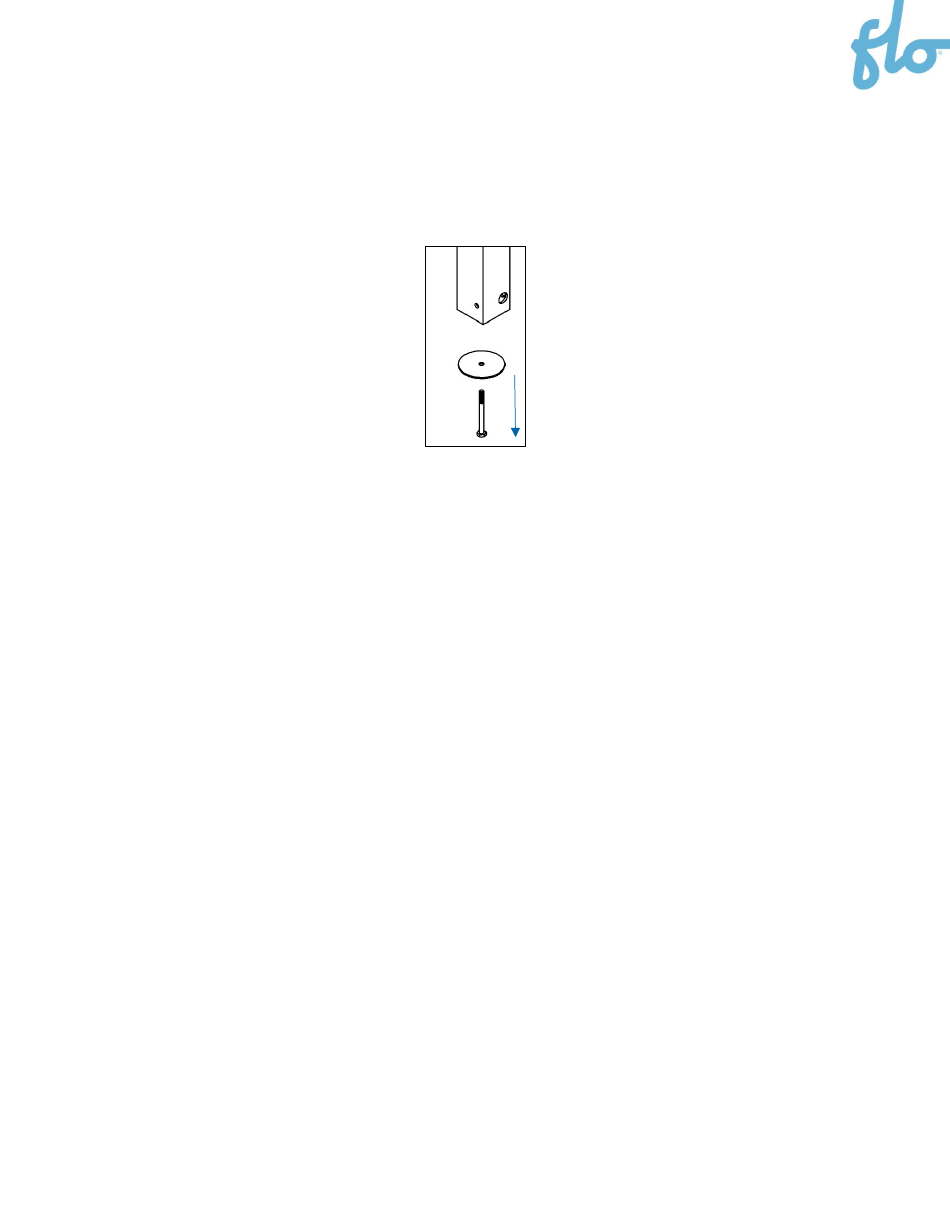

2. Then, install the cable management system as indicated below. Use the ¼-20 screws provided in the
package.
OR
6.2.2.2.
Before Installing a Cable Management System on an Existing
Single Charging Station
1.
Install the mount bracket for the column with the cable management system and the empty column.
