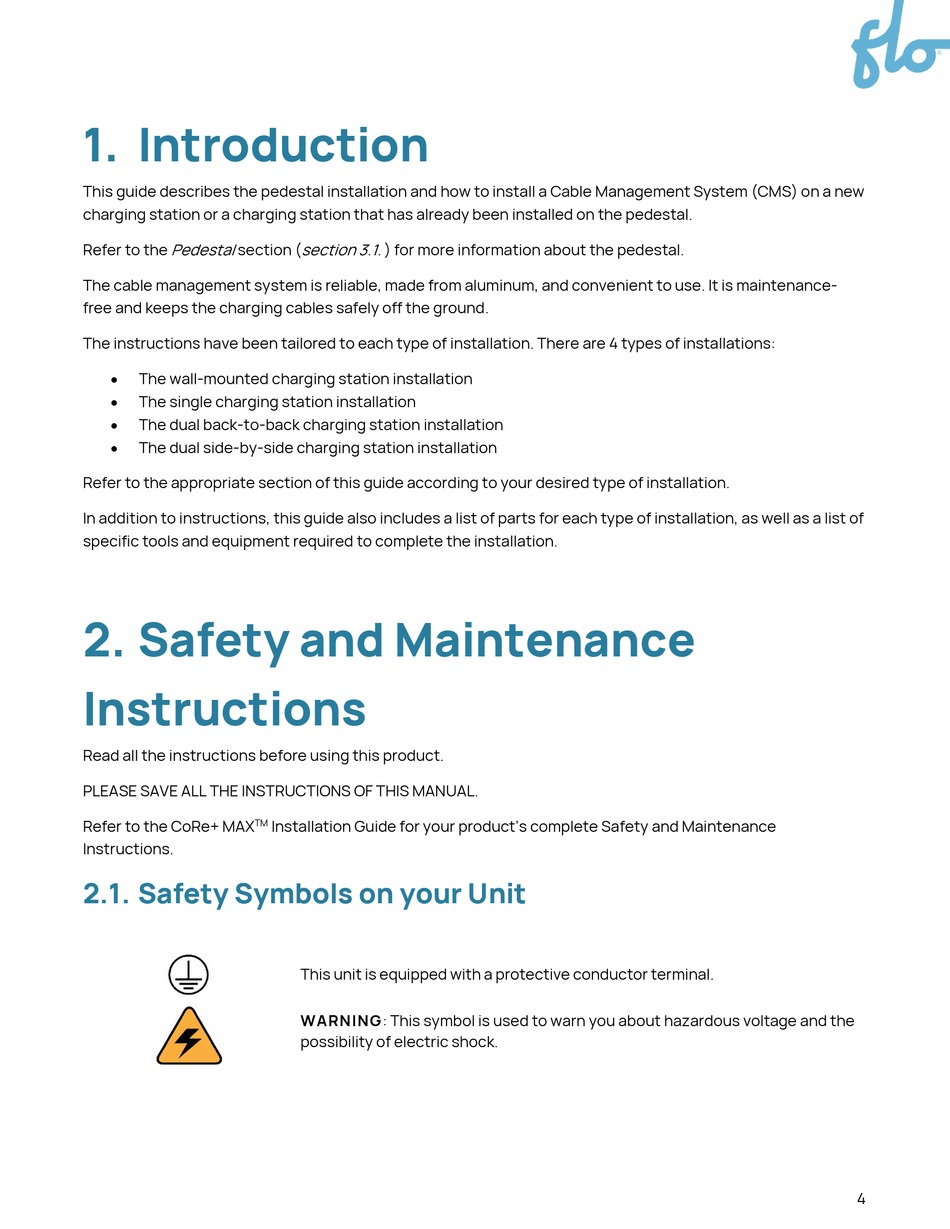

1. Introduction

This guide describes the pedestal installation and how to install a Cable Management System (CMS) on a new
charging station or a charging station that has already been installed on the pedestal.
Pedestal
Refer to the section (
The cable management system is reliable, made from aluminum, and convenient to use. It is maintenance-
free and keeps the charging cables safely off the ground.
The instructions have been tailored to each type of installation. There are 4 types of installations:
The wall-mounted charging station installation

The single charging station installation

The dual back-to-back charging station installation

The dual side-by-side charging station installation

Refer to the appropriate section of this guide according to your desired type of installation.
In addition to instructions, this guide also includes a list of parts for each type of installation, as well as a list of
specific tools and equipment required to complete the installation.
2. Safety and Maintenance
Instructions
Read all the instructions before using this product.
PLEASE SAVE ALL THE INSTRUCTIONS OF THIS MANUAL.
Refer to the CoRe+ MAX
TM
Instructions.

2.1. Safety Symbols on your Unit

section 3.1.
) for more information about the pedestal.
Installation Guide for your product's complete Safety and Maintenance
This unit is equipped with a protective conductor terminal.
WARNING: This symbol is used to warn you about hazardous voltage and the
possibility of electric shock.
4
