3.3.3.

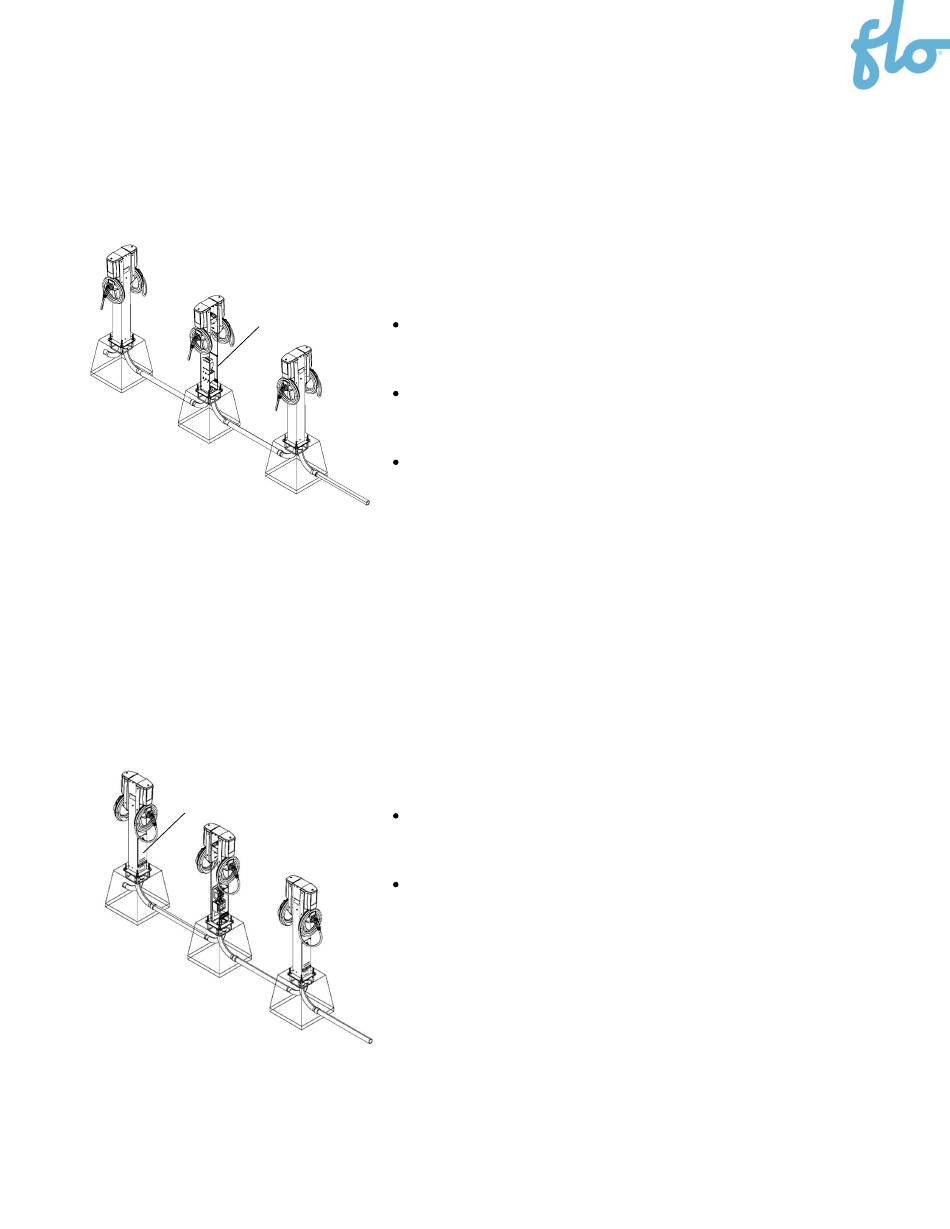

Cascading Back-to-Back Station Pedestals – Charging
Stations on Front and Back
Cascading dual back-to-back station pedestals with charging stations on the front and back have the
following characteristics:
3.3.4.
Cascading Back-to-Back Station Pedestals – Charging
Stations on the Sides
Cascading dual back-to-back station pedestals with charging stations on the sides have the following
characteristics:
Access door side
When 2 charging station heads are placed on the front and
Access door side
back of the pedestal, they should be facing the parking space
they are serving.
When the heads are facing the parking space, the pedestal
access doors must be placed on the same side as one of the
charging stations, facing one of the parking spaces.
To have the access door on the same side as a charging
station, the conduit configuration must be side-by-side, as
shown.
When the charging station heads are positioned on the side of
the pedestal, the pedestal access door must be placed on the
same side as a charging station.
To have the access door on the same side as a charging
station, the conduit configuration must be back-to-back, as
shown.
13
