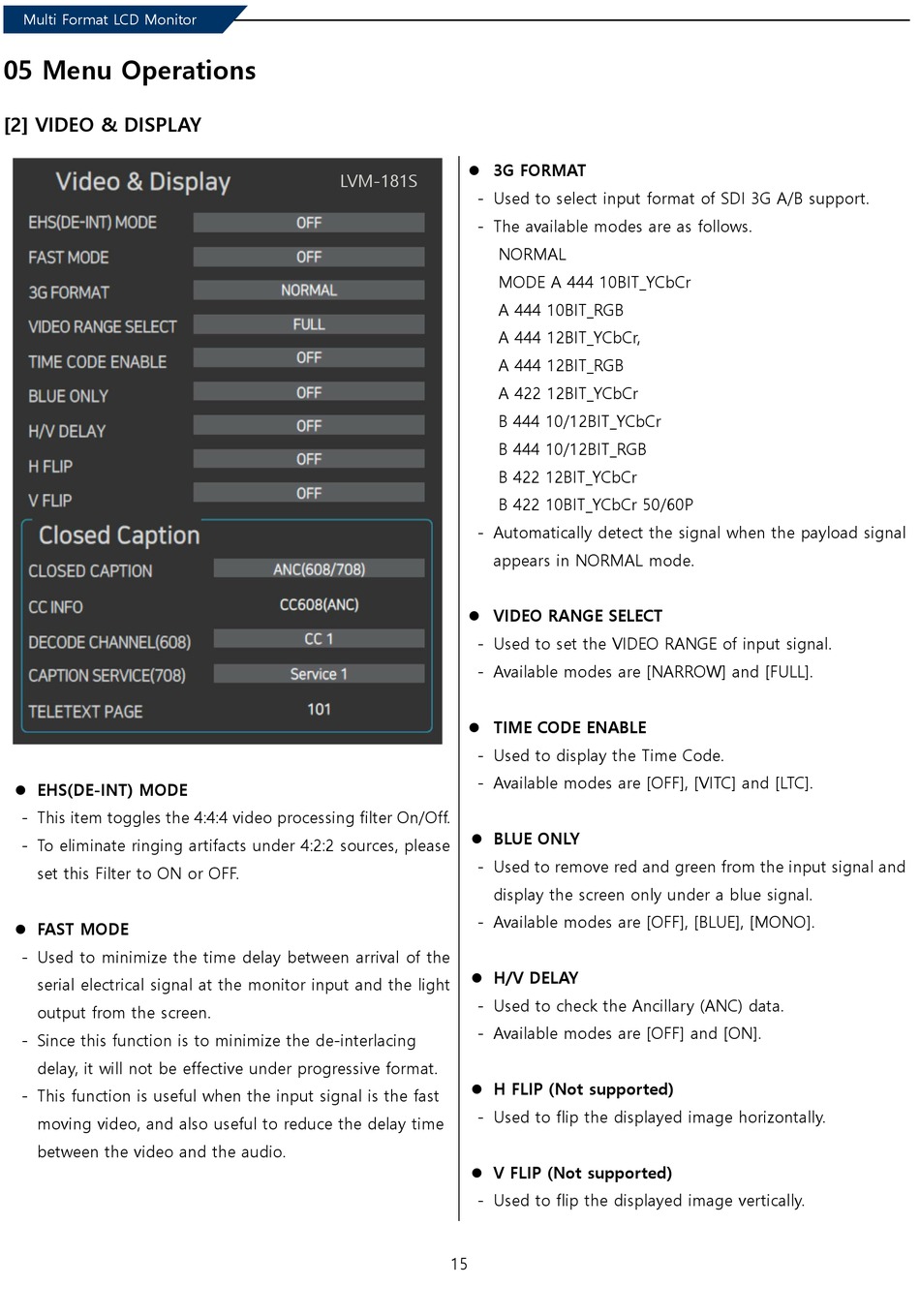

Video & Display - TVLogic LVM-181S Operation Manual

Multi Format LCD Monitor
05 Menu Operations
[2] VIDEO & DISPLAY
 EHS(DE-INT) MODE
- This item toggles the 4:4:4 video processing filter On/Off.
- To eliminate ringing artifacts under 4:2:2 sources, please
set this Filter to ON or OFF.
 FAST MODE
- Used to minimize the time delay between arrival of the
serial electrical signal at the monitor input and the light
output from the screen.
- Since this function is to minimize the de-interlacing
delay, it will not be effective under progressive format.
- This function is useful when the input signal is the fast
moving video, and also useful to reduce the delay time
between the video and the audio.
 3G FORMAT
LVM-181S
- Used to select input format of SDI 3G A/B support.
- The available modes are as follows.
NORMAL
MODE A 444 10BIT_YCbCr
A 444 10BIT_RGB
A 444 12BIT_YCbCr,
A 444 12BIT_RGB
A 422 12BIT_YCbCr
B 444 10/12BIT_YCbCr
B 444 10/12BIT_RGB
B 422 12BIT_YCbCr
B 422 10BIT_YCbCr 50/60P
- Automatically detect the signal when the payload signal
appears in NORMAL mode.
 VIDEO RANGE SELECT
- Used to set the VIDEO RANGE of input signal.
- Available modes are [NARROW] and [FULL].
 TIME CODE ENABLE
- Used to display the Time Code.
- Available modes are [OFF], [VITC] and [LTC].
 BLUE ONLY
- Used to remove red and green from the input signal and
display the screen only under a blue signal.
- Available modes are [OFF], [BLUE], [MONO].
 H/V DELAY
- Used to check the Ancillary (ANC) data.
- Available modes are [OFF] and [ON].
 H FLIP (Not supported)
- Used to flip the displayed image horizontally.
 V FLIP (Not supported)
- Used to flip the displayed image vertically.
15
