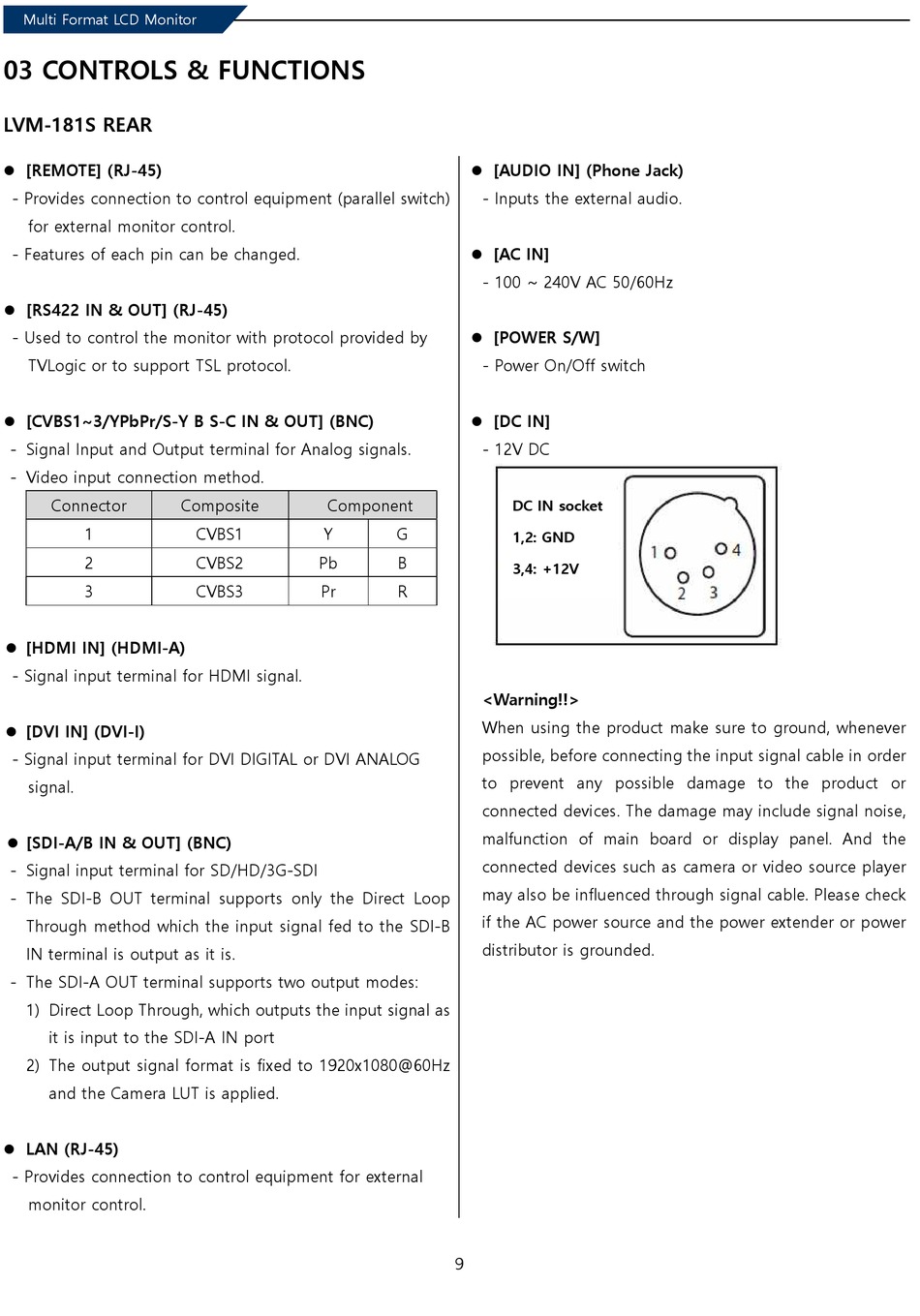

03 CONTROLS & FUNCTIONS
LVM-181S REAR
 [REMOTE] (RJ-45)
- Provides connection to control equipment (parallel switch)
for external monitor control.
- Features of each pin can be changed.
 [RS422 IN & OUT] (RJ-45)
- Used to control the monitor with protocol provided by
TVLogic or to support TSL protocol.
 [CVBS1~3/YPbPr/S-Y B S-C IN & OUT] (BNC)
- Signal Input and Output terminal for Analog signals.
- Video input connection method.
Connector
1
2
3
 [HDMI IN] (HDMI-A)
- Signal input terminal for HDMI signal.
 [DVI IN] (DVI-I)
- Signal input terminal for DVI DIGITAL or DVI ANALOG
signal.
 [SDI-A/B IN & OUT] (BNC)
- Signal input terminal for SD/HD/3G-SDI
- The SDI-B OUT terminal supports only the Direct Loop
Through method which the input signal fed to the SDI-B
IN terminal is output as it is.
- The SDI-A OUT terminal supports two output modes:
1) Direct Loop Through, which outputs the input signal as
it is input to the SDI-A IN port
2) The output signal format is fixed to 1920x1080@60Hz
and the Camera LUT is applied.
 LAN (RJ-45)
- Provides connection to control equipment for external
monitor control.
Composite Component
CVBS1 Y
CVBS2 Pb
CVBS3 Pr
 [AUDIO IN] (Phone Jack)
- Inputs the external audio.
 [AC IN]
- 100 ~ 240V AC 50/60Hz
 [POWER S/W]
- Power On/Off switch
 [DC IN]
- 12V DC
DC IN socket
G
1,2: GND
B
3,4: +12V
R
<Warning!!>
When using the product make sure to ground, whenever
possible, before connecting the input signal cable in order
to prevent any possible damage to the product or
connected devices. The damage may include signal noise,
malfunction of main board or display panel. And the
connected devices such as camera or video source player
may also be influenced through signal cable. Please check
if the AC power source and the power extender or power
distributor is grounded.
