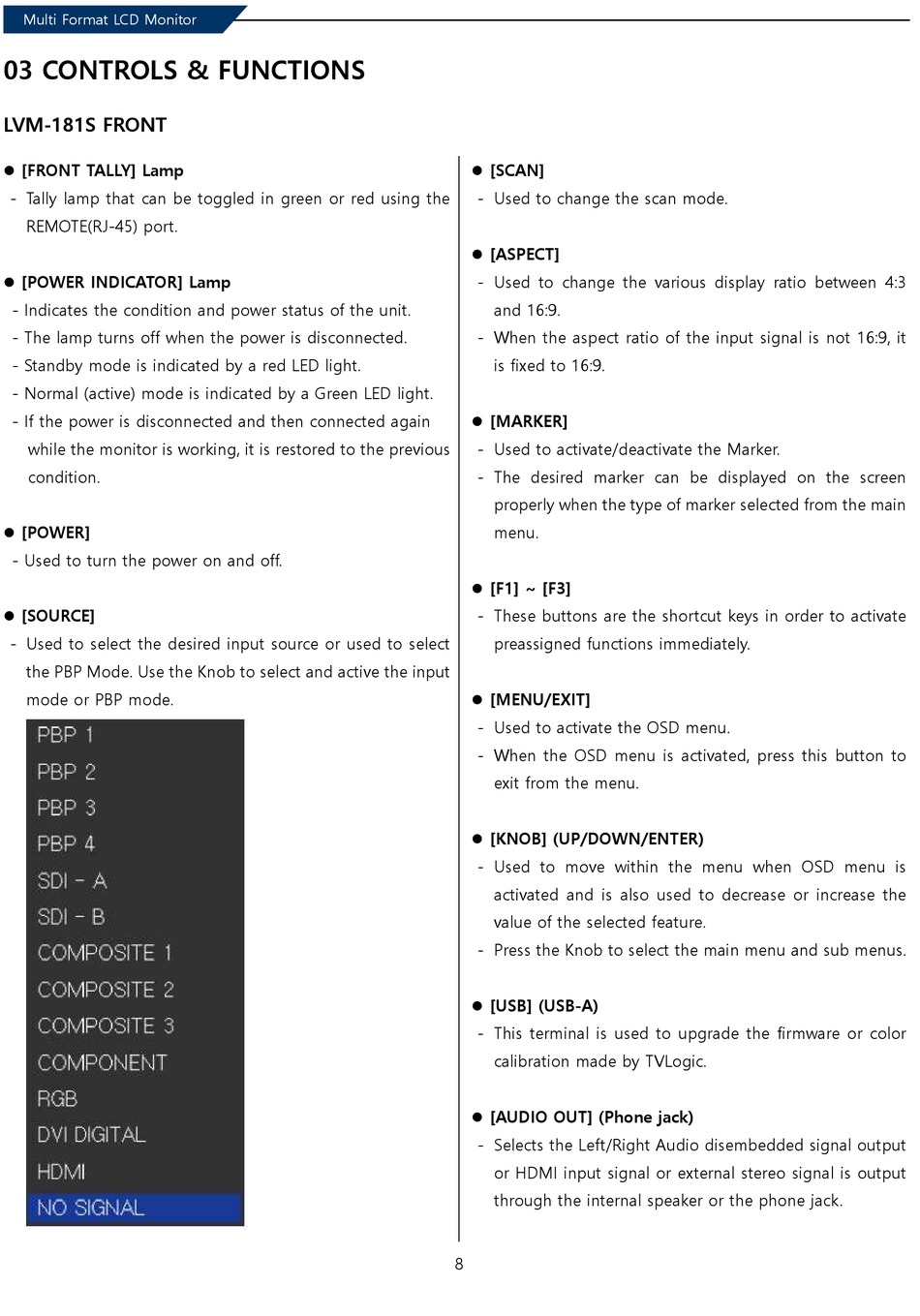

03 CONTROLS & FUNCTIONS
LVM-181S FRONT
 [FRONT TALLY] Lamp
- Tally lamp that can be toggled in green or red using the
REMOTE(RJ-45) port.
 [POWER INDICATOR] Lamp
- Indicates the condition and power status of the unit.
- The lamp turns off when the power is disconnected.
- Standby mode is indicated by a red LED light.
- Normal (active) mode is indicated by a Green LED light.
- If the power is disconnected and then connected again
while the monitor is working, it is restored to the previous
condition.
 [POWER]
- Used to turn the power on and off.
 [SOURCE]
- Used to select the desired input source or used to select
the PBP Mode. Use the Knob to select and active the input
mode or PBP mode.
 [SCAN]
- Used to change the scan mode.
 [ASPECT]
- Used to change the various display ratio between 4:3
and 16:9.
- When the aspect ratio of the input signal is not 16:9, it
is fixed to 16:9.
 [MARKER]
- Used to activate/deactivate the Marker.
- The desired marker can be displayed on the screen
properly when the type of marker selected from the main
menu.
 [F1] ~ [F3]
- These buttons are the shortcut keys in order to activate
preassigned functions immediately.
 [MENU/EXIT]
- Used to activate the OSD menu.
- When the OSD menu is activated, press this button to
exit from the menu.
 [KNOB] (UP/DOWN/ENTER)
- Used to move within the menu when OSD menu is
activated and is also used to decrease or increase the
value of the selected feature.
- Press the Knob to select the main menu and sub menus.
 [USB] (USB-A)
- This terminal is used to upgrade the firmware or color
calibration made by TVLogic.
 [AUDIO OUT] (Phone jack)
- Selects the Left/Right Audio disembedded signal output
or HDMI input signal or external stereo signal is output
through the internal speaker or the phone jack.
