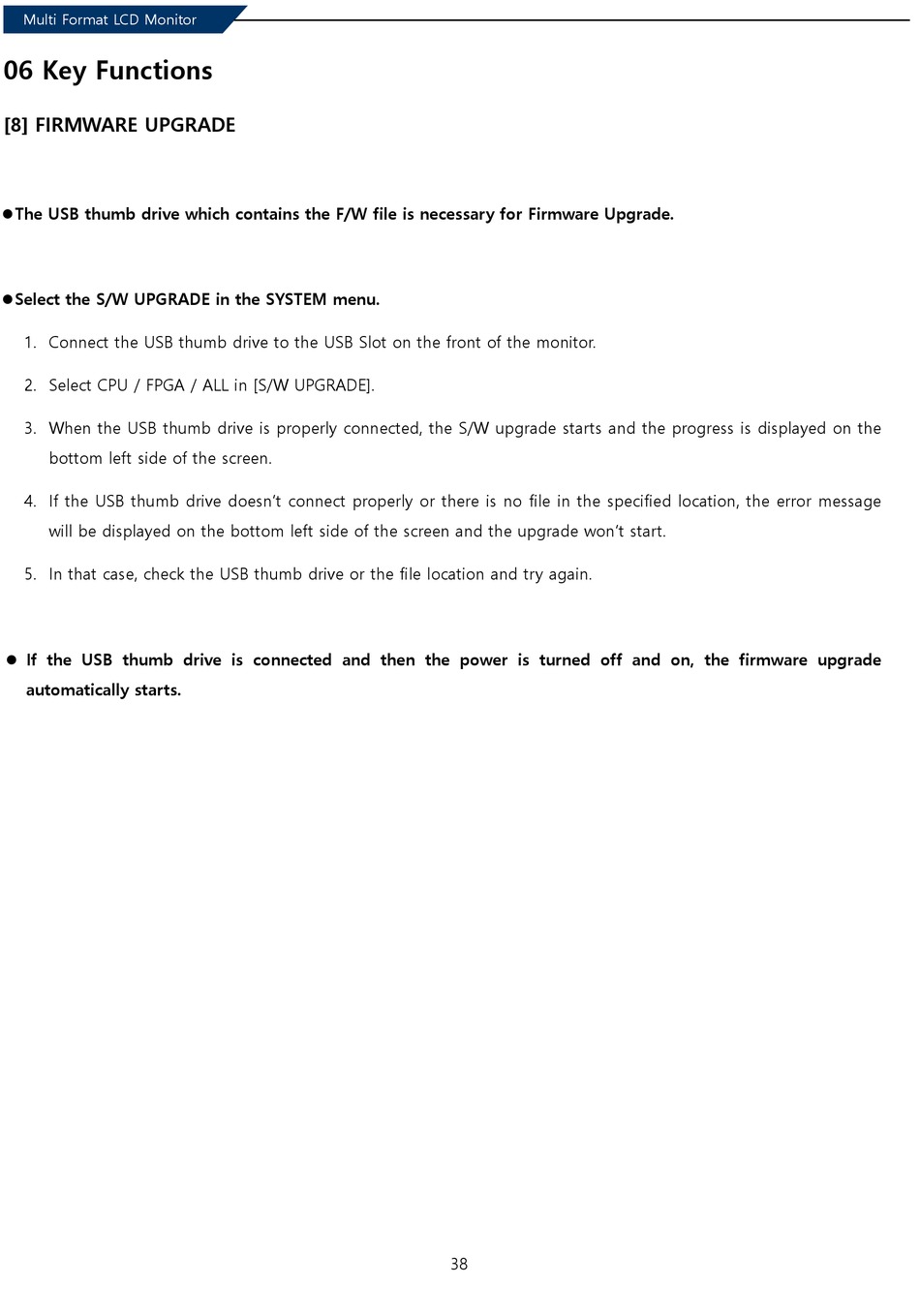

TVLogic LVM-181S Operation Manual page 38

Multi Format LCD Monitor
06 Key Functions
[8] FIRMWARE UPGRADE
 The USB thumb drive which contains the F/W file is necessary for Firmware Upgrade.
 Select the S/W UPGRADE in the SYSTEM menu.
1. Connect the USB thumb drive to the USB Slot on the front of the monitor.
2. Select CPU / FPGA / ALL in [S/W UPGRADE].
3. When the USB thumb drive is properly connected, the S/W upgrade starts and the progress is displayed on the
bottom left side of the screen.
4. If the USB thumb drive doesn't connect properly or there is no file in the specified location, the error message
will be displayed on the bottom left side of the screen and the upgrade won't start.
5. In that case, check the USB thumb drive or the file location and try again.
 If the USB thumb drive is connected and then the power is turned off and on, the firmware upgrade
automatically starts.
