Menu Tree & Adjustment - TVLogic LVM-181S Operation Manual

Multi Format LCD Monitor

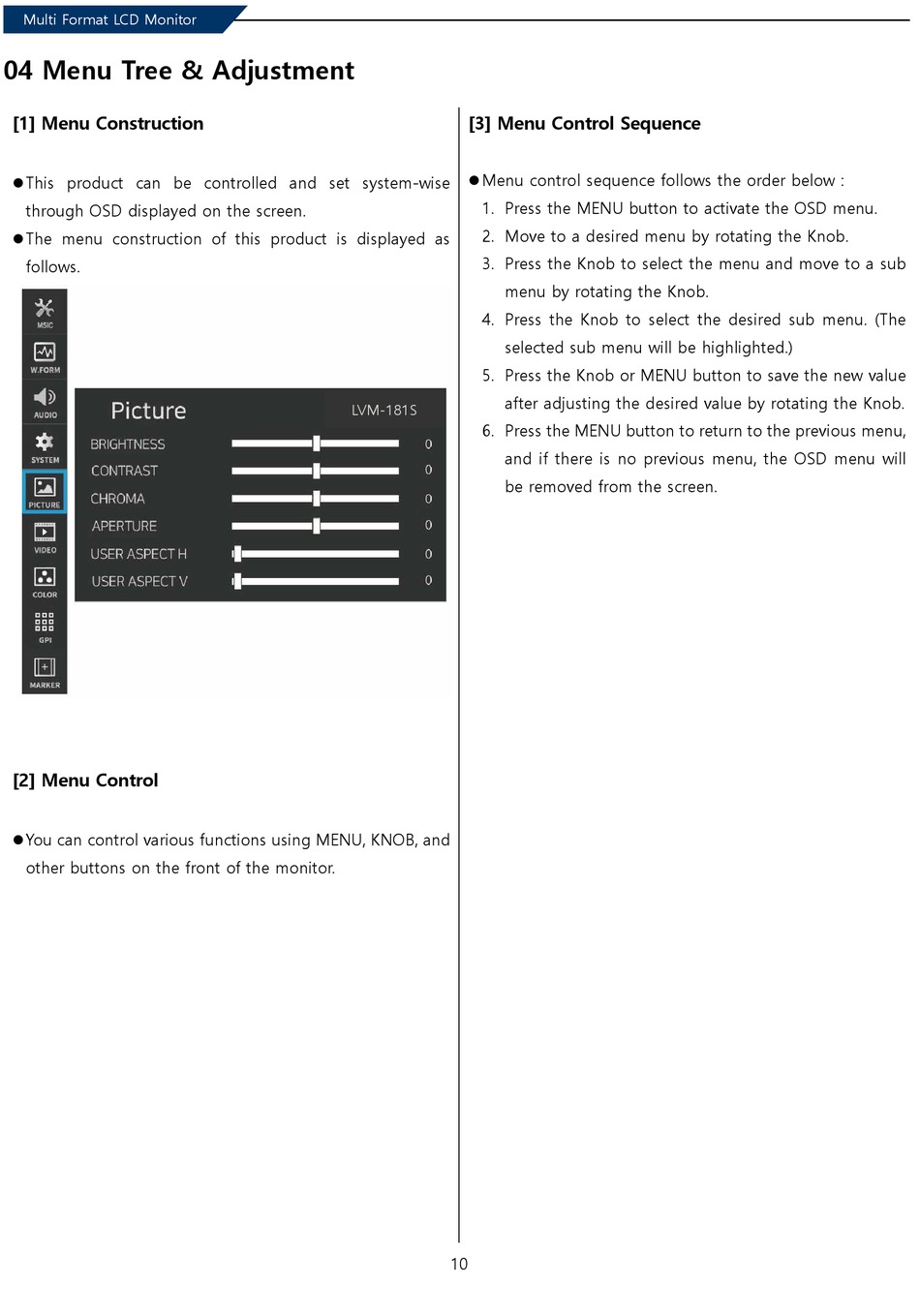

04 Menu Tree & Adjustment
[1] Menu Construction
 This product can be controlled and set system-wise
through OSD displayed on the screen.
 The menu construction of this product is displayed as
follows.
[2] Menu Control
 You can control various functions using MENU, KNOB, and
other buttons on the front of the monitor.
[3] Menu Control Sequence
 Menu control sequence follows the order below :
1. Press the MENU button to activate the OSD menu.
2. Move to a desired menu by rotating the Knob.
3. Press the Knob to select the menu and move to a sub
menu by rotating the Knob.
4. Press the Knob to select the desired sub menu. (The
selected sub menu will be highlighted.)
5. Press the Knob or MENU button to save the new value
after adjusting the desired value by rotating the Knob.
LVM-181S
6. Press the MENU button to return to the previous menu,
and if there is no previous menu, the OSD menu will
be removed from the screen.
10
