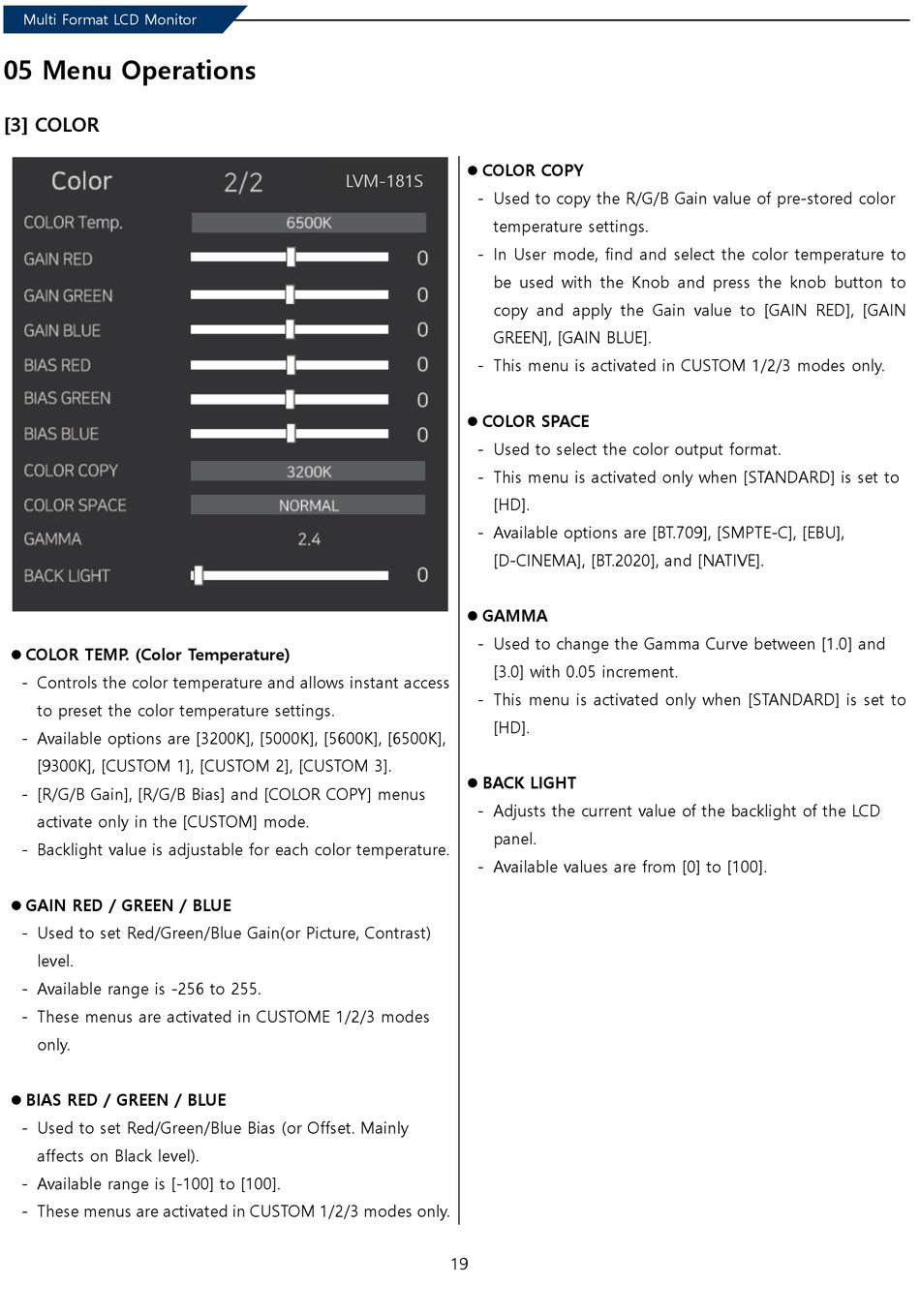

TVLogic LVM-181S Operation Manual page 19

Multi Format LCD Monitor
05 Menu Operations
[3] COLOR
 COLOR TEMP. (Color Temperature)
- Controls the color temperature and allows instant access
to preset the color temperature settings.
- Available options are [3200K], [5000K], [5600K], [6500K],
[9300K], [CUSTOM 1], [CUSTOM 2], [CUSTOM 3].
- [R/G/B Gain], [R/G/B Bias] and [COLOR COPY] menus
activate only in the [CUSTOM] mode.
- Backlight value is adjustable for each color temperature.
 GAIN RED / GREEN / BLUE
- Used to set Red/Green/Blue Gain(or Picture, Contrast)
level.
- Available range is -256 to 255.
- These menus are activated in CUSTOME 1/2/3 modes
only.
 BIAS RED / GREEN / BLUE
- Used to set Red/Green/Blue Bias (or Offset. Mainly
affects on Black level).
- Available range is [-100] to [100].
- These menus are activated in CUSTOM 1/2/3 modes only.
 COLOR COPY
LVM-181S
- Used to copy the R/G/B Gain value of pre-stored color
temperature settings.
- In User mode, find and select the color temperature to
be used with the Knob and press the knob button to
copy and apply the Gain value to [GAIN RED], [GAIN
GREEN], [GAIN BLUE].
- This menu is activated in CUSTOM 1/2/3 modes only.
 COLOR SPACE
- Used to select the color output format.
- This menu is activated only when [STANDARD] is set to
[HD].
- Available options are [BT.709], [SMPTE-C], [EBU],
[D-CINEMA], [BT.2020], and [NATIVE].
 GAMMA
- Used to change the Gamma Curve between [1.0] and
[3.0] with 0.05 increment.
- This menu is activated only when [STANDARD] is set to
[HD].
 BACK LIGHT
- Adjusts the current value of the backlight of the LCD
panel.
- Available values are from [0] to [100].
19
