Key Functions - TVLogic LVM-181S Operation Manual

Multi Format LCD Monitor

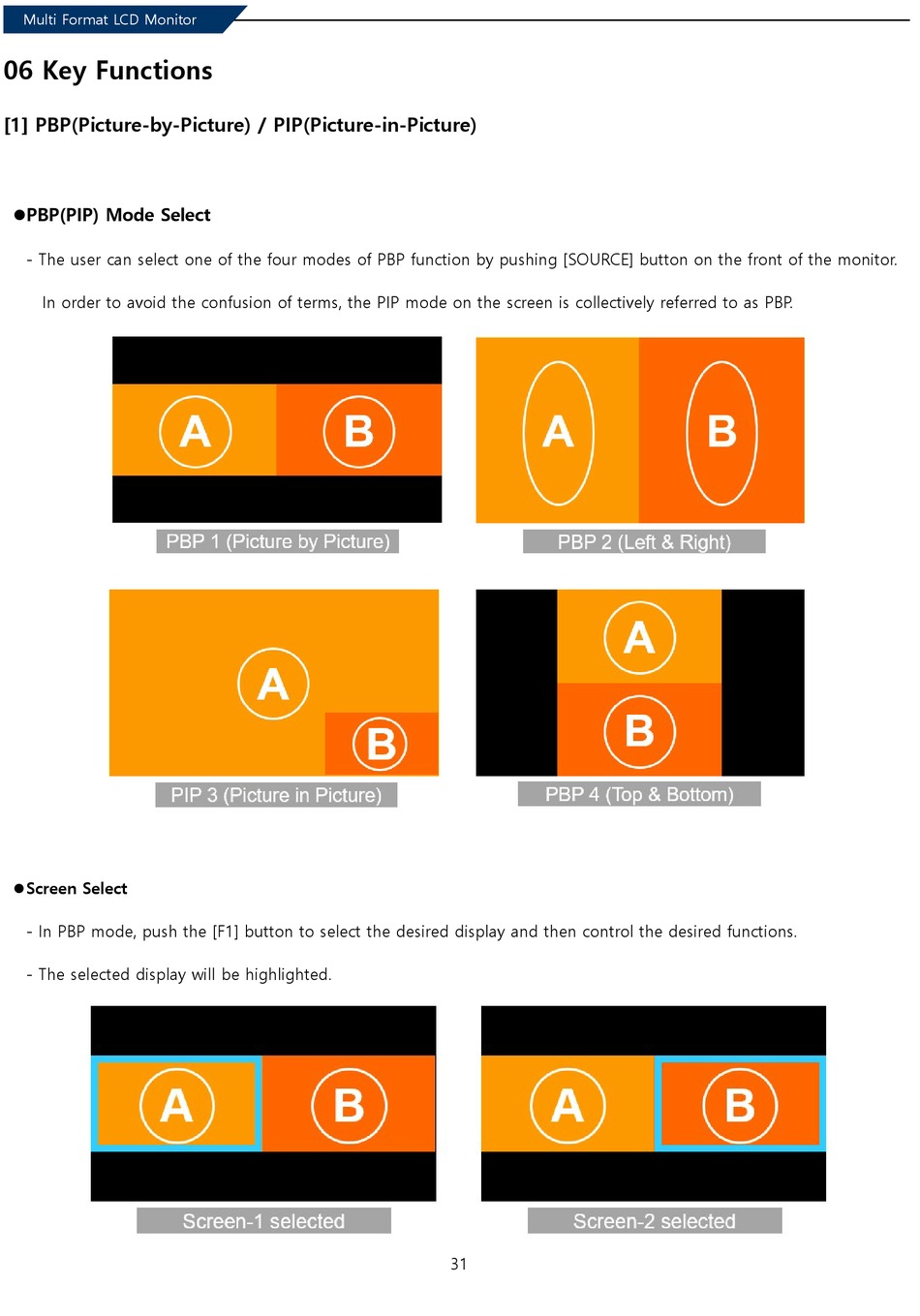

06 Key Functions

[1] PBP(Picture-by-Picture) / PIP(Picture-in-Picture)
 PBP(PIP) Mode Select
- The user can select one of the four modes of PBP function by pushing [SOURCE] button on the front of the monitor.
In order to avoid the confusion of terms, the PIP mode on the screen is collectively referred to as PBP.
 Screen Select
- In PBP mode, push the [F1] button to select the desired display and then control the desired functions.
- The selected display will be highlighted.
31
