Chapter 7 Setup Mode

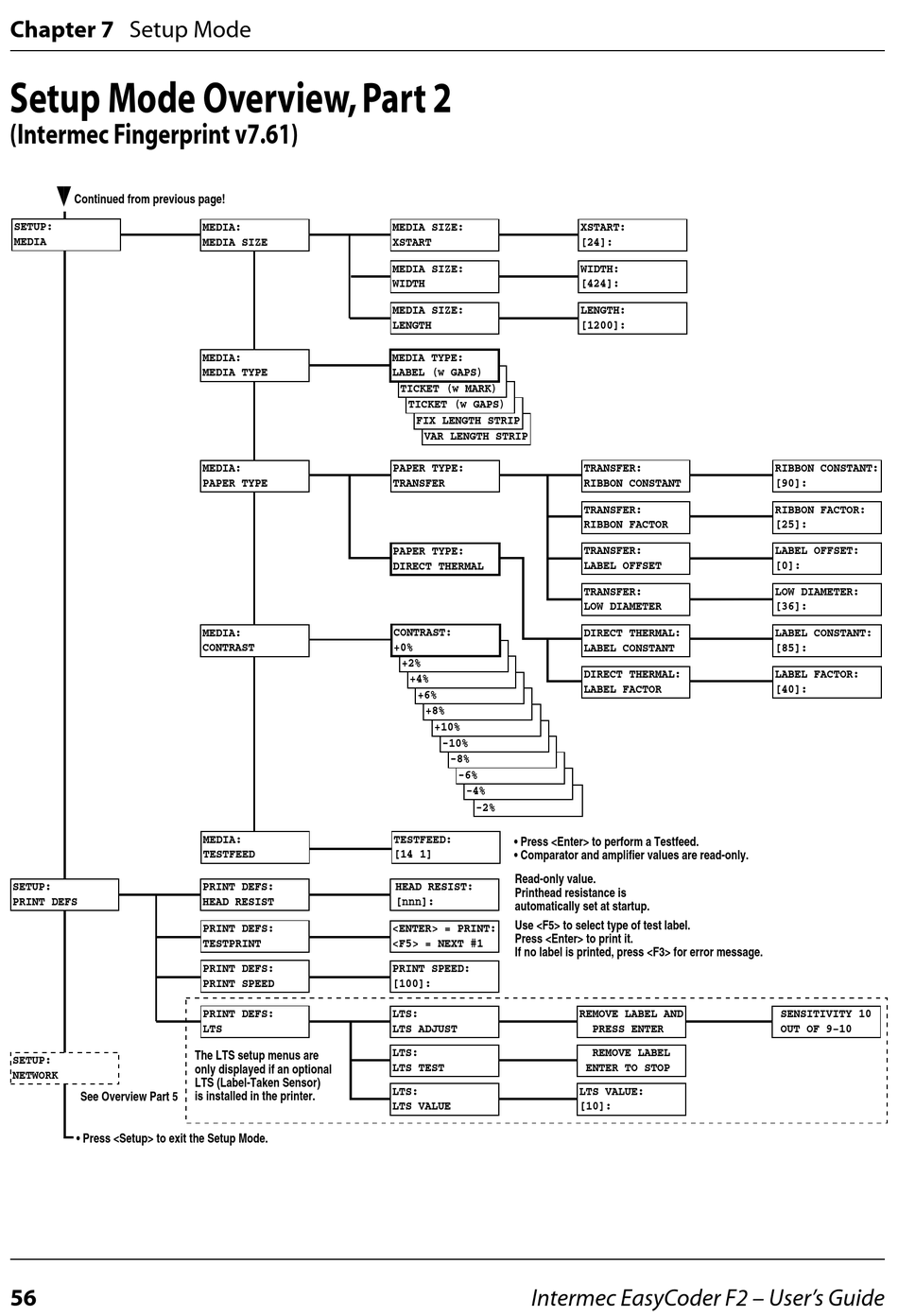

Setup Mode Overview, Part 2
(Intermec Fingerprint v7.61)
Continued from previous page!
SETUP:
MEDIA
SETUP:
PRINT DEFS
SETUP:
NETWORK
See Overview Part 5
• Press <Setup> to exit the Setup Mode.
56
MEDIA:
MEDIA SIZE
MEDIA:
MEDIA TYPE
MEDIA:
PAPER TYPE
MEDIA:
CONTRAST
MEDIA:
TESTFEED
PRINT DEFS:
HEAD RESIST
PRINT DEFS:
TESTPRINT
PRINT DEFS:
PRINT SPEED
PRINT DEFS:
LTS
The LTS setup menus are
only displayed if an optional
LTS (Label-Taken Sensor)
is installed in the printer.
MEDIA SIZE:
XSTART
MEDIA SIZE:
WIDTH
MEDIA SIZE:
LENGTH
MEDIA TYPE:
LABEL (w GAPS)
TICKET (w MARK)
TICKET (w GAPS)
FIX LENGTH STRIP
VAR LENGTH STRIP
PAPER TYPE:
TRANSFER
PAPER TYPE:
DIRECT THERMAL
CONTRAST:
+0%
+2%
+4%
+6%
+8%
MEDIA TYPE:
+10%
-10%
-8%
-6%
-4%
-2%
TESTFEED:
• Press <Enter> to perform a Testfeed.
[14 1] • Comparator and amplifier values are read-only.
Read-only value.
HEAD RESIST:
Printhead resistance is
[nnn]:
automatically set at startup.
Use <F5> to select type of test label.
<ENTER> = PRINT:
Press <Enter> to print it.
<F5> = NEXT #1
If no label is printed, press <F3> for error message.
PRINT SPEED:
[100]:
LTS:
LTS ADJUST
LTS:
LTS TEST
LTS:
LTS VALUE
Intermec EasyCoder F2 – User's Guide
XSTART:
[24]:
WIDTH:
[424]:
LENGTH:
[1200]:
TRANSFER:
RIBBON CONSTANT
TRANSFER:
RIBBON FACTOR
TRANSFER:
LABEL OFFSET
TRANSFER:
LOW DIAMETER
DIRECT THERMAL:
LABEL CONSTANT
DIRECT THERMAL:
LABEL FACTOR
REMOVE LABEL AND
PRESS ENTER
REMOVE LABEL
ENTER TO STOP
LTS VALUE:
[10]:
RIBBON CONSTANT:
[90]:
RIBBON FACTOR:
[25]:
LABEL OFFSET:
[0]:
LOW DIAMETER:
[36]:
LABEL CONSTANT:
[85]:
LABEL FACTOR:
[40]:
SENSITIVITY 10
OUT OF 9–10
