Length, cont.
• The length setup also decides the amount of media feed when
using "fi x length strip."
• The length setup creates an emergency stop, which works
when the printer is set up for "Label (w gaps)", "Ticket (w
mark)", or "Ticket (w gaps)." If the label stop sensor (LSS) has
not detected a gap or mark within 150% of the set length,
the media feed is automatically stopped to avoid feeding out a
whole roll of media, because of an LSS malfunction.

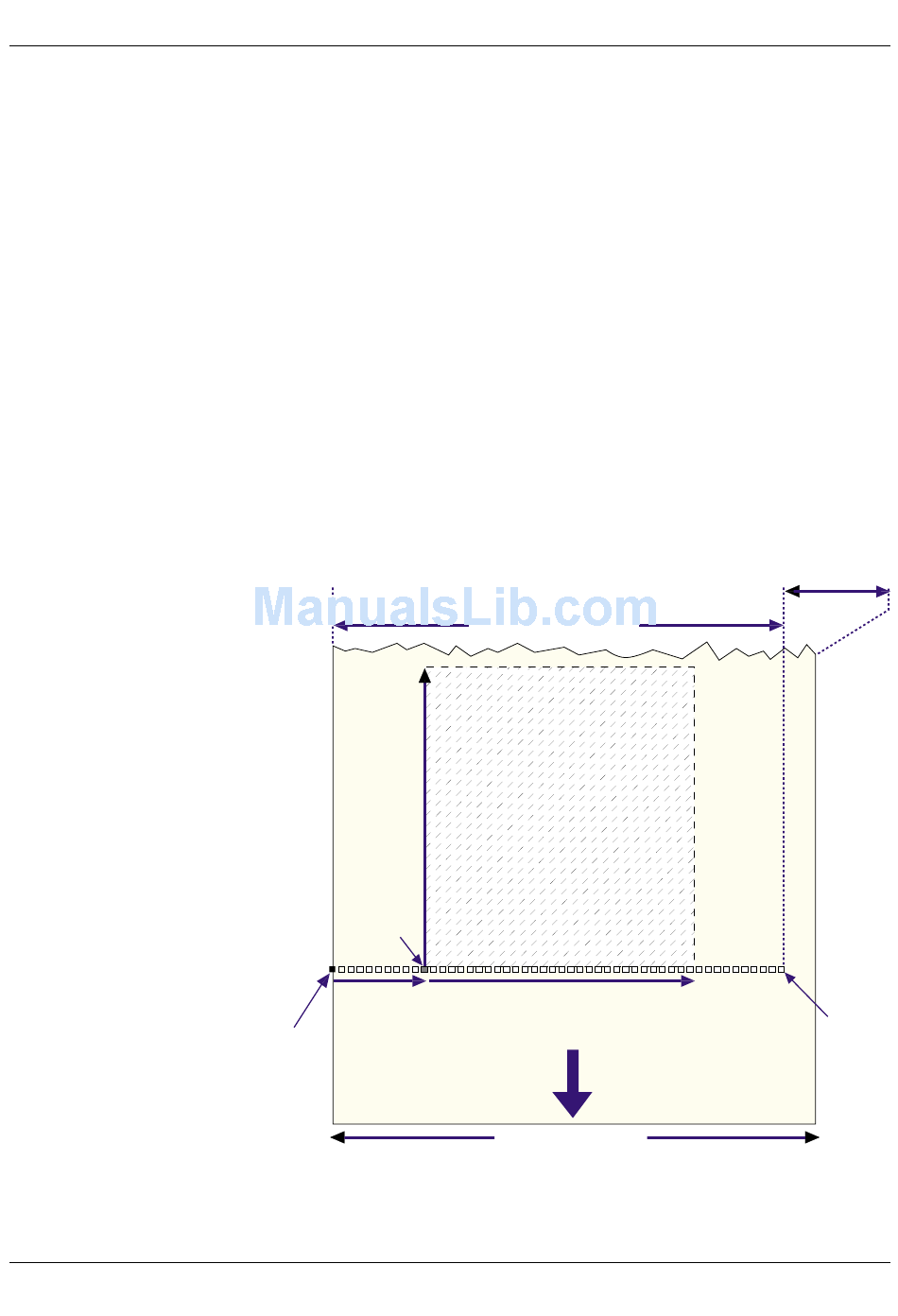

By setting up the X-start, the Width, and the Length, you
will create a print window inside which the printing can be per-
formed. Any object or fi eld extending outside the print window
in any direction will either be clipped or cause an error condition
(Error 1003 "Field out of label"), see Intermec Fingerprint v7.61,
Programmer's Reference Manual.
Length
Origin
Dot-line
on printhead
X-start
Dot #0
Chapter 6
max. 56.0 mm (2.2 in)
PRINT PRINT
WINDOW WINDOW
Width (1-448)
FEED
DIRECTION
25-60 mm (1-2.36 in)
Setting Up the Printer
4 mm (0.16 in)
