Appendix 3 Interfaces
IEEE 1284 Parallel Interface Board
1
/. Nibble, byte, ECP , and EPP
from printer to host are pres-
ently not supported.
2
/. Intermec Shell either auto-
matically sets the correct stan-
dard IN and OUT port when
an application is selected or
prompts you to select one, see
Chapter 8.
104

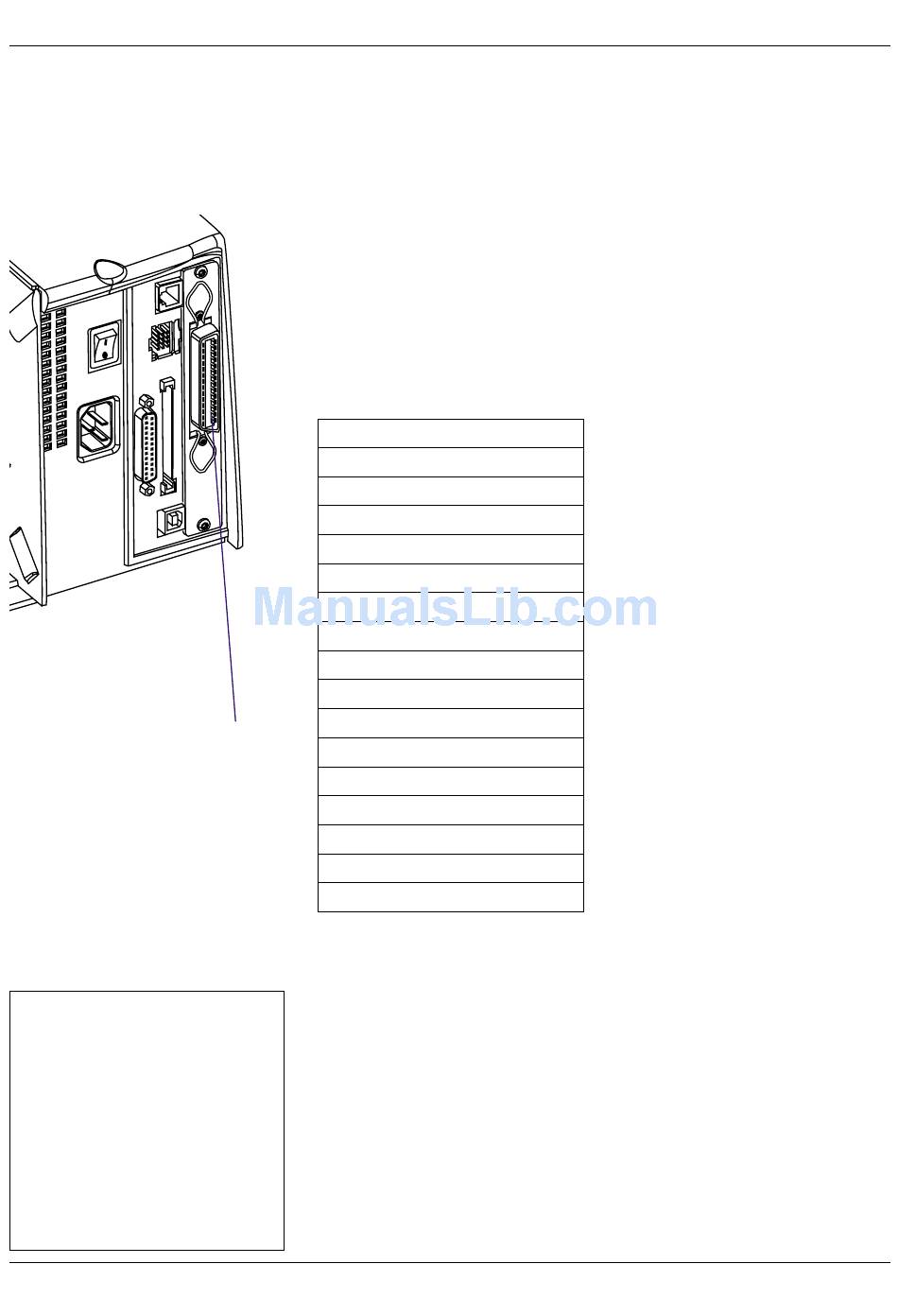

The EasyCoder F2 can optionally be fi tted with an IEEE 1284-I
compatible parallel interface board
in Intermec Fingerprint as device "centronics:". Select "centron-
ics:" as the standard IN port using the instruction SETSTDIO
(by default, "uart1:" is std IN port)
Interface Cable Connectors
Computer end:
Printer end:
Pin
1
2–9
10
11
12
13
14
15
16
17
"centronics:"
18
19–30
31
32
33-35
36
Depends on type of host computer.
36-pin IEEE 1284B Centronics socket
Signal Name
DStrobe
Data 0–7
Ack
Busy
PE
Select
AF
Not connected
Ground
Screen
+5V Ext
GND
Init
Error
Not connected
Selectin
Intermec EasyCoder F2 – User's Guide
1
. The parallel port is addressed
2
.
