Setup Parameters, cont.
Service, cont.
Intermec EasyCoder 501 S – Installation & Operation Ed. 1
Print Window
8 dots/mm (203.2 dpi) printhead in right-hand position

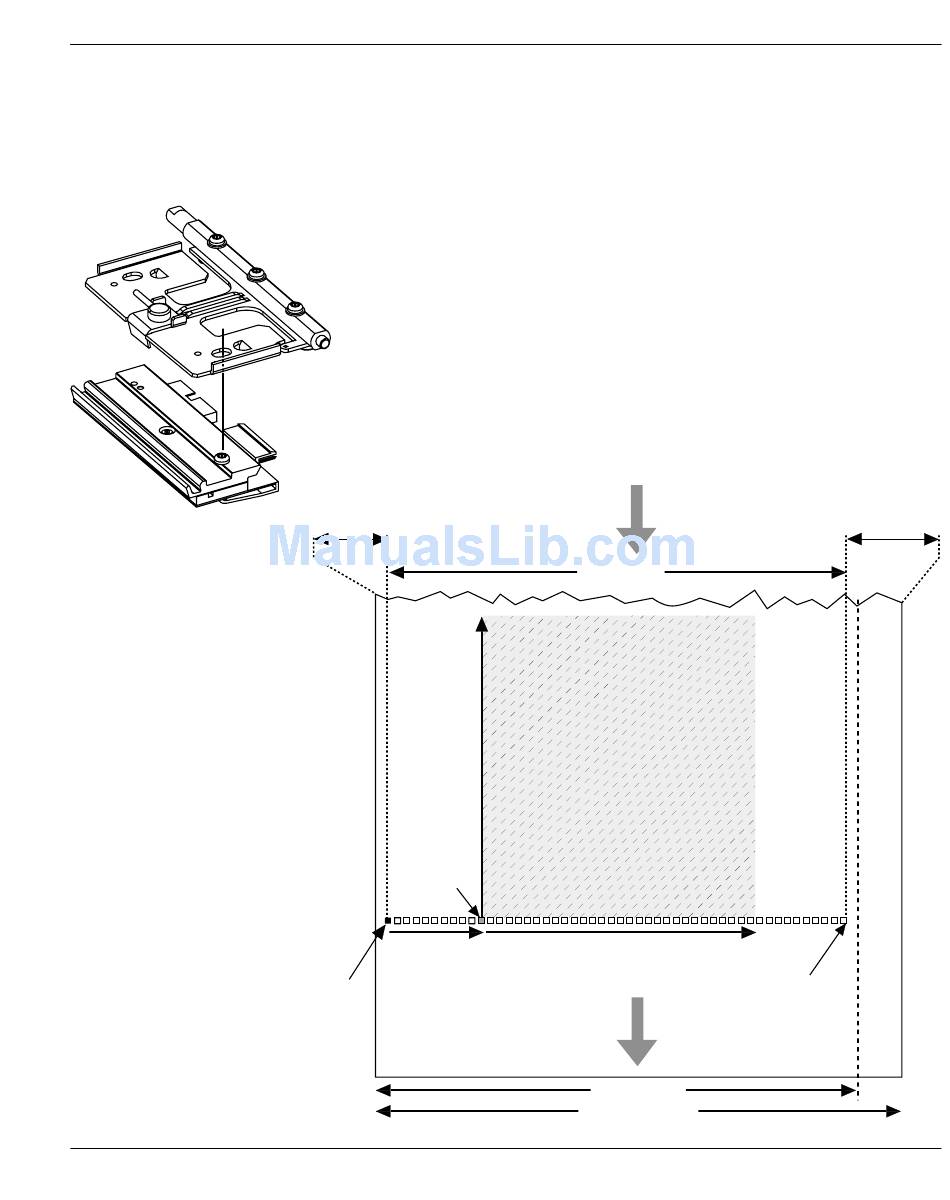

The 8 dots/mm printhead can be fi tted in two positions. When the
printhead is fi tted in the outer, right-hand position (see illustration),
dot No. 0 is situated 3 mm (0.12 in) inwards from the inner edge of
the media. Since the maximum print width is 104 mm (4.1 in) and
the maximum media width is 120 mm (4.7 in), this leaves a margin
of at least 13 mm (0.51 in) along the outer edge of the media, where
no printing can be performed. Furthermore, if 110 mm (4.33 in)
wide media is used, the printhead will be centered with a 3 mm
(0.12 in) wide margin on either side.
3 mm (0.12 in)
Length
Origin
Dot-line
on printhead
X-start
Dot 0
From
media supply
104 mm (4.1")
PRINT
WINDOW
Width
FEED
DIRECTION
110 mm (4.33 in)
max. 120 mm (4.7 in)
Chapter 7 Setting Up the Printer
Dot 831
13 mm (0.51 in)
