Internal Batch Takeup, cont.
10

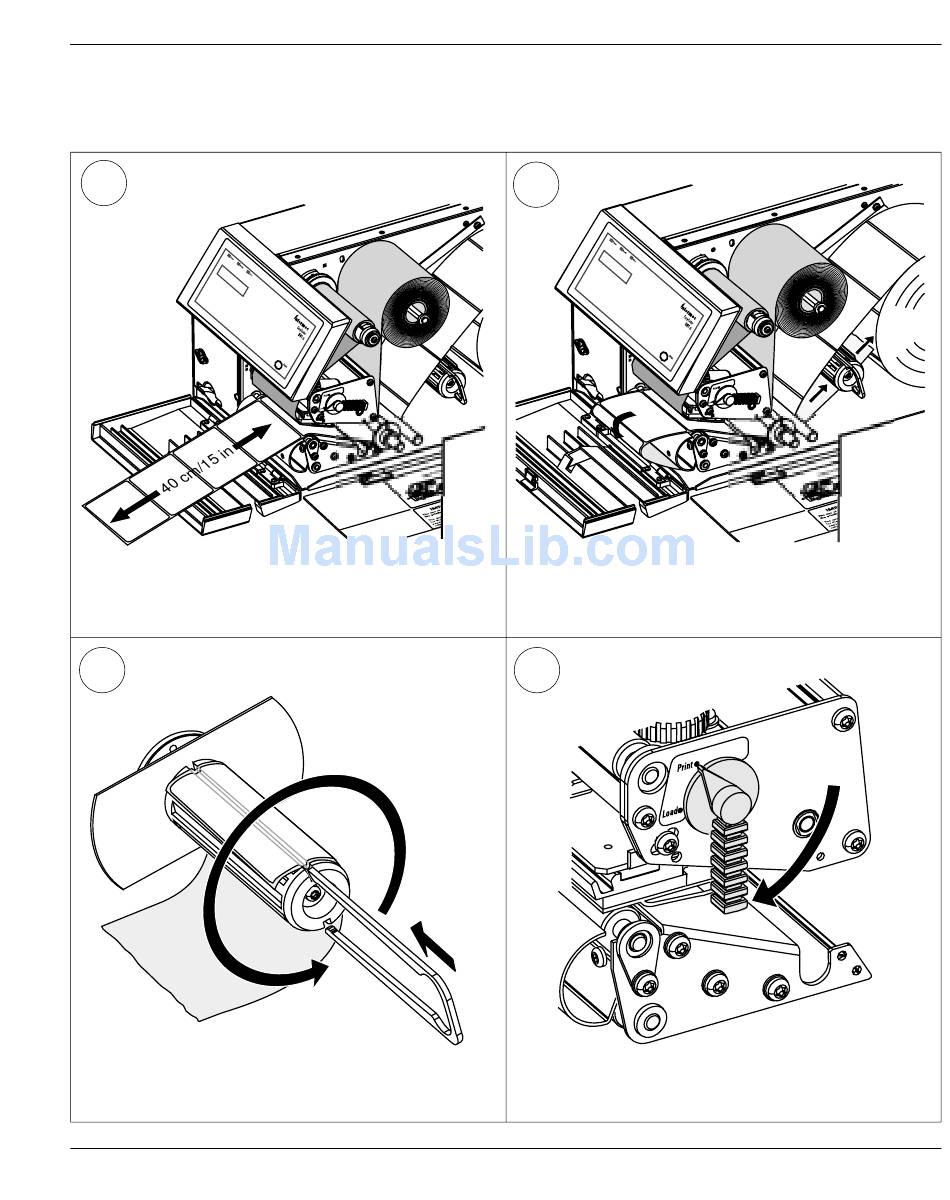

Pull out approximately 40 cm (15 inches) of
12
Wind up some of the media on the takeup hub
and secure it with the clip.
Intermec EasyCoder 501 S – Installation & Operation Ed. 1
media.
2.
11
Route the media around the guide plate and
back under the print unit to the takeup hub.
13
1.
Turn the printhead lift lever to "Print" posi-
Chapter 5 Media Load
tion.
