Chapter 5 Media Load
Tear-Off, cont.
3

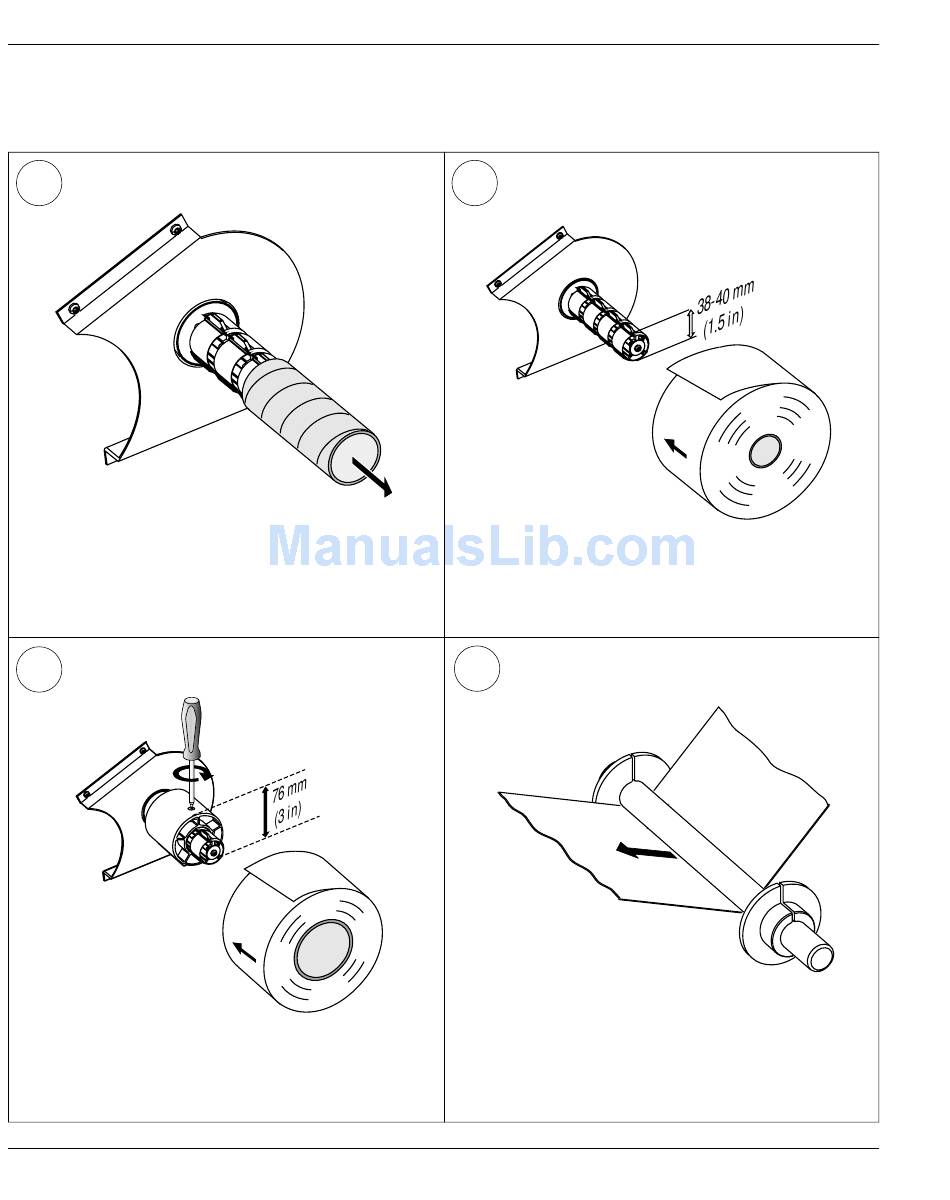

Remove any empty core from the media
supply hub.
4b
In case of a media roll with a 76.2 mm (3
inches) core, fi rst fi t the adapter on the media
supply hub.
28
4a
Fit a new roll of media on the supply hub and
push the roll inwards as far as it will go.
5
Route the media underneath the guide shaft
behind the print mechanism.
