Chapter 5 Media Load
Internal Batch Takeup, cont.

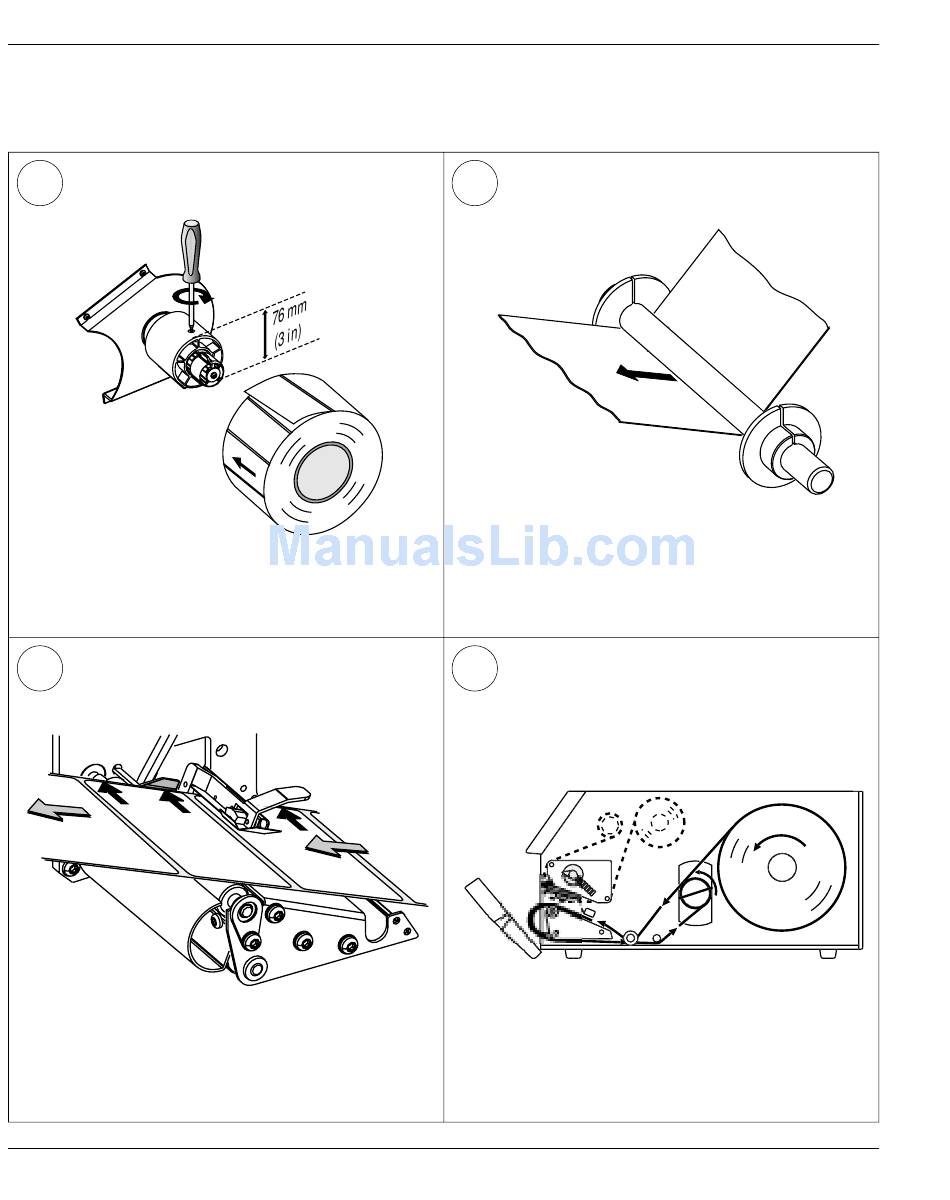

6b
In case of a media roll with a 76.2 mm (3
inches) core, fi rst fi t the adapter on the media
supply hub.
8
Route the media under the guide plate of the
label stop sensor and push it inwards towards
the center section as far as it will go.
42
7
Route the media underneath the guide shaft
behind the print mechanism.
9
This diagram shows the path of the media.
