Label Stop
Sensor, cont.
Intermec EasyCoder 501 S – Installation & Operation Ed. 1
• If you cannot make the media feed work properly using TEST-
FEEDs, you will have to adjust the LSS as described below. Before
the LSS is adjusted, the printer must be set for the type of media
you intend to use, that is, Label (w gaps), Ticket (w mark), Ticket
(w gaps), Fix length strip, or Var. length strip.

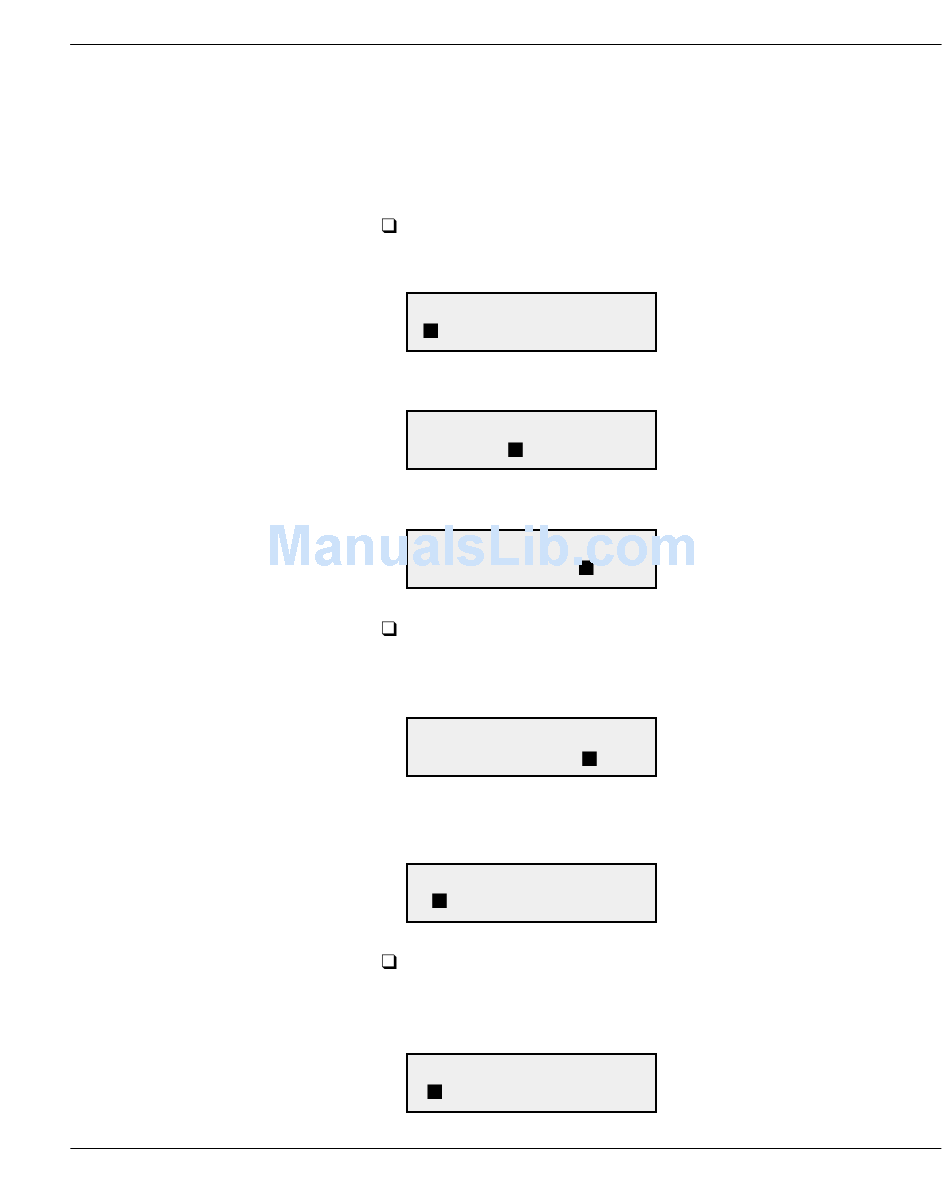

Label (w gaps)
Put a piece of labels with liner between the two parts of the sensor.
The cursor should appear at the left side of the menu:
LABEL <103>
Put a piece of liner without any label into the sensor. The cursor
should move to the center of the menu:
LABEL <103>
Finally remove any from the sensor. The cursor should move to
the right side of the menu:
LABEL <103>
Ticket (w mark)
Put the media between the two parts of the sensor, making sure
there is no black mark close to the LSS. The cursor should appear
at the right side of the menu:
MARK <103>TICKET
Move the media so the black mark becomes situated above the
sensor. The cursor should move to the left side of the menu (the
same applies when no media is loaded):
MARK <103>TICKET
Ticket (w gaps), Fix Length Strip, and Var. Length Strip
Put the media between the two parts of the sensor, making sure
there is no gap close to the LSS. The cursor should appear at
the left side of the menu:
LABEL <103>
Chapter 13 Adjustments
GAP
GAP
GAP
