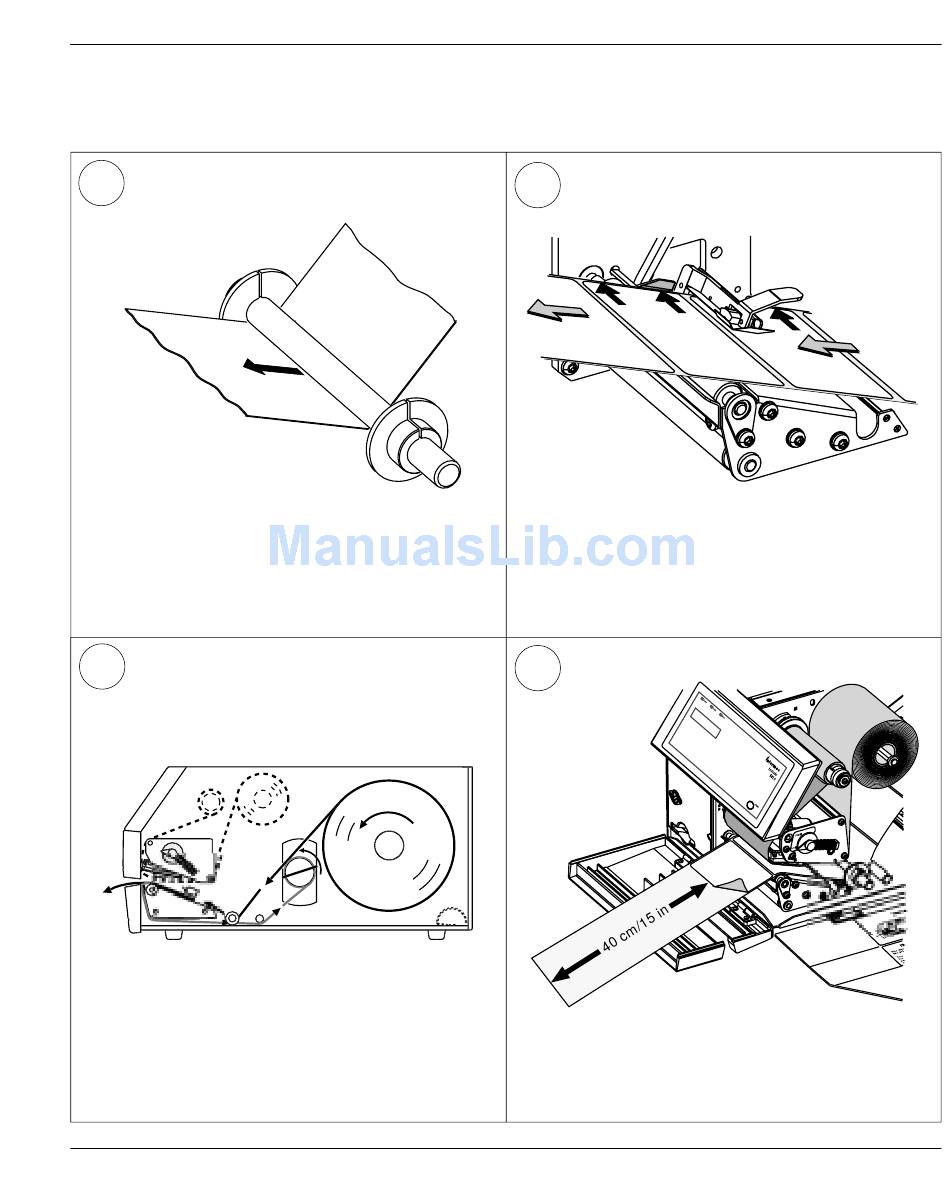

Peel-Off, cont.
6
Route the media underneath the guide shaft
behind the print mechanism.
8
This diagram shows the path of the labels and
Intermec EasyCoder 501 S – Installation & Operation Ed. 1
the liner.
7
Route the media under the guide plate of the
label stop sensor and push it inwards towards
the center section as far as it will go.
9
Pull out approximately 40 cm (15 inches) of
labels and peel off the labels manually from
the liner.
