- Page 1 C1000 DS Instructions for use ....................
- Page 2 [ ] Seat height adjustment [ ] Back angle adjustment [ ] Light [ ] Direction indicator, right [ ] Direction indicator, left [ ] Horn [ ] Warning flasher [ ] Other: *See the section "Use" for more information. C1000 DS...
-
Page 3: Table Of Contents
Attendant control ..........................6.3.1.4.3 Push-button module ..........................6.3.2 Adjustments by the user ........................6.3.2.1 Adjusting the control device ......................... Delivery ................................Final inspection ..........................Transport to the customer ........................Handing over the product ........................................................... Circuit breaker ........................... C1000 DS... - Page 4 ....................... 8.11.6 Power legrests ............................ 8.11.7 Controlling power seat functions ......................8.11.8 Joystick functions ..........................8.12 Manual seat functions .......................... 8.12.1 Safety instructions ..........................8.12.2 Manually elevating legrests ........................8.13 Lap belt ............................. 8.13.1 Adaptation ............................8.13.2 ..............................C1000 DS...
- Page 5 Privacy notice ............................. 11.4 Service life ............................Technical data ..............................Appendices ................................ 13.1 Threshold values for wheelchairs transportable by train ................13.2 Required tools ............................ 13.3 Torque values of the screw connections ....................13.4 Sound emission information ......................... C1000 DS...
-
Page 6: Foreword
Modular design that allows the power wheelchair to be equipped with additional modules and installed equip ment in addition to the main components, such as power seat adjustments, special controls, tray. • Serviceability due to easy, straightforward access to all components. C1000 DS... -
Page 7: Product Overview

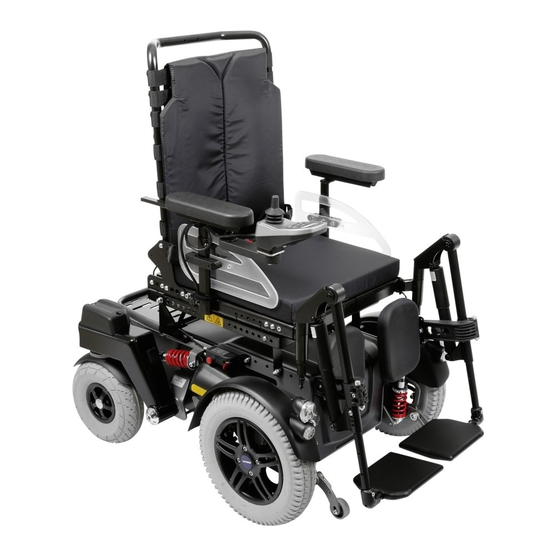

7 Anti-tipper, front 2 Arm support (side panel) 8 Drive wheel 3 Control panel with joystick 9 Caster wheel 4 Seat cushion 10 Suspension 5 Leg support 11 Luggage carrier (option) 6 Motor with brake release 12 Lap belt C1000 DS... -
Page 8: Intended Use
Compliance with all manufacturer specifications and all applic able legal provisions is required. Please contact the manufacturer’s service department for further information (see inside or outside of rear cover for addresses). C1000 DS... -
Page 9: Safety
► Check your skin for intactness before and during use of the product. ► Pay attention to diligent skin care and pressure redistribution during interruptions in using the product. ► If skin damage or other problems occur during use, stop using the product. Consult the qualified personnel. C1000 DS... -
Page 10: Side Effects
Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD players, and cassette players, and small appliances, such as electric shavers and hair dryers, so far as we know, are not likely to cause EMI problems to your powered wheelchair. C1000 DS... -
Page 11: Further Information
C Maximum load (see section “Technical data”) D Maximum climbing ability (see section “Technical data”) E Maximum speed (see section “Technical data”) F Allowable axle load, front G Allowable axle load, rear H Allowable overall weight Manufacturer information/address Serial number K Manufacturing date C1000 DS... -
Page 12: Warning Labels
For use of the options, see the section "Use". Please note that retrofitting options further reduces the maximum load capacity (user weight + luggage). The maximum load capacity (see print on the nameplate; see Page 11) is thereby respectively reduced by the weight of the retrofitted options. C1000 DS... -
Page 13: Accessories From Other Manufacturers
The tyres should be replaced every 2 years regardless of wear and tear. • • When power wheelchairs with PU tyres are parked for longer periods, the tyres may become deformed (flat spots). This deformation will go away on its own over time while driving. C1000 DS... -
Page 14: Preparing The Product For Use
Changes to these basic settings may only be made by qualified personnel. Related information is found in the 647G519=* service manual. All parts of the product should be cleaned thoroughly before adjustments are made. C1000 DS... -
Page 15: Safety Instructions
► Turn the power wheelchair off and deactivate the circuit breaker before making any adjustments. Functional tests of the electrical components are excepted from this rule. ► Before performing any work on the seat, ensure that the cushion is sufficiently protected against mechanical, chemical, and thermal effects. C1000 DS... -
Page 16: Adjusting The Standard Seat
Adjusting the back support upholstery 1) Pull the fabric of the back support pad off the hook- and-loop straps of the back support upholstery and fold it up. 2) Open and loosen the hook-and-loop straps one after the other (see fig. 4). C1000 DS... -
Page 17: Inserting Foam Elements
► In particular, ensure that the user and/or attendant/care staff knows how to quickly loosen and open the product to avoid delays in case of emergency. Notes on correctly adjusting and applying the belts/belt systems: see Page 60. C1000 DS... -
Page 18: Adjusting The Control Device
If necessary, the qualified personnel can adapt the preprogrammed wheelchair control unit and options to the con crete requirements of the user. C1000 DS... -
Page 19: Delivery
► For shipping or when the power wheelchair is not being used for an extended period of time, the automatic circuit breaker should be deactivated. The automatic circuit breaker has to be activated before the power wheelchair can be switched on. It is located under the seat between the drive wheels. C1000 DS... -
Page 20: Side Panels
(see fig. 7, arrow). ® Recaro seat ® To remove/install the side panel on the Recaro seat: see Page 40. 8.2.2 Adjusting the side panels The height and depth of the armrests can be adapted to the requirements of the user. C1000 DS... -
Page 21: Legrests
► Do not reach into the danger area with your fingers when folding the legrest or footplates up or down. ► Never step on the footplates when getting in and out. ► Note projecting edges. INFORMATION For detaching/attaching the power legrests: see Page 46. INFORMATION For detaching/attaching the mechanically elevating leg supports: see Page 48. C1000 DS... -
Page 22: Adjusting The Leg Supports
3) Adjust the foot support bar to match the user's lower leg length. INFORMATION: Ensure that the foot support bar is inserted into the swivel segment by at least 40 mm. 4) Re-tighten the set screws on the foot support bar. 5) Hook the calf band in again. C1000 DS... -
Page 23: Backrest
4) Check to ensure the lock is securely engaged by pulling on the back support. Folding down the back support 1) If needed: Remove the side panels. 2) Pull on the strap until the locking bolts are free. 3) Fold the back support down onto the seat. C1000 DS... -
Page 24: Adjusting The Back Support Angle
The modular design of the power wheelchair and the ease with which you can remove the side panels and legrests make it easy to get into and out of the wheelchair from the side or from the front. Users can choose the method for getting into and out of the wheelchair which is most suitable for them. C1000 DS... -
Page 25: Control Unit
The control panel consists of a button section, LCD screen and joystick. The charging receptacle and two inputs for external buttons are located on the underside. The control panel is used to switch the power wheelchair on and off, enter driving commands and display the cur rent status of certain functions and components. C1000 DS... -
Page 26: Buttons And Display Functions
[Direction indicator right] and [Direction indicator left] buttons Pressing these buttons activates/deactivates the respective front and rear direction indicators. The direction indic ator lights turn off automatically after 20 seconds. [Lights on/off] button The front and rear lights are activated/deactivated by pressing this button. C1000 DS... - Page 27 After brief operation, the battery indicator shows the exact battery status. • A charge of 100% corresponds to 7 segments on the battery symbol. • As the remaining battery charge decreases, the LCD segments turn off one by one. C1000 DS...
-
Page 28: Driving Functions
This includes uncontrolled movements as well as sounds that are unexpected or previously not noted or odours that deviate significantly from the state of the product at the time of delivery. ► Contact the qualified personnel. C1000 DS... - Page 29 However, these do not represent a health hazard. Electrostatic discharge may also occur if the power wheelchair is equipped with puncture-proof tires. Retrofitting the wheelchair with pneumatic tires can correct this problem. C1000 DS...
-
Page 30: Driving Notes
If the power wheelchair does not drive at full speed even when the battery is fully charged, the selected speed level should be checked. Contact the qualified personnel if increasing the speed level does not solve the prob lem. C1000 DS... -
Page 31: Switching On And Off
The speed level is increased by briefly pressing the [Mode] button. • Once the highest speed level has been reached the speed skips back to level 1. The LCD screen indicates the selected speed level in the Driving menu. • C1000 DS... -
Page 32: Driving
The section "Technical data" contains precise information on the range of the product (see Page 75). The following factors influence the range of the product: • Battery capacity • Age of the batteries • Ambient temperature • Driving conditions (e.g. terrain profile, condition of surface) • Charging method C1000 DS... -
Page 33: Anti-Tipper
2) Activate the function by moving the joystick. → A beep confirms that the function was activated. → The control unit turns itself off. → The key symbol on the separate LCD monitor indicates that the drive-away lock is activated: Display Information Drive-away lock C1000 DS... -
Page 34: Steering Lock
Adjusting and setting the speed, acceleration and deceleration values to the individual user requirements is per formed exclusively by the qualified personnel. C1000 DS... -
Page 35: Enabling/Disabling The Brakes
2) Push the brake release lever up (see fig. 21, see arrow). 3) Switch on the control device. → The driving function is activated. Brake deactivated: warning on control panel/LCD monitor Display Information Brake released (control panel) Brake released (LCD monitor) C1000 DS... -
Page 36: Batteries/Charging Process
After charging the batteries, the circuit breaker should be deactivated if the wheelchair is not used for more than 3 days. • The power wheelchair control device must be switched off while the batteries are charging to allow all of the charging current to be fed into the battery. C1000 DS... -
Page 37: Battery Charger
Insufficient ventilation of the battery charger while charging Burns due to the battery charger overheating/catching fire ► Make sure the battery charger cannot overheat during the charging process. ► Ensure that the cooling fins/ventilation slots on the back of the device are not covered. C1000 DS... -
Page 38: Seat
► The seat and back support upholstery as well as seat cushions, padding and covers fulfil the normative requirements for flame resistance. However, they may still ignite if fire is handled improperly or negligently. ► Keep away from all ignition sources, especially lit cigarettes. C1000 DS... -
Page 39: Seat Type
Nevertheless, you should take the artificial leather cover off from time to time and check whether liquid has gotten into the foam pad through the seams. You should clean the foam pad if this is the case. The incontinence cover is positioned under the seat cover. It protects the foam pad against wetness. C1000 DS... -
Page 40: Cleaning The Covers
1) Hand wash all foam components in warm water at 40 °C [104 °F] using a standard mild detergent. Do not use fabric softener. Rinse thoroughly. 2) Allow to air dry. Do not expose to direct heat sources (e.g. sunlight, stove or radiator). 8.10.4 Recaro® seat The Recaro® seat provides individually adjustable, comprehensive seating comfort. C1000 DS... -
Page 41: Settings
→ For transporting the power wheelchair, place the side panel on the seat. Installing the side panel 1) Insert the side panel into the side panel holder. 2) Re-tighten the thumb screw on the side panel hold er (see fig. 28, item 1). C1000 DS... -
Page 42: Headrest
Detailed information regarding use, maintenance and repair can be found in the included instructions for use. 8.11 Power seat functions The power wheelchair can be equipped with a range of different optional power seat functions. C1000 DS... -
Page 43: Safety Instructions
► Observe the following guidelines: at maximum load capacity, 10 seconds of activation time must be followed by approx. 90 seconds of idle time. The power seat functions are considered independently of the driving function for this purpose. ► Only activate the power seat functions if no fault or error is present. C1000 DS... -
Page 44: Power Seat Height Adjustment
► Use the seat tilt feature only with the backrest in the upright position. ► Drive in street traffic only with the seat tilt lowered. ► When driving with the seat tilt activated, even at home, fasten the belts and do not lean out beyond the seat surface. C1000 DS... -
Page 45: Combined Seat Height Adjustment/Seat Tilt
► Observe the instructions for use in the sections "Controlling power seat functions" (see Page 46) and "Joy stick functions" (see Page 47). The power back angle adjustment feature enables the back support to be tilted up to 30°. The back support can be tilted back continuously to the angle specified above. C1000 DS... -
Page 46: Power Legrests
• Holding the [Mode] button again (approx. 2 seconds) deactivates the seat function in the selected position. The driving function is available again and the speed level indicator on the LCD screen is lit. C1000 DS... -
Page 47: Joystick Functions
Lack of maintenance Severe user injuries, damage to the product due to maintenance errors ► Check the adjustment functions for visible signs of damage at least 1 x per month and ensure all screw con nections are tight. C1000 DS... -
Page 48: Manually Elevating Legrests
Small length adjustments of the belt by the user or an attendant (e.g. for clothing of different thickness) are pos sible. The belt length can be adjusted on both sides. Excess belt length is taken up by the plastic slider. C1000 DS... -
Page 49: Use
► Under no circumstances may the belt system be used as part of a personal restraint system for transportation in a vehicle for transporting persons with reduced mobility. ► Note that the belt system is only intended as additional stabilisation for the user sitting in the product. C1000 DS... -
Page 50: Control Unit Accessories
– Standard household appliances and hi-fi devices (TV, DVD, phone) – Light switches or dimmers – Switches to operate blinds – Mouse emulator (joystick signals are used to control a computer mouse) C1000 DS... - Page 51 If the power wheelchair is turned on via the LCD monitor, the Main menu is displayed there first. Now the joystick has to be moved 2 x in order to drive: ► After moving the joystick forward, the Driving menu is shown. ► Move the joystick a second time in order to start driving the power wheelchair. C1000 DS...
- Page 52 1) First movement to the right: Select function 2) First movement to the front: Select option 3) Second movement to the right: Activate/deactivate option; adjust option 4) Further deflection movements to the right/front: Select/adjust further sub-functions (specific to each LCD screen) C1000 DS...
- Page 53 Select speed level Menu Joystick function Next action: Move the joystick to the front Next action: Move joystick to the right until the desired speed level is highlighted Next action: Move the joystick forward/back to select the speed level C1000 DS...
- Page 54 > e.g. CD player Hi-Fi function Further LCD screen functions Further information on the LCD monitor is covered in the following sections: • Section "Drive-away lock": see Page 33 • Section "Power seat functions": see Page 42 • Section "Troubleshooting": see Page 71 C1000 DS...
-
Page 55: Wireless Environmental Control
[Charge level] LED display [Mode] LED indicator [Mode] button [Selected power seat function] LED indicator Joystick The attendant uses the joystick to control the speed and driving direction. When a seat option is activated, the joy stick operates this seat option. C1000 DS... - Page 56 LCD screen (see the section "Power seat functions" > "Joystick and display functions"). The power seat functions are accessed by depressing of the "M" button for approx. 2 seconds. The currently selected seat function is indicated by the following LEDs: C1000 DS...
-
Page 57: Push-Button Module
Depending on the power wheelchair model and programming of the push-button module, up to 5 power seat func tions (see Fig., item 1) can be controlled during normal driving operation: Display Information Power seat height adjustment Power seat tilt C1000 DS... -
Page 58: Special Controls
Ottobock provides the option to equip the power wheelchair with special controls with various input modules. Possible input modules • Micro joystick • Multi joystick • All-round joystick • Sip and puff control • Chin control with swivel arm (see fig. 45) • Push-button control • Piko buttons C1000 DS... -
Page 59: Adapter Cable For Piko Button
By default, the control panel is mounted on the side specified in the order. It can also be mounted on the other side of the power wheelchair later on if the user so desires. Please contact the qualified personnel who delivered the product to you. C1000 DS... -
Page 60: Lighting
INFORMATION: Do not cover the reflectors with luggage when loading the luggage carrier. 8.15.3 Belts/belt systems INFORMATION Information on the lap belt: see Page 48. The following instructions for adjustment and use apply to four-way chest straps and chest belts. C1000 DS... -
Page 61: Adaptation
► Applies only to upper body straps/vests, chest/shoulder straps: Ensure that the belt system supports the area of the upper body from the front. The belt system has to be applied/positioned so that the neck and area of the throat remain free at all times. C1000 DS... - Page 62 3) Turn the buckle back to the original position when the belt length is correct. 4) To shorten: Pull on the free belt end. Cleaning a belt system with metal closure INFORMATION Observe the washing recommendations on the product and the information in the corresponding instructions for use provided for the product. C1000 DS...
-
Page 63: Luggage Carrier
You can find these and other optional add-on components on the order form and in the accessories catalogue. The power wheelchair can be equipped with additional options: • Puncture-proof tyres: Solid rubber tyres • Armrest accessories: Special adapters for the armrests in our accessories catalogue C1000 DS... -
Page 64: Disassembly And Transport
► Ensure that the seat is lowered all the way and the backrest is in a vertical position prior to loading and for transporting the power wheelchair. 8.16.2 Reducing the transportation size The transportation size can be reduced in a few steps to make transporting the product easier. C1000 DS... -
Page 65: Preparing For Transport
The product has been tested by the manufacturer according to ANSI/RESNA and ISO 7176-19 and may be used as a seat in vehicles for transporting persons with reduced mobility subject to the conditions defined below. C1000 DS... -
Page 66: Required Accessories
5 in the brochure "Transporting persons with reduced mobility", order number 646D158. 2) Turn the control device off (see Page 31). 3) Verify brake locking. Engage the brakes if needed (see Page 35). 4) Apply the attachment straps (see below). C1000 DS... - Page 67 Fastening the restraint lap belt 1) Guide each end of the restraint lap belt from the inner side of the seat to the outer side of the seat. 2) Engage the end of the restraint lap belt on the pin (see fig. 57). C1000 DS...
-
Page 68: Restrictions For Use
*** The head support can remain on the power wheelchair if it is crash-test approved. Please refer to the order form for the approved head supports. **** The lap belt can be used to position the passenger during transportation. Using the personal restraint system is nevertheless required. C1000 DS... -
Page 69: Care
► The functionality and operating safety of the product must be verified and a service performed at least once per year. ► For users with a changing anatomy (for example body dimensions, weight) or users with a changing clinical picture, have the product inspected, adjusted and serviced at least once every six months. C1000 DS... -
Page 70: Maintenance Intervals
With brake disengaged: check whether the indicator on the control panel is flashing With brake engaged: check the braking function by try ing to push the chair Seat adjustment Visually inspect all moving components and cabling for functions damage Check that screw connections are tight C1000 DS... -
Page 71: Repair
Based on the saved data, the specialist dealer determines future ser vice and maintenance intervals. 9.3.1 Types of notifications Warning A warning indicates a status or malfunction of one or several components of the power wheelchair. The function of components without errors is not restricted. C1000 DS... -
Page 72: Procedure For Warnings And Error Messages
Charge as soon as pos sible Battery cable malfunc tioning/faulty connection Check the connection to to the battery the battery (charge the battery if the connection is good) Battery overvoltage Voltage too high (after Continue driving slowly complete charging and driving downhill) C1000 DS... -
Page 73: Attendant Control Error Overview
LCD screen on the control panel (see Page 72 f.). Seat function LEDs Error/warning Cause Possible measure Backrest LED is flashing Back angle adjustment Faulty cabling or plug con Check cabling/plug con motor fault tact tacts C1000 DS... -
Page 74: Behaviour In Case Of Breakdowns
Detailed information on replacing components as well as information on the required tools can be found in the ser vice manual. 11 Legal information All legal conditions are subject to the respective national laws of the country of use and may vary accordingly. C1000 DS... -
Page 75: Liability
Power: adjustable by up to 30° (depending on the seat depth) Seat inclination 0°/3°/6° Seat height adjustment + 300 mm or +400 mm (depending on version) Seat tilt Power: adjustable by up to 30°/45° (depending on the version) C1000 DS... - Page 76 24 V DC Max. output current per motor 2 x 130 A Force for operating the joystick on the 1.6 N standard control panel Control unit accessories Model Push-button module for enAble50 control unit Protection rating IPX4 Driving data Speed* C1000 DS...
-
Page 77: Appendices
50 mm (2") vertically Height max. 1375 mm (54.1"); including a 1.84 m (72.5") large male wheel chair user (95th percentile) Turning radius 1500 mm (59.1") Maximum weight 300 kg (661 lbs); for wheelchair with occupant, including baggage 50 mm (2") C1000 DS... -
Page 78: Required Tools
► They fully meet the requirements according to the areas of application identified below. Area of application Maximum sound pressure level In enclosed rooms 65 db(A) Outside of enclosed rooms 75 db(A) Depending on the area of application according to ISO 7176-14 C1000 DS... - Page 79 · www.ottobock.de 143441 Moscow Region/Krasnogorskiy Rayon info@ottobock.com.co · www.ottobock.com.co Russian Federation Otto Bock Healthcare Products GmbH Otto Bock de Mexico S.A. de C.V. T +7 495 564 8360 · F +7 495 564 8363 Brehmstraße 16 · 1110 Wien · Austria Prolongación Calle 18 No. 178-A info@ottobock.ru · www.ottobock.ru F +43 1 5267985...
