Feedback
The pitch shifter accepts the input signal and then delays it and plays it back at a
different speed, so that its output is delayed and pitch shifted. When this output is fed
back into the pitch shifter, further delays and more pitch shifting occur. This can lead
to some strange effects, such as feedback.
SQ1 Dynamics effect

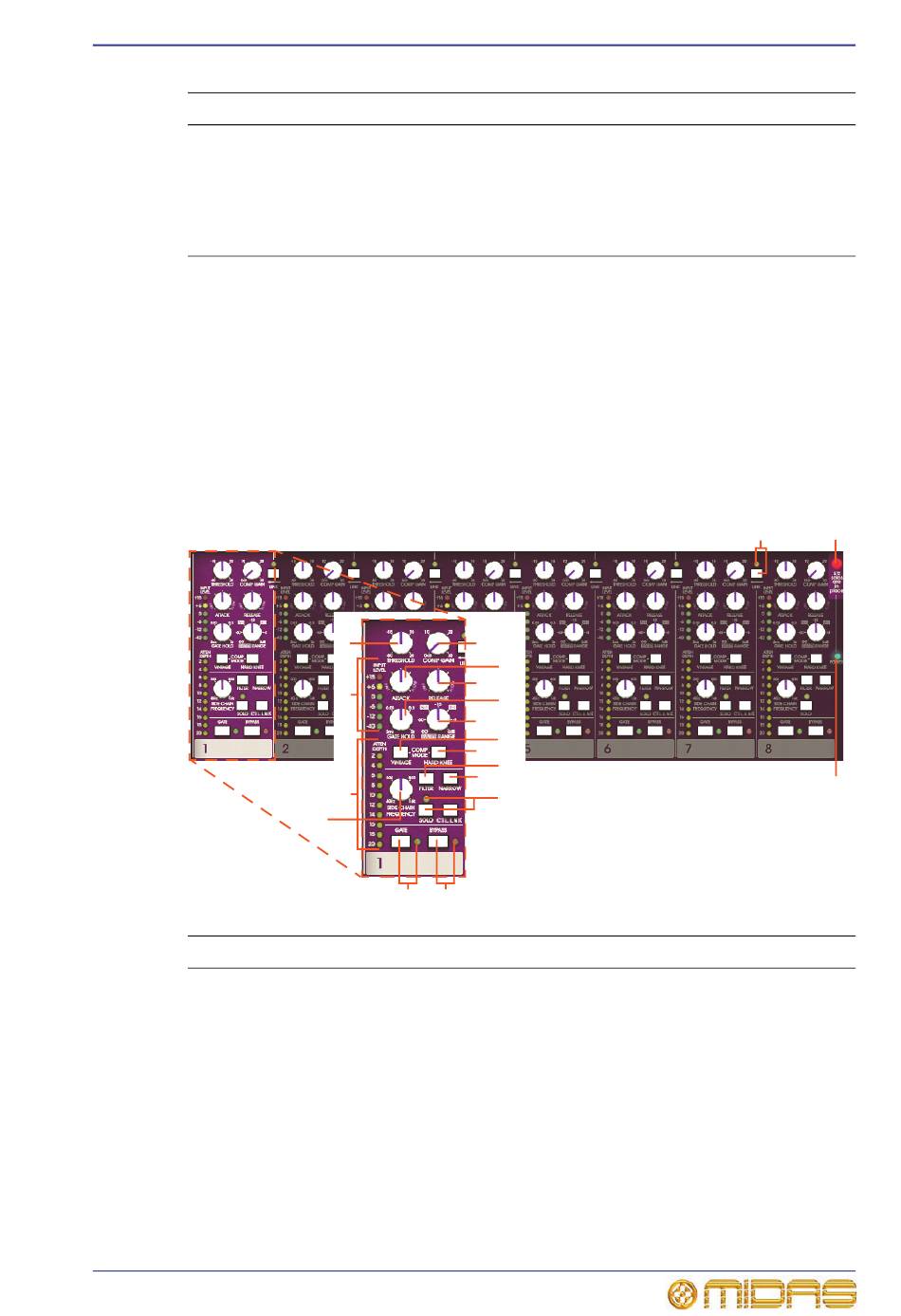

The SQ1 dynamics provides an emulation of the Klark Teknik Square ONE Dynamics
Processor, which is an eight-channel analogue dynamics processor.
Item
1
2
3
4
PRO1 Live Audio System
Operator Manual
Control Function
ON switch Switches pitch shifter effect on/off.
Win Sz control Sets the window size used by the pitch shift
knob algorithm. High values result in larger latency, but
better quality for low frequency or polyphonic audio
source. Low values produce low latency and work
best on monophonic audio source.
2
1
16
15
14 13
Control Function
INPUT LEVEL Dedicated peak reading, six-segment audio level LED
meter (dBu) meter that monitors the input XLR level at all times,
no matter how the controls are set.
THRESHOLD Adjusts the operating point for the compressor or
control knob gate, depending on which is selected.
COMP GAIN Adjusts compressor gain — also known as the make
control knob up gain — so that the level of the outgoing
compressed signal can be matched to the incoming
uncompressed signal.
ATTACK control Adjusts the time it takes the compressor to respond
knob or the gate to open after an over threshold signal,
depending on which is selected.
3
4
