Surround panning

When the PRO1 is configured to operate in one of the surround panning modes, the
spatial diagram that appears in the GUI channel strip gives you a visual representation
of the sound image in relation to the speakers.

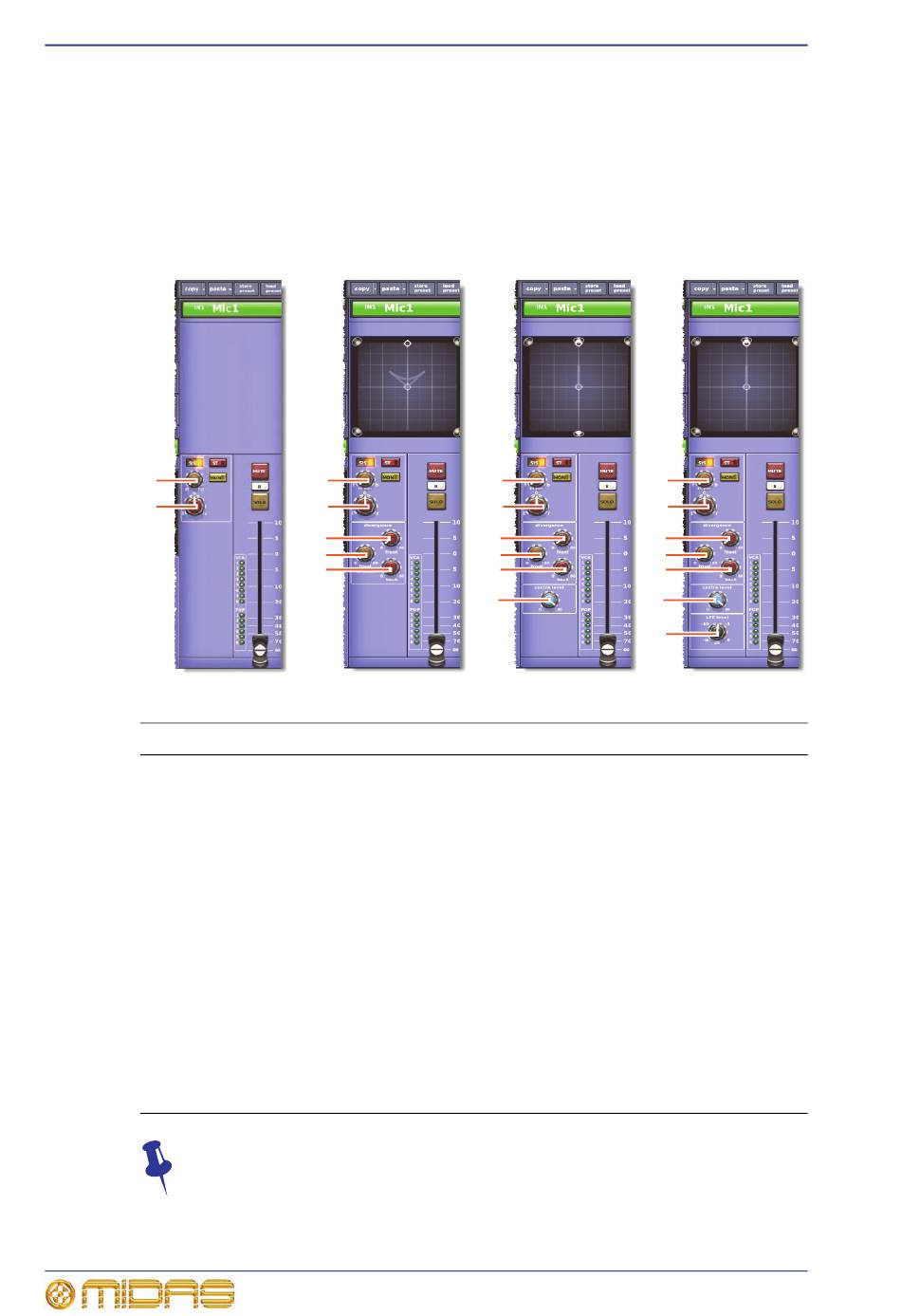

The following diagram shows the appearance of the GUI channel strip for each panning
mode, and describes the controls.
None
1
3
Item
1
2
3
4
5
6
7
8
Although the position cursor changes automatically according to the adjustment
of the surround panning controls, you can also adjust it on the GUI using drag.
Quad
2
3
4
5
6
Description Function
SIS™ image With SIS switched on, this adjusts the SIS™ image.
control knob With SIS switched off, this adjusts the mono level.
fb pan control Moves the position cursor in the spatial diagram
knob up/down. With SIS switched off, this adjusts the
mono level.
Left-centre-right Moves the position cursor in spatial diagram
(LCR) control knob left/right.
front control knob Adjusts the divergence of the front speakers.
front to back Adjusts the divergence of the front and rear
control knob speakers.
back control knob Adjusts the divergence of the rear speakers.
centre level Adjusts the divergence of the centre speaker.
control knob
LFE level control Adjusts the signal level of the LFE (usually a
knob subwoofer).
