Connecting up
Other connections

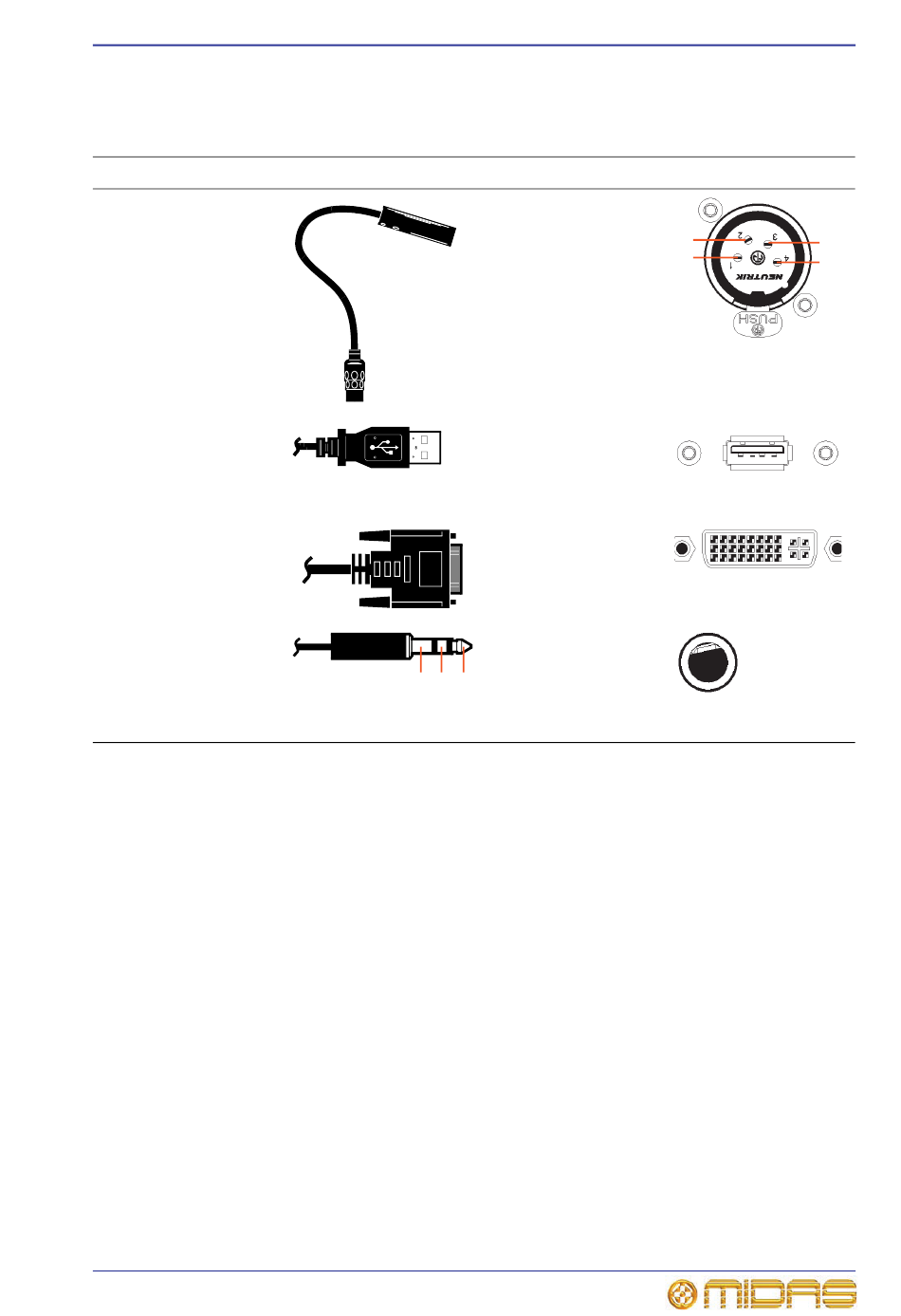

The section gives details of the other PRO1 Control Centre interconnections.
Description
4-pin, male XLR
chassis connector(s)
on the rear panel for
connecting 12V/5W
lamp(s)
USB type A socket
DVI screen output
socket for connecting
foot switch socket
for connecting a 1/4"
TRS Jack plug
The diagnostics socket is for service personnel use only.
PRO1 Live Audio System
Operator Manual
Example
3
2
1
Pinouts
Example of socket
1 = N/A
2 = N/A
3 = ground
4 = 12V
N/A
N/A
1 (tip) = foot
switch 1
2 (ring) = foot
switch 2
3 (sleeve) =
ground
29
2
3
1
4
