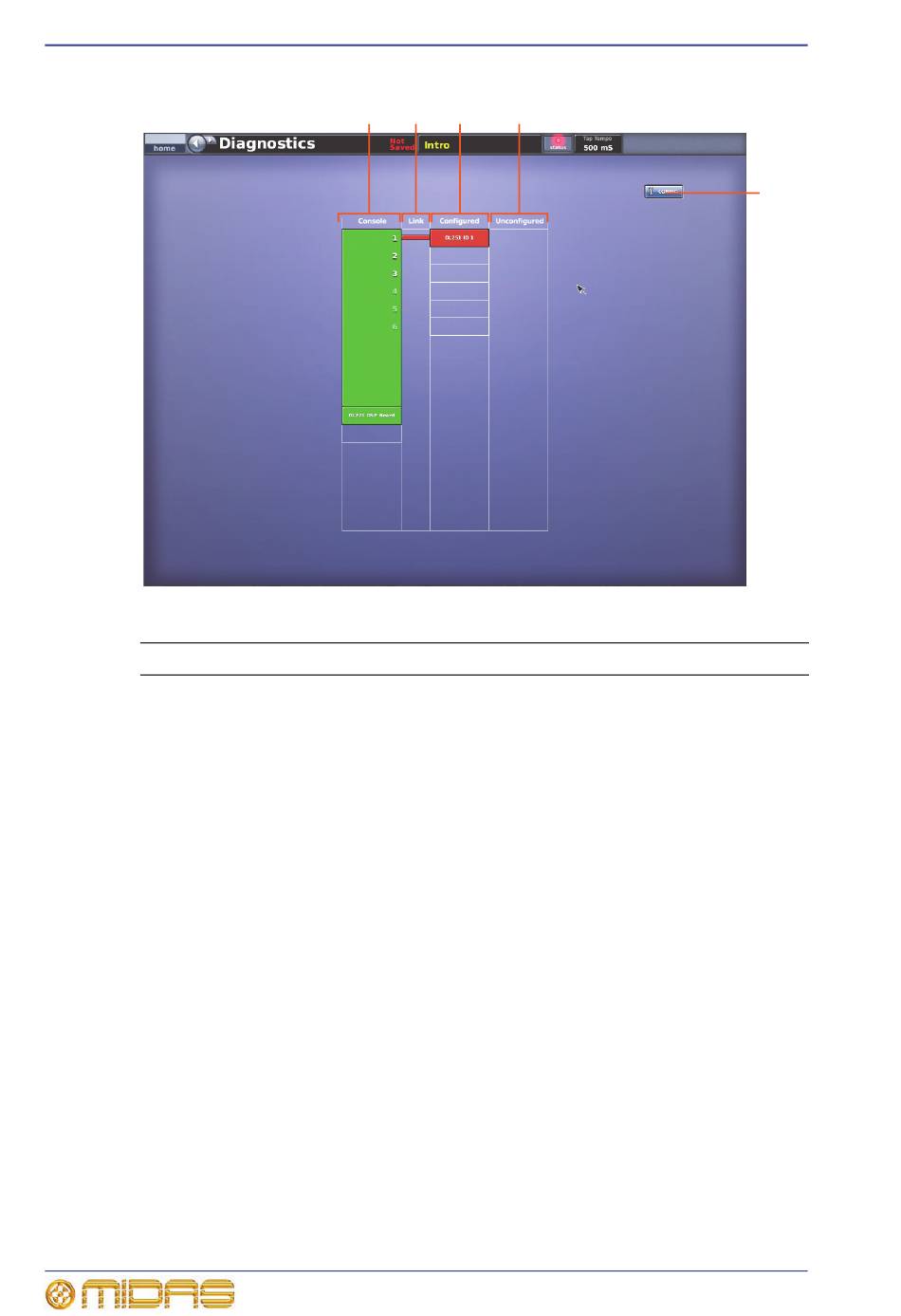

An example of the Diagnostics screen
Item
1
2
3
1
Element Description
Console column This column contains boxes that represent the
internal processes of the PRO1 Control Centre, such
as the control surface, master controller, DSP, Audio
IO and GUI. If any of these develop an error
condition the colour of the boxes will change to red.
Clicking the DL271 DSP Board box will open a
Diagnostics Inspector window (see "About the
Diagnostics Inspector window" on page 331).
Link column This column shows the health of the physical
connection of each AES50-compatible device and the
PRO1 Control Centre. Clicking a link will open a
Diagnostics Inspector window (see "About the
Diagnostics Inspector window" on page 331).
Configured This column shows any AES50 devices, such as a
column IDL251 Audio System I/O, that have been detected as
connected to the system and are also configured for
the system. Clicking one of these devices will open a
Diagnostics Inspector window (see "About the
Diagnostics Inspector window" on page 331).
