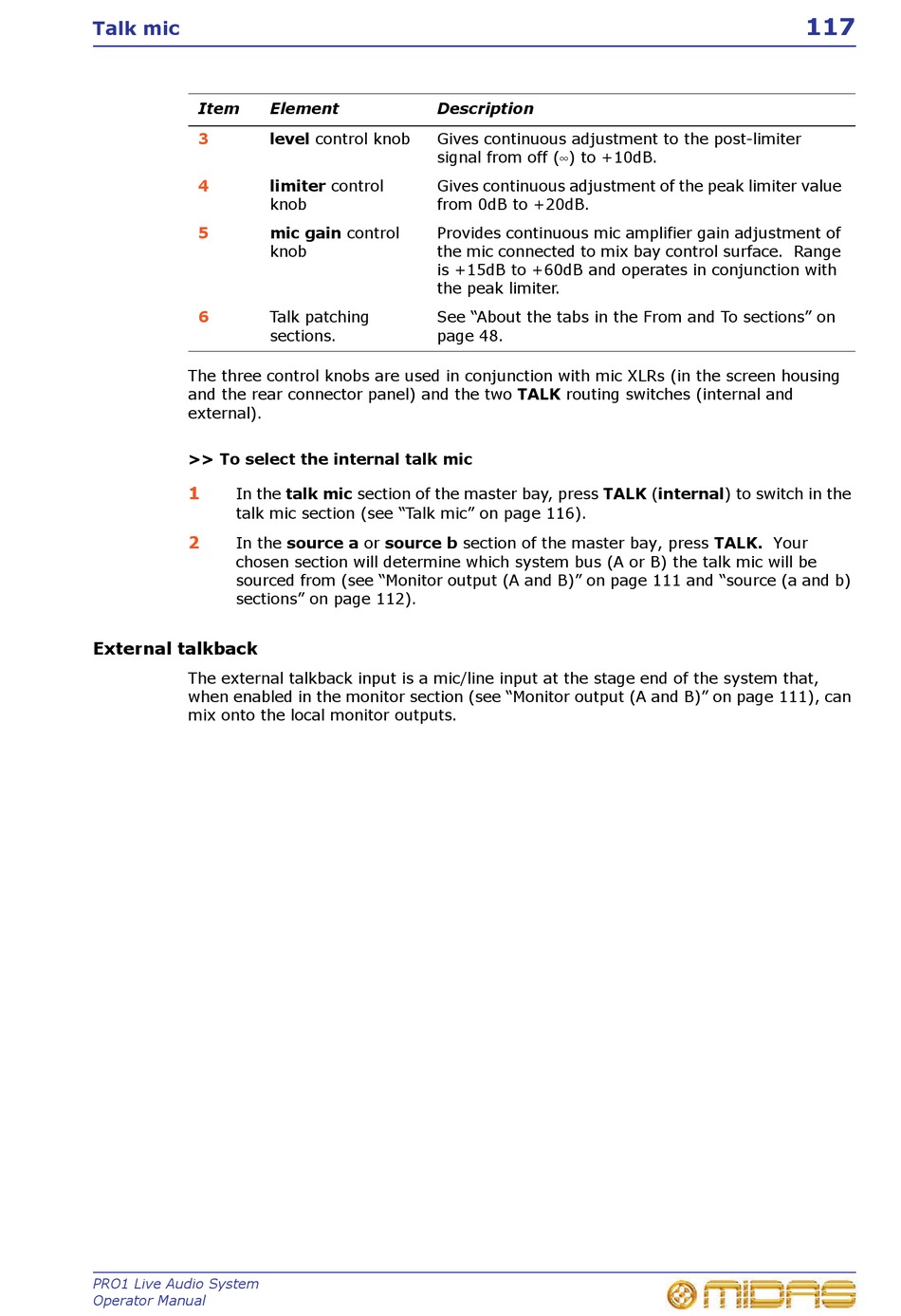

Talk mic
Item
3
4
5
6
The three control knobs are used in conjunction with mic XLRs (in the screen housing
and the rear connector panel) and the two TALK routing switches (internal and
external).
>> To select the internal talk mic
1
In the talk mic section of the master bay, press TALK (internal) to switch in the
talk mic section (see "Talk mic" on page 116).
2
In the source a or source b section of the master bay, press TALK. Your
chosen section will determine which system bus (A or B) the talk mic will be
sourced from (see "Monitor output (A and B)" on page 111 and "source (a and b)
sections" on page 112).
External talkback
The external talkback input is a mic/line input at the stage end of the system that,
when enabled in the monitor section (see "Monitor output (A and B)" on page 111), can
mix onto the local monitor outputs.
PRO1 Live Audio System
Operator Manual
Element Description
level control knob Gives continuous adjustment to the post-limiter
signal from off (4) to +10dB.
limiter control Gives continuous adjustment of the peak limiter value
knob from 0dB to +20dB.
mic gain control Provides continuous mic amplifier gain adjustment of
knob the mic connected to mix bay control surface. Range
is +15dB to +60dB and operates in conjunction with
the peak limiter.
Talk patching See "About the tabs in the From and To sections" on
sections. page 48.
117
