Surround panning
Ls

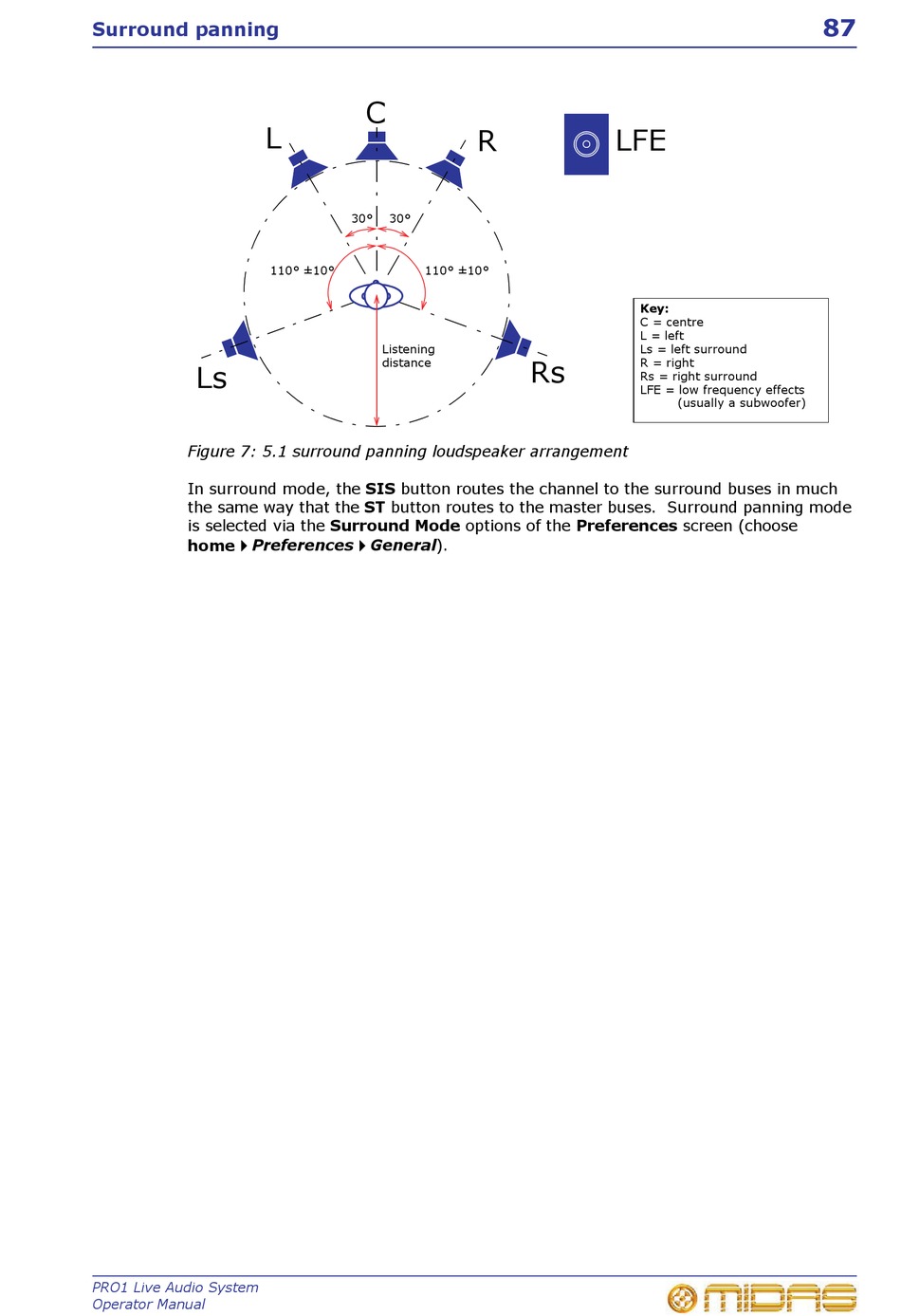

Figure 7: 5.1 surround panning loudspeaker arrangement
In surround mode, the SIS button routes the channel to the surround buses in much
the same way that the ST button routes to the master buses. Surround panning mode
is selected via the Surround Mode options of the Preferences screen (choose
home Preferences

PRO1 Live Audio System
Operator Manual
C
L
30° 30°
110° ±10° 110° ±10°
Listening
distance
General).

LFE
R
Key:
C = centre
L = left
Ls = left surround
Rs
R = right
Rs = right surround
LFE = low frequency effects
87
(usually a subwoofer)
