About the Patching screen
Device type
Mic Splitter
Line IO
Generic AES50
DN9696
DL351A
None-Unknown
Common device features

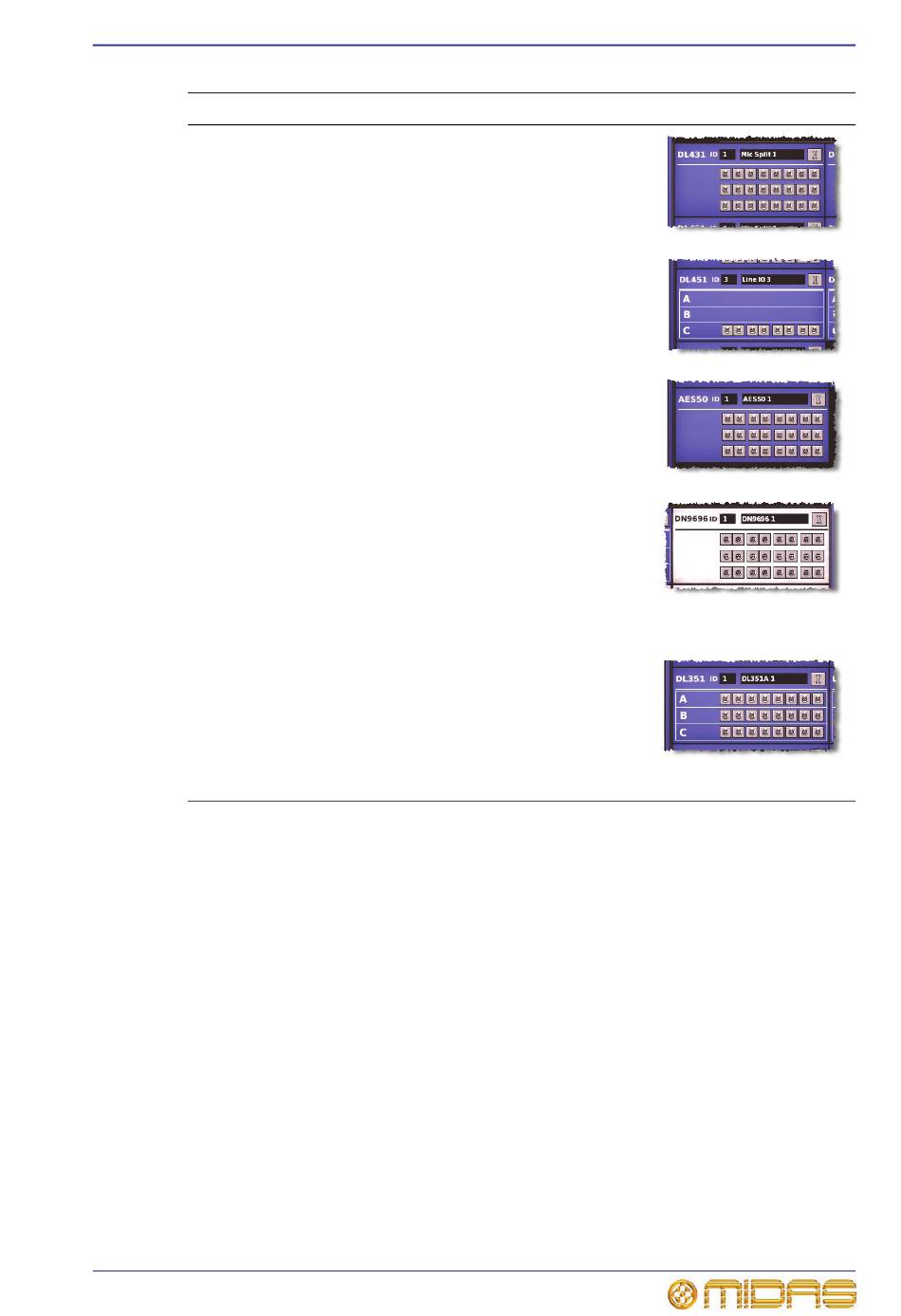

The device images have certain common features in their layout, as highlighted in the
following diagram, which shows one of the I/O devices.
PRO1 Live Audio System
Operator Manual
Description
DL431 Mic Splitter.
DL451 Modular I/O.
Audio-only device that is used to
represent the inputs and outputs of
any third party AES50 device.
Klark Teknik DN9696 Recorder. Use
up to four of these devices (with IDs
1 to 4) to represent the four AES50
ports for up to 96 channels of
recording/playback.
For more information, go to our
website www.klarkteknik.com.
One of four devices that comprise the
DL351 Modular I/O. The others are
"DL351B", "DL351C" and "Dl351D"
(not displayed). For more
information, go to our website
www.midasconsoles.com.
Selects no device.
55
Diagram
N/A
